Description

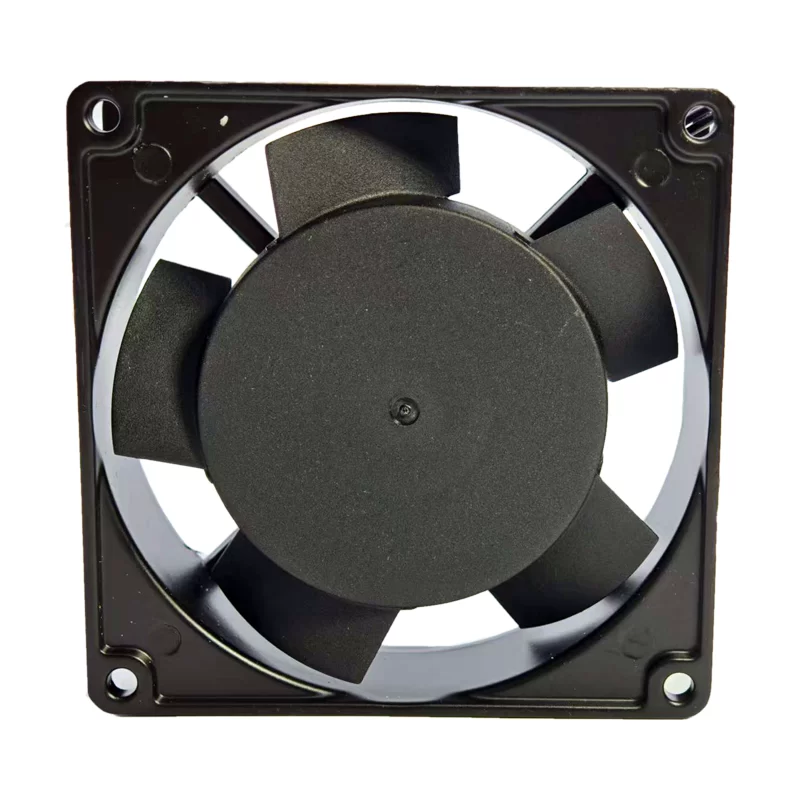

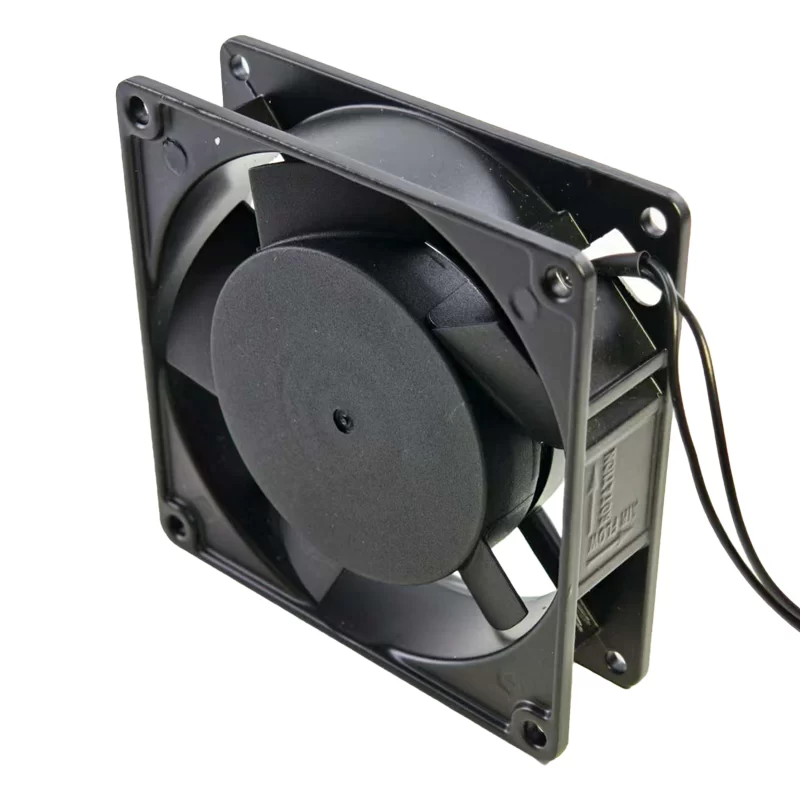

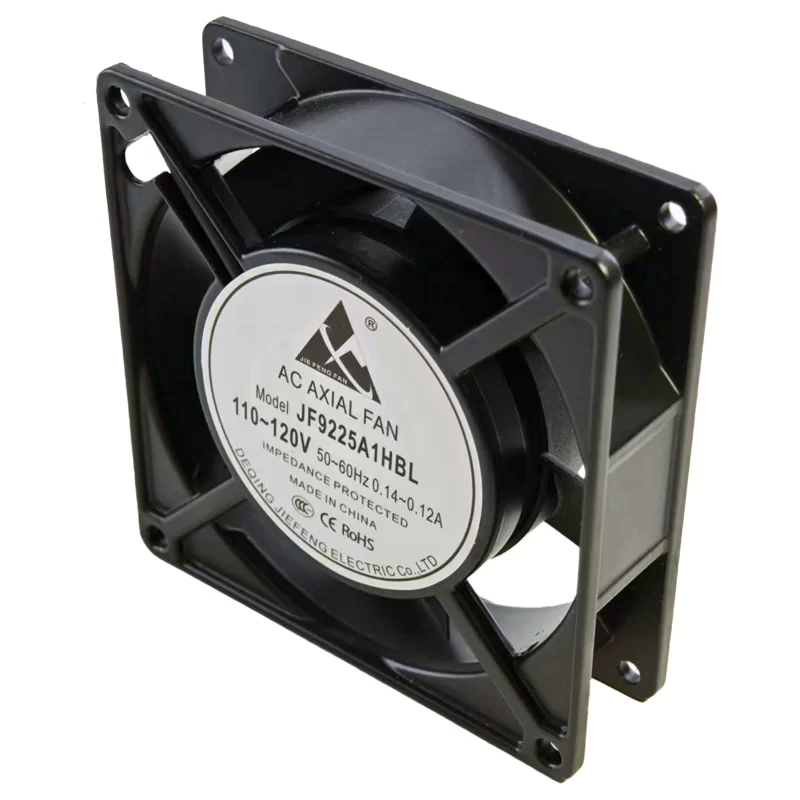

The JIEFENG JF9225A1HBL is a multi-frequency AC axial fan with dimensions of 92 x 92 x 25 mm. It is designed for applications where different power line frequencies are used, such as international products. Operating on 110-120V, the fan adjusts its performance based on the input frequency. It is built with durable plastic materials and connects via two wire leads.
JF9225A1HBL Fan Parameters
Manufacturer: JIEFENG
Model: JF9225A1HBL
Fan Type: AC Axial Fan
Dimensions: 92 x 92 x 25 mm
Rated Voltage: 110-120V
Rated Frequency: 50/60 Hz
Current Rating: 0.14/0.12 A
Power Consumption: 15.4/13.2 W
Airflow: 27/32 CFM (45.9/54.4 m³/h)
Static Pressure: 2.4/3.4 mmH₂O (23.5/33.3 Pa)
Speed: 2250/2650 RPM
Noise Level: 37/41 dB(A)
Termination: Two Wire Leads
Housing Material: Plastic
Impeller Material: Plastic
Weight: 270 g
Application: The JF9225A1HBL is suitable for cooling in a wide range of electronic equipment, power supplies, and HVAC systems.
