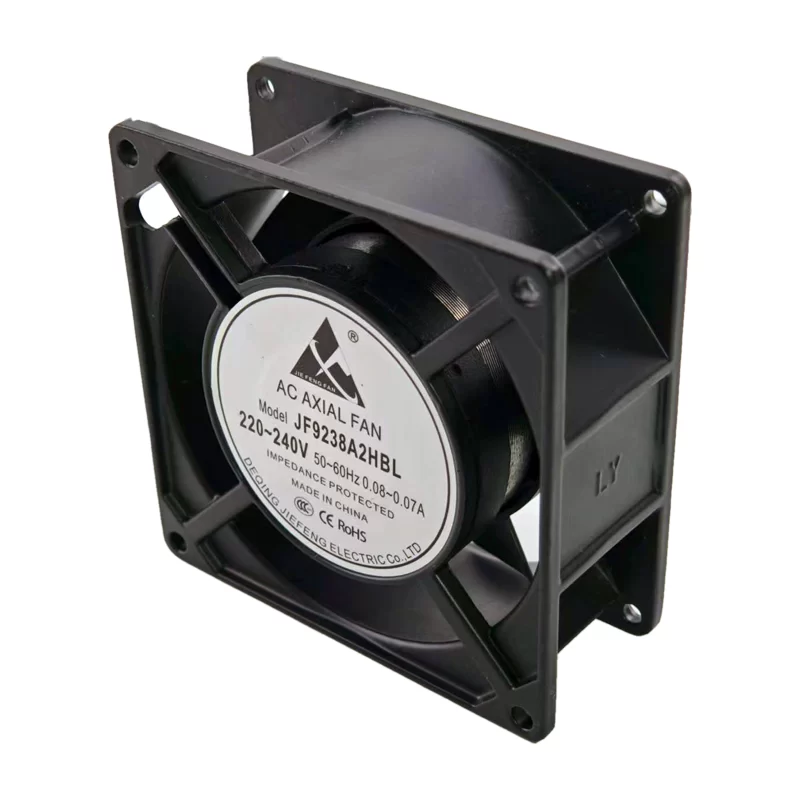

JF9238A2HBL JIEFENG 220-240V AC Axial Fan

Description

The JIEFENG JF9238A2HBL is an AC Axial Fan with dimensions of 92x92x38mm. It operates on 220-240VAC at both 50Hz and 60Hz. At 50Hz, it draws 0.08A and consumes 17.6W. At 60Hz, the current is 0.07A and power is 15.4W. The fan achieves a speed of 2500 RPM, providing an airflow of 50 CFM and a static pressure of 0.20 Inch-H2O. With a noise level of 38 dBA and a durable ball bearing system, this fan is a reliable solution for various cooling and ventilation applications.

JF9238A2HBL Fan Parameters
Model: JF9238A2HBL
Manufacturer: JIEFENG
Type: AC Axial Fan
Dimensions: 92 x 92 x 38 mm
Rated Voltage: 220-240 VAC
Frequency: 50/60 Hz
Current Draw: 0.08 A (50Hz), 0.07 A (60Hz)
Power Input: 17.6 W (50Hz), 15.4 W (60Hz)
Fan Speed: 2500 RPM
Airflow: 50 CFM
Static Pressure: 0.20 Inch-H2O
Noise Level: 38 dB(A)
Bearing Type: Ball Bearing
Termination: 2-wire lead
Application: Cabinets, Industrial equipment, Cooling enclosures
