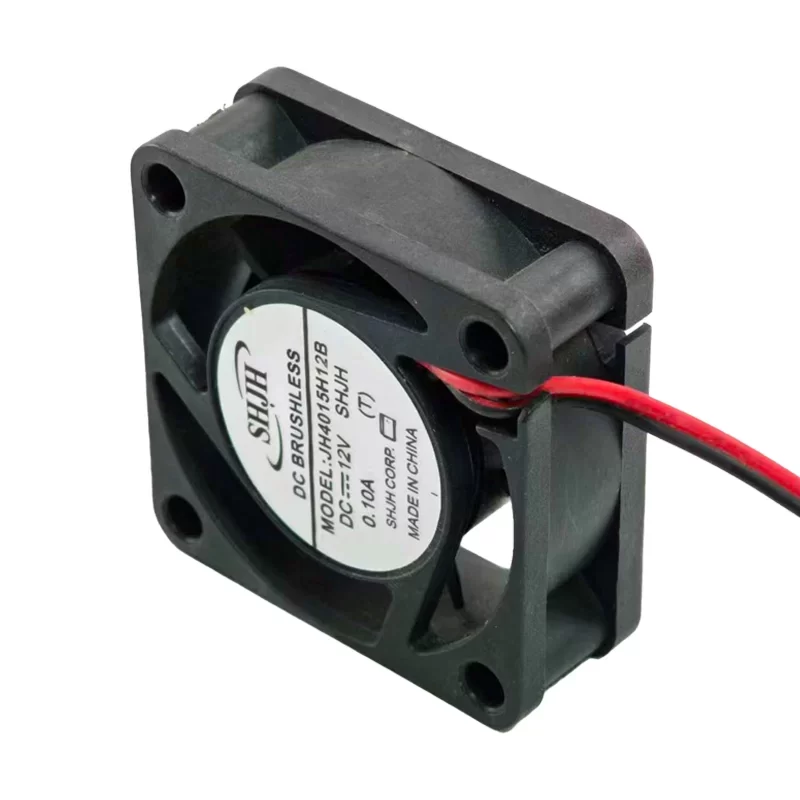

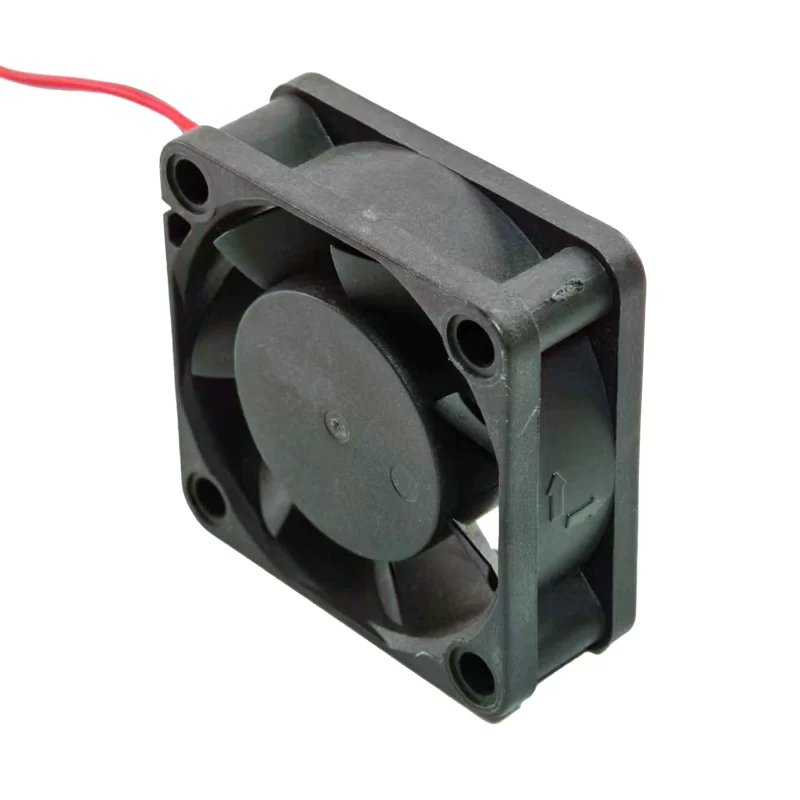

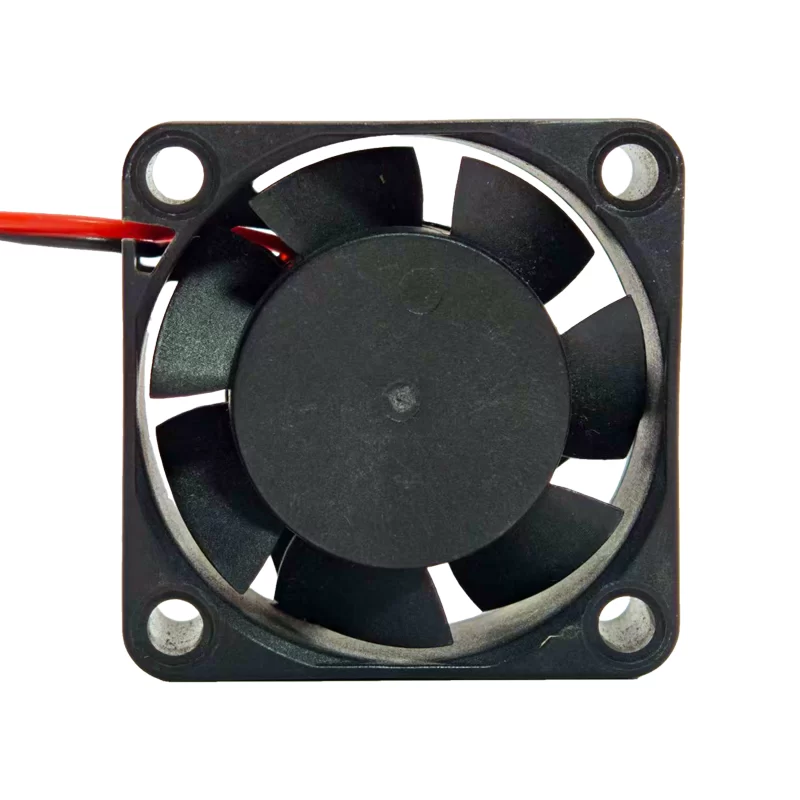

JH4015H12B SHJH 12V DC Axial Fan

Description

The SHJH JH4015H12B is a high-performance DC Axial Fan with dimensions of 40×40×15 mm. This fan operates on 12 VDC, drawing a rated current of 0.10 A for a power consumption of 1.2 W. It is equipped with 7 blades, constructed from UL94V−0 rated Plastic for both the frame and impeller, and uses a Dual Ball Bearing system. Based on its size and speed class, it typically provides an airflow of approximately 10.2 m3/h (6.0 CFM) and a static pressure of approximately 35.0 Pa (0.141 inH2O) at a speed of 7,500 RPM.

JH4015H12B Fan Parameters
Model: JH4015H12B
Manufacturer: SHJH
Fan Type: DC Axial Fan
Dimensions: 40×40×15 mm
Nominal Voltage: 12 VDC
Rated Current: 0.10 A
Rated Power: 1.2 W
Rated Speed: 7,500 RPM (Adjusted for 0.10 A draw)
Airflow: 10.2 m3/h (6.0 CFM) (Adjusted)
Static Pressure: 35.0 Pa (0.141 inH2O) (Adjusted)
Noise Level: 32.0 dB(A) (Adjusted)
Bearing System: Dual Ball Bearing
Termination: 2-Wire Leads
Number of blades: 7
Frame Material: Plastic (UL94V−0)
Impeller Material: Plastic (UL94V−0)

Application
The JH4015H12B is suitable for compact applications that require focused cooling while maintaining cost-efficiency and meeting flammability standards. Typical uses include cooling micro-servers, network routers and modems, small electronic enclosures, and integrated systems in consumer electronics and industrial devices.
