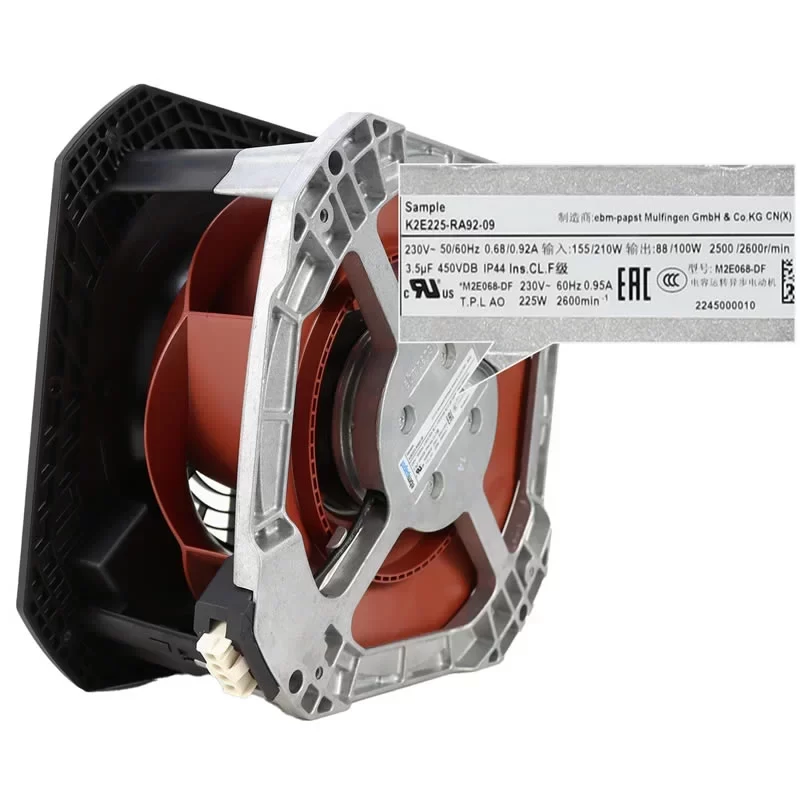

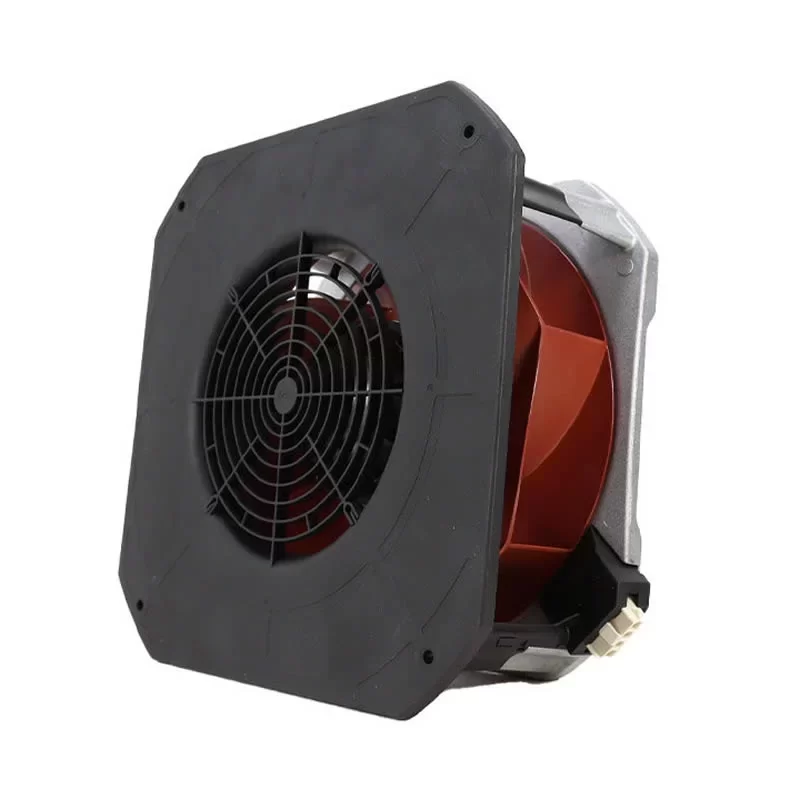

K2E225-RA92-09 ebmpapst 230V 225mm AC Centrifugal Fan

Description

The ebmpapst K2E225-RA92-09 is a high-performance 225 mm AC centrifugal fan assembly featuring a sophisticated backward-curved design integrated with a protective housing and guard grille. Powered by the M2E068-DF external rotor motor, this unit is optimized for 230 VAC single-phase operation, requiring a 3.5 µF capacitor to achieve a peak power consumption of up to 225 W at 60 Hz. The 7-blade impeller, housing, and guard grille are all constructed from durable glass-fiber reinforced PA plastic, providing a lightweight yet robust airflow solution with an IP44 protection rating. With a static efficiency of 42.5% and conforming to ErP N62 efficiency grades, it delivers precise performance for demanding ventilation tasks. The motor features a black-painted rotor surface, Class F insulation, and an internally connected thermal overload protector, ensuring reliable S1 continuous duty in air conditioning and industrial cooling systems across ambient temperatures up to 70 °C.

K2E225-RA92-09 Fan Parameters
Model Number: K2E225-RA92-09
Motor Number: M2E068-DF
Manufacturer: ebmpapst
Type: AC Centrifugal Fan (Backward-curved)
Size: 225 mm
Weight: 3.3 kg
Bearing Type: Ball bearing
Nominal Voltage: 230 VAC
Voltage Range: 220 – 240 VAC
Phase: 1~
Frequency: 50 / 60 Hz
Power Consumption: 155 W (@ 50 Hz) / 210 W (@ 60 Hz) / 225 W (@ 60 Hz UL)
Nominal Current: 0.68 A (@ 50 Hz) / 0.92 A (@ 60 Hz) / 0.95 A (@ 60 Hz UL)
Starting Current: 1.25 A (@ 50 Hz) / 1.2 A (@ 60 Hz)
Capacitor: 3.5 µF / 450 VDB (S0 Safety Class)
Speed: 2500 RPM (@ 50 Hz) / 2600 RPM (@ 60 Hz)
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Optimum Air Flow: 705 m³/h
Optimum Pressure Increase: 320 Pa
Overall Efficiency: ηes 42.5% / Efficiency Grade N62
Motor Design: External rotor motor, painted black
Motor Protection: Thermal overload protector (TOP) internally connected
Insulation Class: Class F
Moisture/Env. Protection: H1
Electrical Hookup: With plug / Variable cable
Touch Current: < 0.75 mA
Number of Blades: 7
Direction of Rotation: Clockwise, viewed toward rotor
Airflow Direction: Radial
Impeller Material: PA plastic
Housing Material: PA plastic
Guard Grille Material: PA plastic
Installation Position: Shaft horizontal or rotor on bottom; rotor on top on request
Condensation Drainage: Rotor-side holes
Mode: S1
Degree of Protection: IP44
Protection Class: I
Operating Temperature: -25 – +70 °C (@ 50 Hz) / -25 – +65 °C (@ 60 Hz)
Standard Compliance: EN 60335-1, CE, UL 2111
Approval Agency: VDE, UL 1004-3, CSA C22.2 No. 77

Application
The ebmpapst K2E225-RA92-09 centrifugal fan is primarily utilized in air conditioning units, high-performance air purifiers, heat recovery ventilation (HRV) systems, and industrial cabinet cooling.
