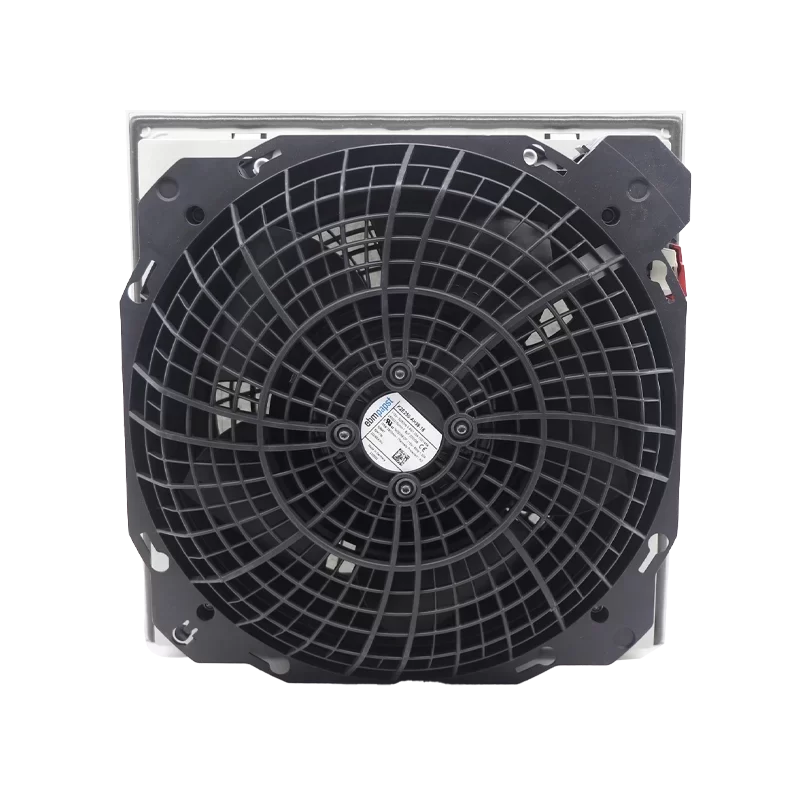

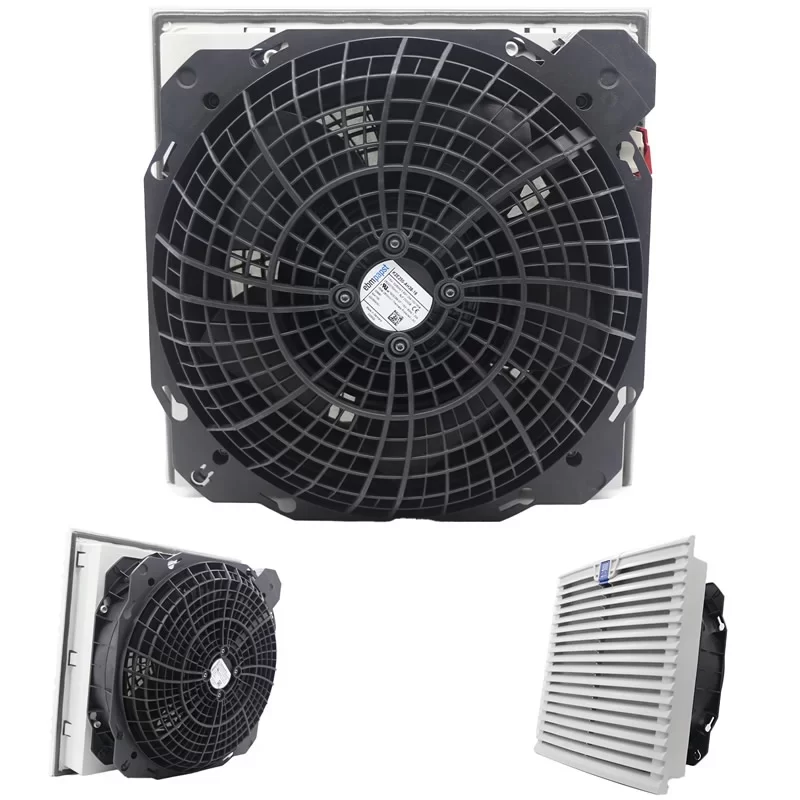

K2E250-AH38-16 ebmpapst SK3244.110 Rittal 115V Filter Fan

Description

The ebmpapst K2E250-AH38-16 AC Diagonal Flow Fan operates at 115 V AC and is the main cooling component in the Rittal SK 3244.110 Filter Fan Unit, measuring approximately 250 mm in size. The fan is a single-phase (1~) unit with a ball bearing system, providing a high unimpeded airflow of 700 m³/h at 50 Hz and 770 m³/h at 60 Hz. Its key electrical specifications include a rated power of 100 W (50 Hz) and 145 W (60 Hz), and a current draw of 0.9 A (50 Hz) and 1.25 A (60 Hz). With an IP44 protection rating and a wide operating temperature range from −30 °C to 55 °C, it is ideal for industrial enclosure climate control and cooling of electronic equipment to maintain system stability.

K2E250-AH38-16 Fan Parameters
Model: K2E250-AH38-16
Manufacturer: ebmpapst
Type: Diagonal Flow Fan
Motor: M2E068-DF
Nominal Voltage: 115 V AC
Frequency: 50/60 Hz
Phase: 1~
Speed: 2600 RPM (50 Hz) / 2750 RPM (60 Hz)
Power Consumption: 100 W (50 Hz) / 145 W (60 Hz)
Current Draw: 0.9 A (50 Hz) / 1.25 A (60 Hz)
Starting Current: 1.78 A (50 Hz) / 1.7 A (60 Hz)
Airflow (Unimpeded): 700 m³/h (50 Hz) / 770 m³/h (60 Hz)
Noise Level: 65 dB(A) (50 Hz) / 66 dB(A) (60 Hz)
Protection Class: IP44
Insulation Class: B
Motor Protection: Thermal Overload Protector (TOP) internally connected
Bearing Type: Ball Bearing
Rotor Surface: Unpainted
Impeller Material: PA plastic
Number of Blades: 5
Direction of Rotation: Clockwise, viewed toward rotor
Capacitor: 8μF
Capacitor Voltage: 250 VDB
Weight: 3.1 kg
Maximum Ambient Temperature: 55 °C
Minimum Ambient Temperature: −30 °C

Application
The K2E250-AH38-16 fan is primarily designed for high-performance enclosure climate control and industrial electronics cooling. It is a crucial OEM component, most notably used within the Rittal SK 3244.110 TopTherm Filter Fan Unit to provide consistent, pressure-stable airflow for cooling switchgear cabinets, control panels, and automation systems.
