Description

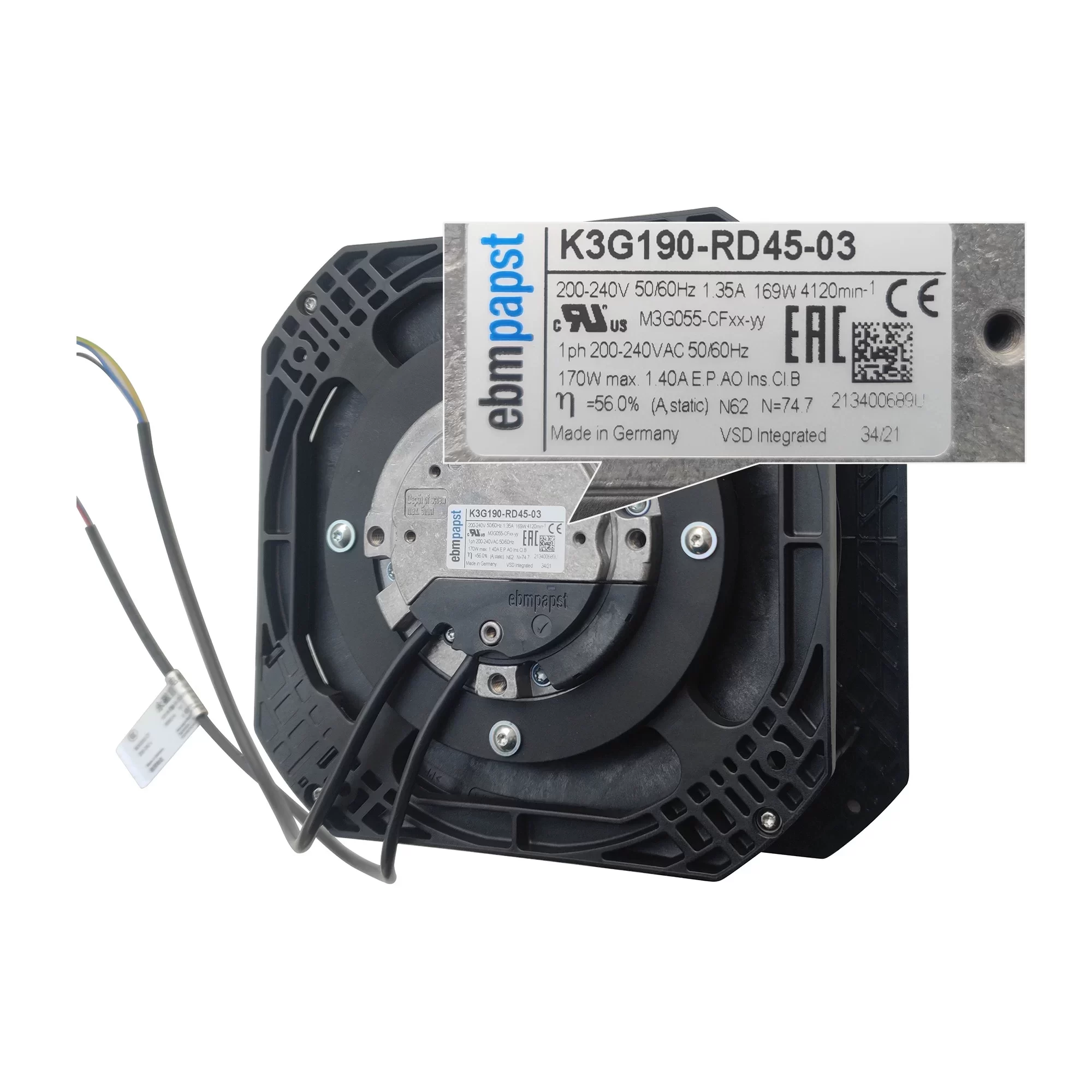

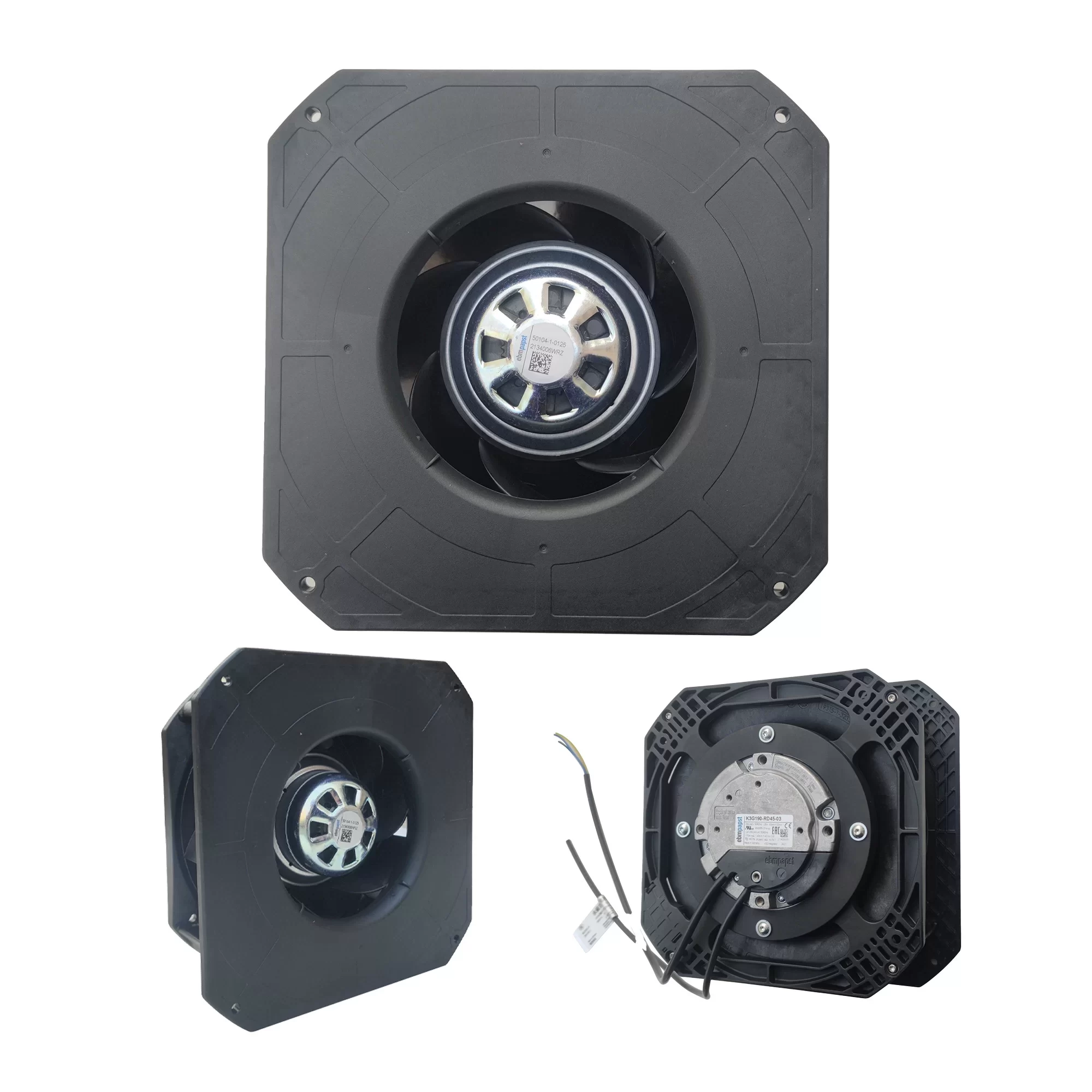

The ebmpapst K3G190-RD45-03 is a high-efficiency EC centrifugal fan, featuring the M3G055-CF motor and measuring 190mm in diameter with a 71mm depth. Operating at 230VAC within a 200-240V range across both 50Hz and 60Hz frequencies, it consumes 169W of power and draws 1.35A of current. This fan delivers an airflow of 565m³/h (333CFM) and a static pressure of 524Pa. It operates at a speed of 4120RPM. Equipped with 7 PA plastic blades and durable ball bearings, it boasts an IP54 ingress protection rating. It is suitable for reliable operation within an ambient temperature range of -25 to 60°C. This model is certified by CCC and EAC.
K3G190-RD45-03 Fan Parameters
Manufacturer: ebmpapst
Model: K3G190-RD45-03
Motor: M3G055-CF
Fan Type: EC Centrifugal Fan
Dimensions: 190 x 71 mm
Rated Voltage: 230 VAC
Operating Voltage Range: 200 ~ 240 VAC
Frequency: 50 Hz / 60 Hz
Current Rating: 1.35 A
Power Consumption: 169 W
Airflow: 565 m³/h (333 CFM)
Static Pressure: 524 Pa
Speed: 4120 RPM
Bearing Type: Ball Bearing
Number of Blades: 7

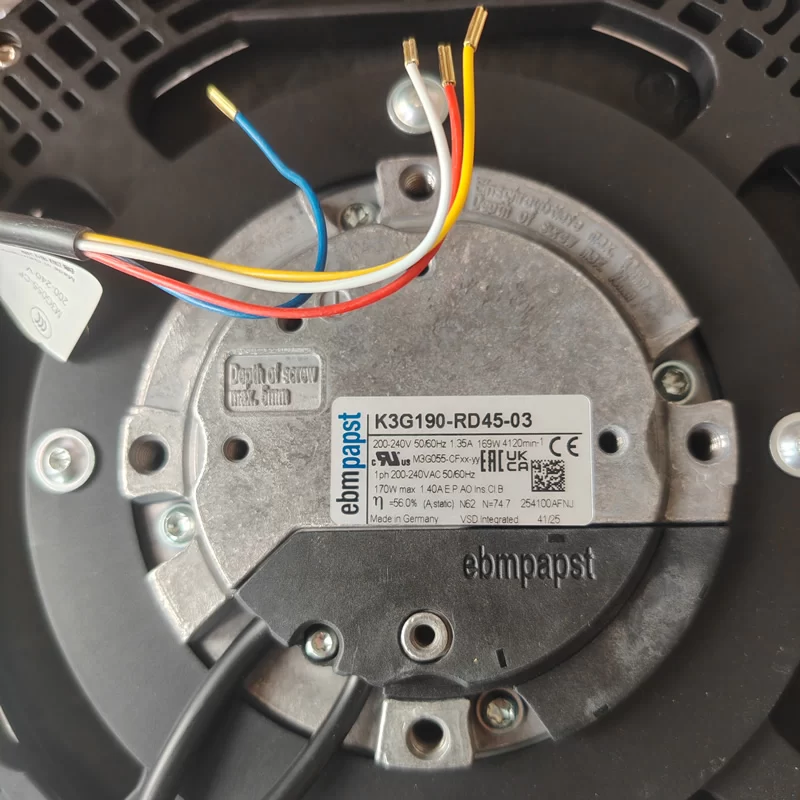

Termination: Wire Leads
Operating Temperature: -25 ~ 60°C
Lifetime @ Temp: 55,000 Hours (at 40°C)
Blade Material: PA plastic
IP Rating: IP54
Weight: 1.8 kg
Approval Agency: CCC, EAC
Application: This ebmpapst EC centrifugal fan is suitable for demanding ventilation and air conditioning systems, industrial equipment, and applications requiring high static pressure and energy-efficient airflow in a compact design.
