Description

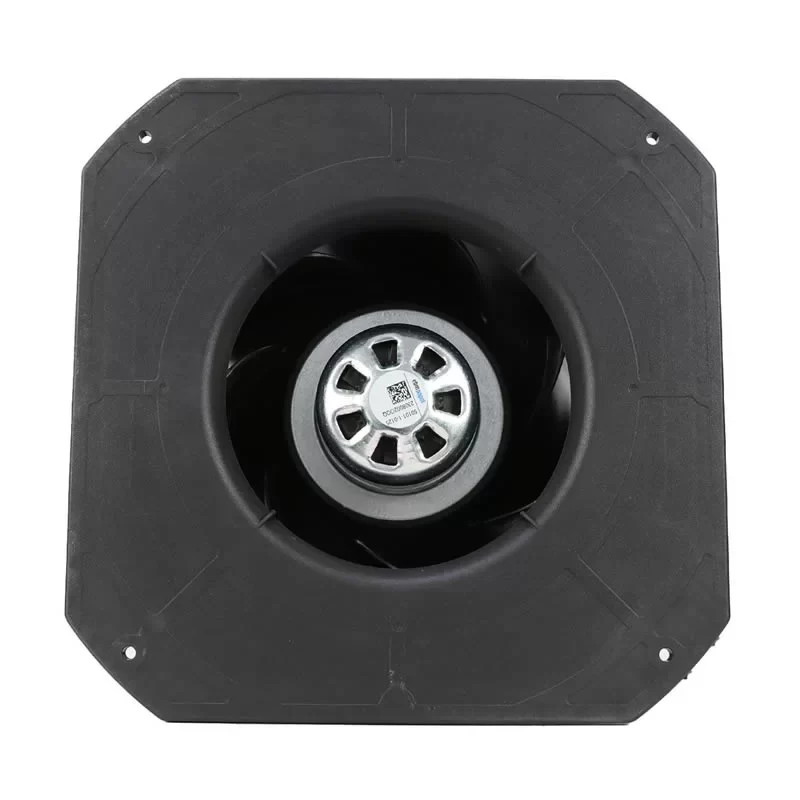

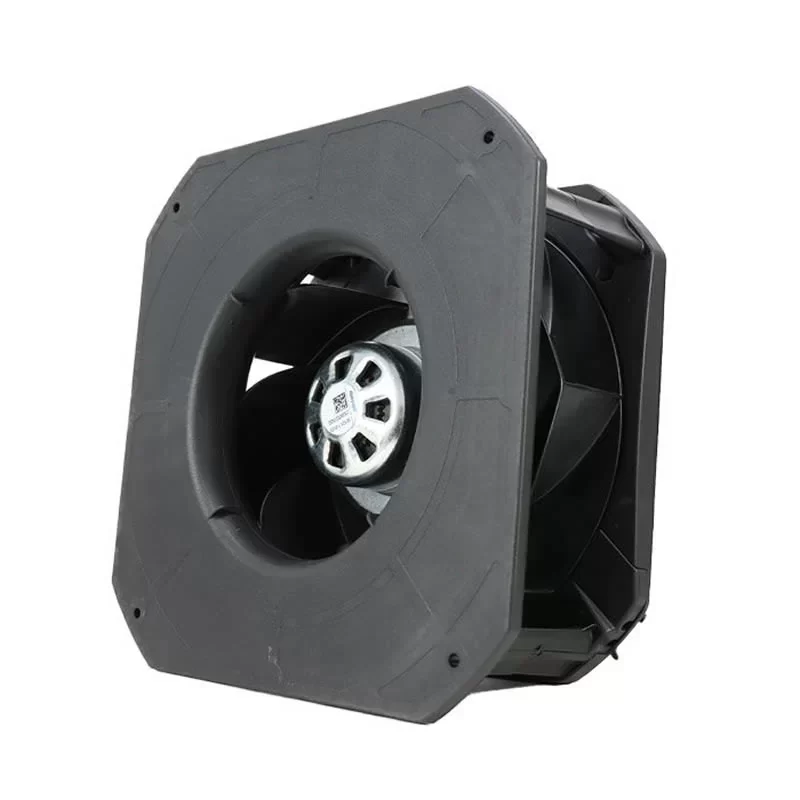

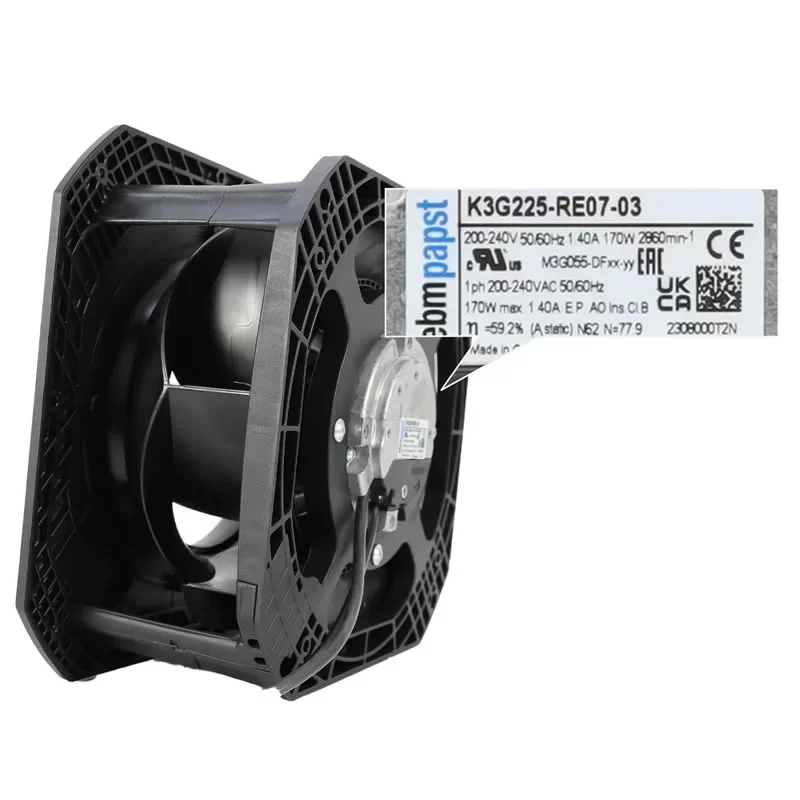

The ebmpapst K3G225-RE07-03 (Ident No. M3G055-DF) is a high-performance 230VAC EC Centrifugal Fan with dimensions of 270 x 270 x 131 mm, featuring a RadiCal backward-curved impeller with housing specifically engineered for mission-critical cooling in Industrial Frequency Converters and high-precision HVAC systems. Driven by a high-efficiency EC external rotor motor with integrated electronics and maintenance-free ball bearings, this 2.5 kg unit operates on a 200 – 240 VAC supply delivering a Max. Power Consumption of 170 W and a Max. Current Draw of 1.4 A at a rated speed of 2860 RPM. This High-performance unit achieves a Max. Air Flow of 741.6 CFM (1260.0 m³/h / 21.00 m³/min) and a Max. Static Pressure of 61.18 mmH₂O (600.0 Pa / 2.41 inAq). Featuring intelligent speed regulation via 0-10V/PWM control input, Soft start, and Power limiter, this 7-blade unit with PA plastic construction is optimized for industrial VFD systems requiring advanced motor protection and massive airflow in a passivated thick-film rotor design at the end.
K3G225-RE07-03 Fan Parameters
Model Number: K3G225-RE07-03
Motor Model: M3G055-DF
Manufacturer: ebmpapst
Type: EC Centrifugal Fan (RadiCal, backward-curved, with housing)
Impeller Size: 225 mm
Dimensions: 270 x 270 x 131 mm
Weight: 2.5 kg
Bearing Type: Ball bearing
Phase: 1~
Nominal Voltage: 230 VAC
Nominal Voltage Range: 200 – 240 VAC
Frequency: 50 / 60 Hz
Method of Obtaining Data: ml (Max. load)
Max. Current Draw: 1.4 A
Max. Power Consumption: 170 W
Rated Speed: 2860 RPM
Max. Air Flow: 741.6 CFM (1260.0 m³/h / 21.00 m³/min)
Max. Static Pressure: 61.18 mmH₂O (600.0 Pa / 2.41 inAq)
Working Air Flow: 1260.0 m³/h
Static Pressure Increase: 600.0 Pa
Efficiency Grade N: 77.9
Overall Efficiency ηes: 59.2%
Control Interface: Control input 0-10 VDC / PWM (Input resistance > 100 kOhm)
Output Signal: Tach output (1000 pulses/100 revolutions); Output 10 VDC (max. 10 mA)
Technical Features: Soft start; Power limiter; Overvoltage detection; Motor current limitation; Line undervoltage detection
Harmonic Current Compliance: According to DIN EN 61000-3-2
Touch Current (IEC 60990): <= 3.5 mA
Motor Protection: Electronic motor protection; Thermal overload protection for electronics/motor
Insulation Class: Class B
Degree of Protection: IP54
Protection Class: I (if protective earth is connected)
Humidity Class: F3-1
Impeller Material: PA plastic
Housing Material: PA plastic
Rotor Surface: Thick-film passivated
Direction of Rotation: Clockwise (viewed toward rotor)
Installation Position: Any
Mode: S1
Ambient Temperature (Max.): 60 °C
Min. Operating Temperature: -25 °C
Life Expectancy L10: 55,000 h (at 40 °C)
Standard Compliance: EN 60335-1; CE
Approval: UL 1004-7 + 60730-1; EAC; CSA C22.2 No. 77; CCC
Application
The ebmpapst K3G225-RE07-03 centrifugal module is the primary cooling component for industrial frequency converters and high-efficiency HVAC units requiring RadiCal aerodynamic performance and integrated EC electronic protection.
