Description

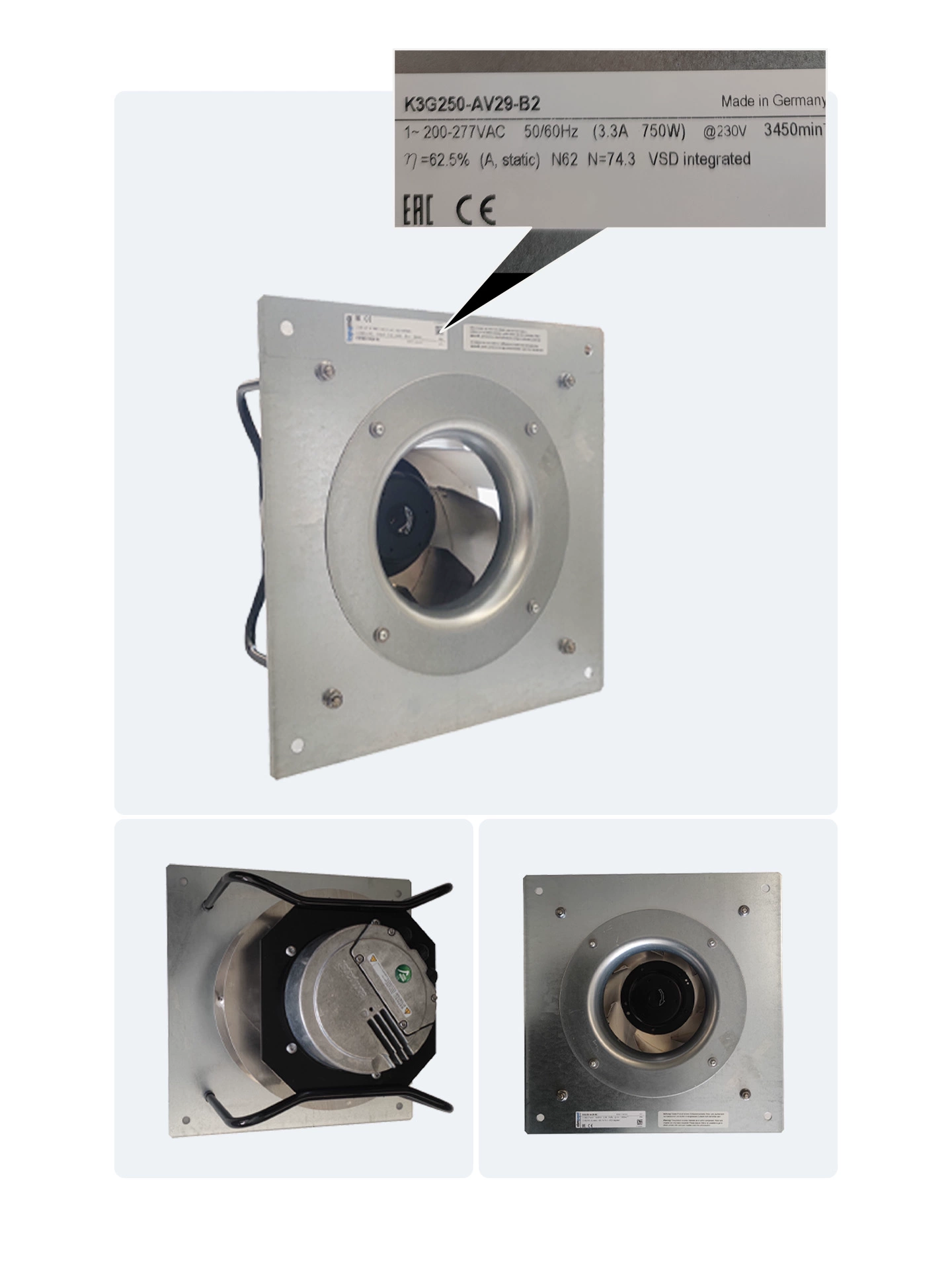

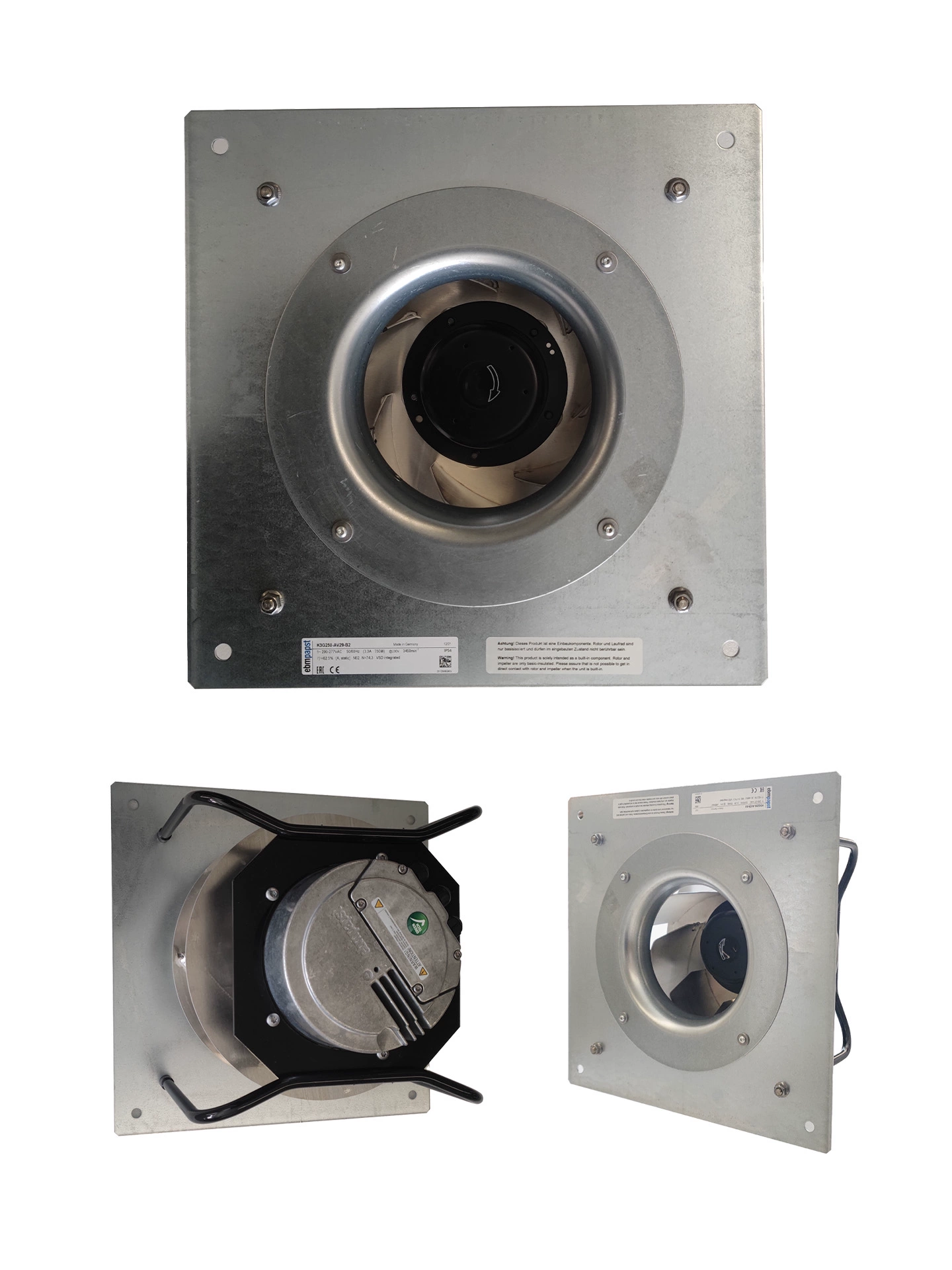

The ebmpapst K3G250-AV29-B2 is a powerful and energy-efficient 230V AC EC centrifugal fan with backward-curved blades, functioning as a motorized impeller. With an impeller diameter of 250mm, it features a nominal voltage range of 200V to 277V AC and operates at 50/60Hz. At its maximum load, it consumes 750W of power, drawing 3.3A of current, and spins at 3450 RPM. This fan delivers a substantial airflow of 1755 m³/h and operates with a noise level around 63 dBA. It is rated IP54 for protection, features robust ball bearings, and uses an aluminum impeller, making it highly suitable for demanding applications in air conditioning units, wind power inverters, and general industrial ventilation requiring precise speed control and high efficiency.
K3G250-AV29-B2 Fan Parameters
Model Number: K3G250-AV29-B2
Manufacturer: ebmpapst
Type: EC Centrifugal Fan / Motorized Impeller (Backward-Curved, Single Inlet)
Impeller Diameter: 250mm
Rated Voltage: 230 VAC
Nominal Voltage Range: 200 – 277 VAC
Frequency: 50 Hz / 60 Hz
Rated Current: 3.3A
Rated Power: 750W
Speed: 3450 RPM
Airflow (Free Air): 1755 m³/h
Static Pressure: Up to 889 Pa
Noise Level: 63 dBA
IP Rating: IP54
Connector: Terminal box
Bearing Type: Ball Bearing
Impeller Material: Sheet aluminum
Rotor Surface: Painted black
Operating Temperature: -25°C to +40°C
Weight: 10.1 kg
Features: EC motor technology, integrated electronics, 0-10 VDC / PWM control input, RS-485 MODBUS-RTU, Soft start, Motor current limitation, Alarm relay, Thermal Overload Protector
Approvals/Certifications: CE, UKCA, CCC, EAC
Key Application: Air conditioning units, Wind power inverters, Industrial ventilation
