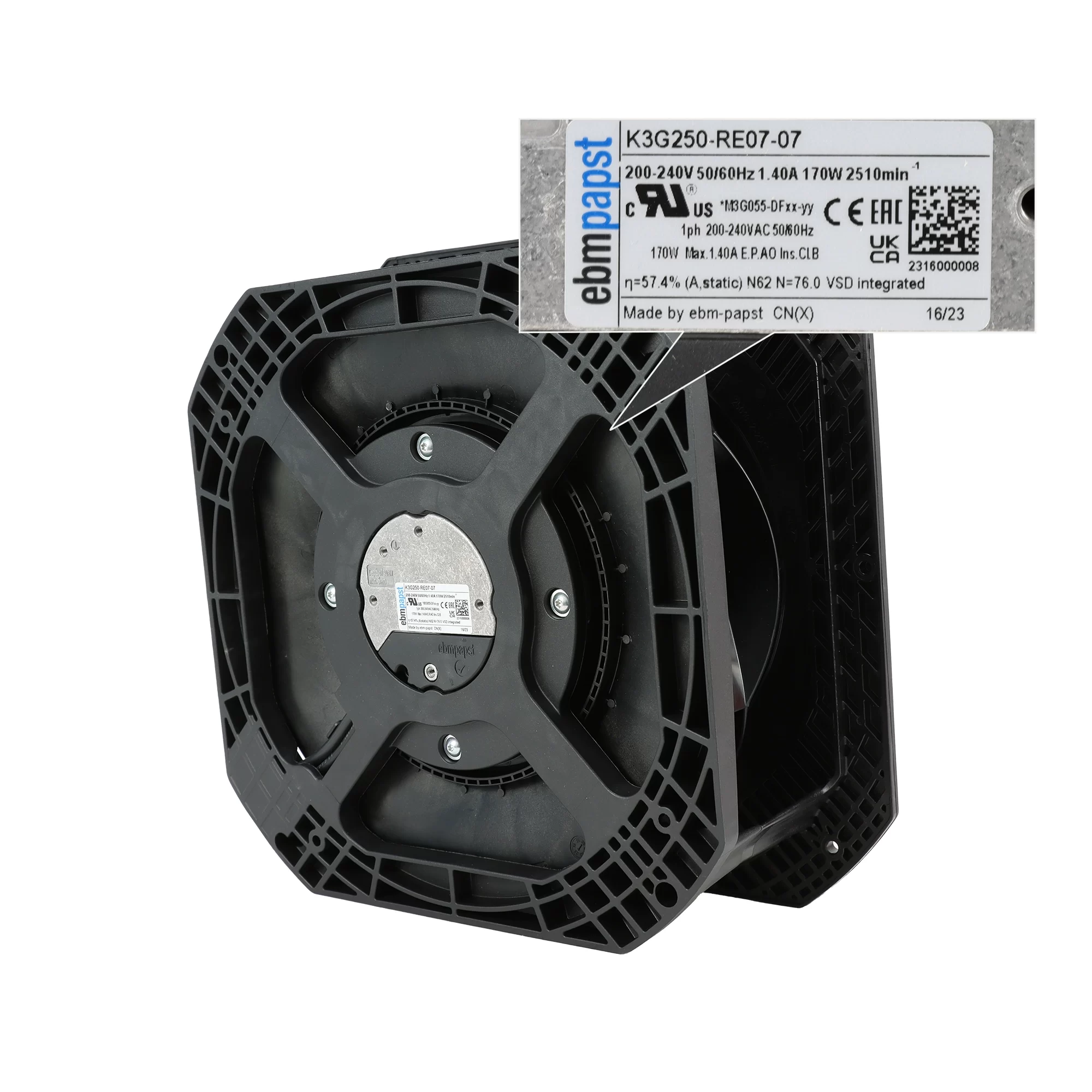

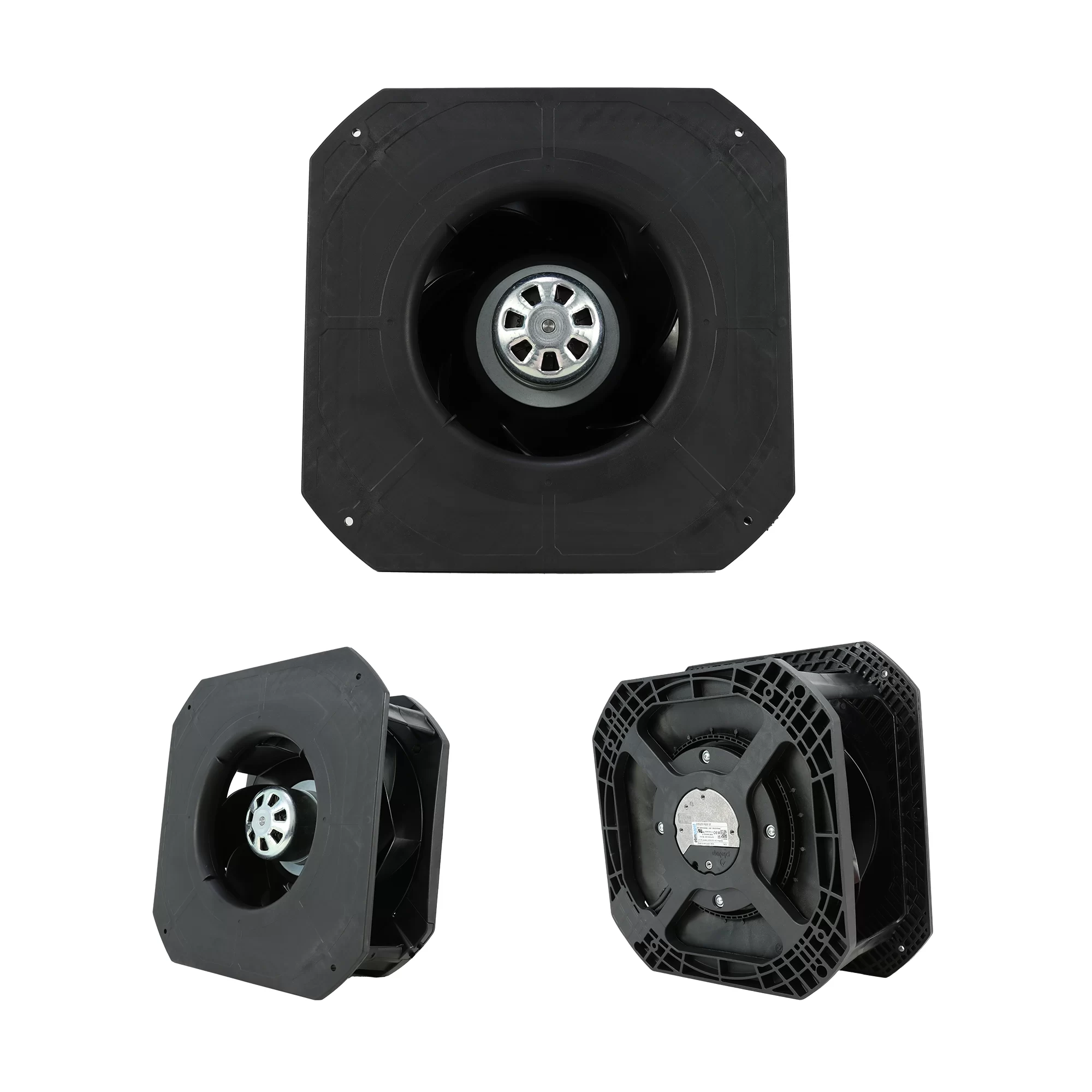

K3G250-RE07-07 ebmpapst EC Centrifugal Fan

Description

The ebmpapst K3G250-RE07-07 is an EC Centrifugal Fan with a 250mm impeller diameter. It operates at a Rated Voltage of 230 VAC within an Operating Voltage Range of 200 to 240 VAC at 50/60 Hz. This fan has an input power of 170 W and draws 1.40 A of current, reaching a speed of 2510 RPM. It delivers a substantial airflow of 1430 m³/h. Featuring a robust ball bearing system and an IP54 ingress protection rating, it is constructed with a PA plastic impeller and galvanized sheet steel housing. This fan is commonly used in various air conditioning and ventilation systems where efficient and compact air movement is crucial, such as ventilation units and control cabinet cooling.

K3G250-RE07-07 Fan Parameters
Model: K3G250-RE07-07
Manufacturer: ebmpapst
Type: EC Centrifugal Fan
Impeller Diameter: 250 mm
Rated Voltage: 230 VAC
Operating Voltage Range: 200 to 240 VAC
Frequency: 50/60 Hz
Phase: 1~
Speed: 2510 RPM
Power Input: 170 W
Current Draw: 1.40 A
Airflow: 1430 m³/h
Static Pressure: 500 Pa
Bearing Type: Ball Bearing
Protection Level: IP54
Insulation Class: B
Operating Temperature: -20 to 60°C
Storage Temperature: -40 to 80°C
Weight: 3.5 kg
Impeller Material: PA plastic
Housing Material: Galvanized sheet steel
Motor: M3G055-DF
Rotor Surface: Painted black
Electrical Hookup: Terminal box
Motor Protection: Electronic
Application: Ventilation units, air conditioning systems, control cabinet cooling.
