Description

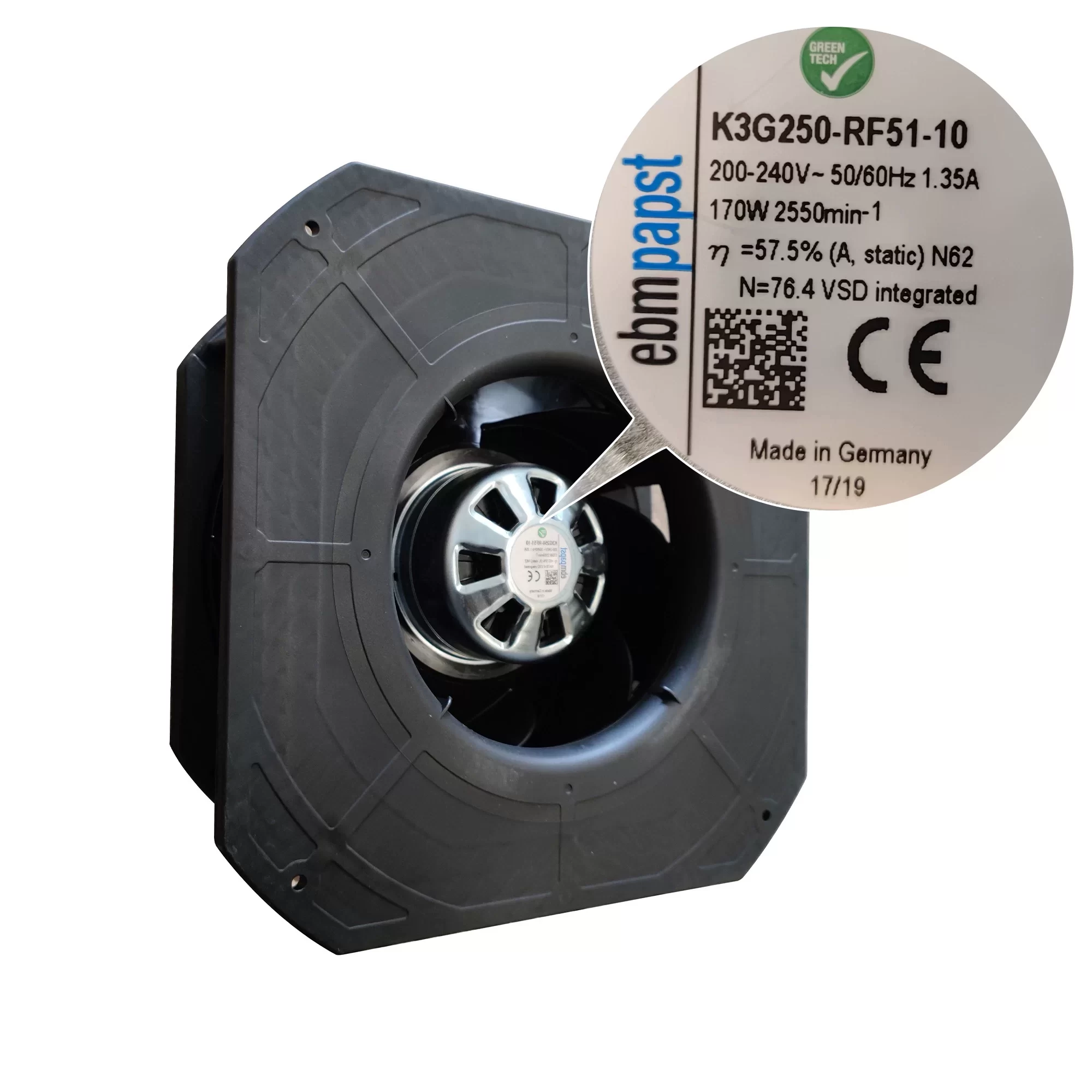

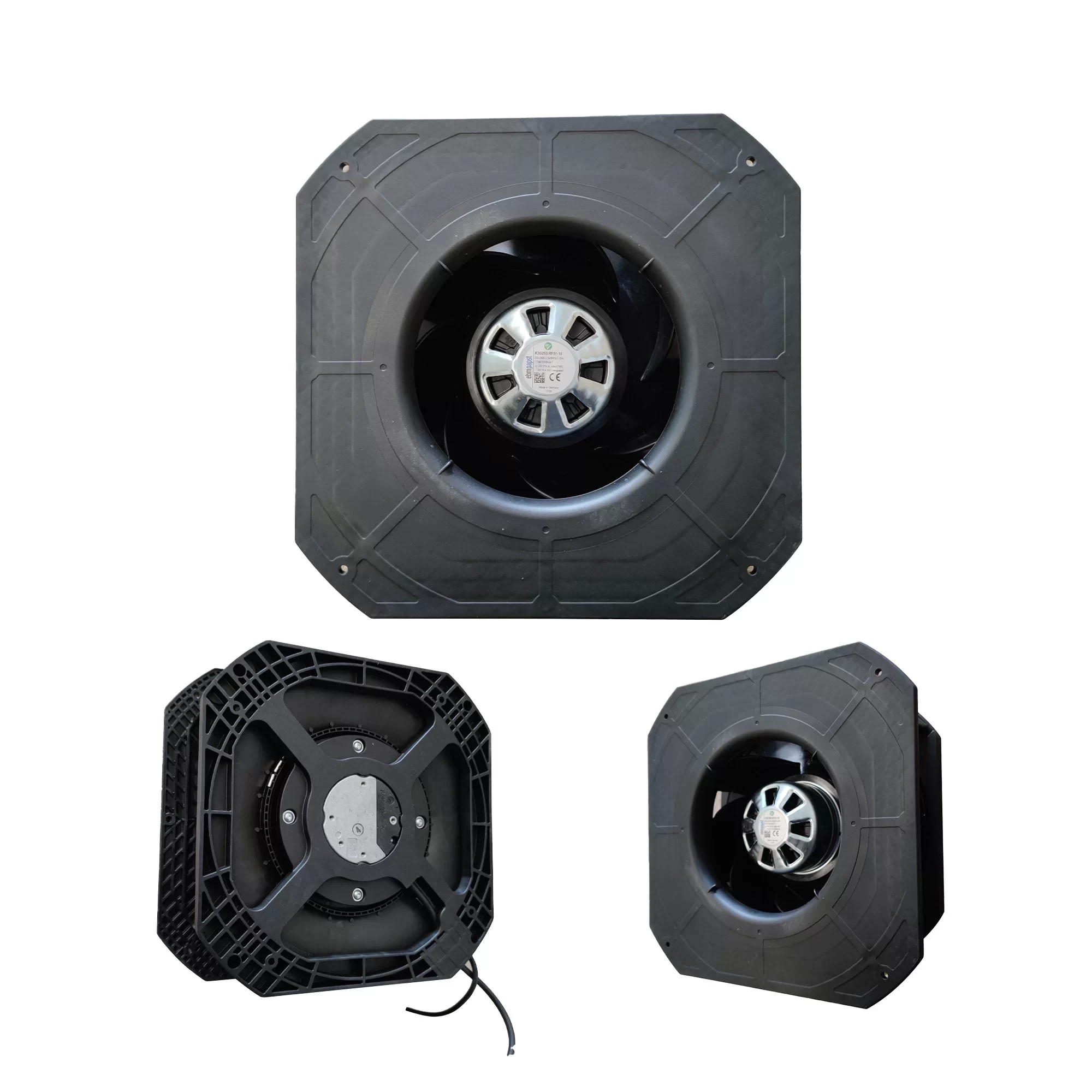

The ebmpapst K3G250-RF51-10 is a high-efficiency EC centrifugal fan, featuring the M3G074-CF motor and measuring 250mm in diameter with a 117mm depth. Operating at 230VAC within a 200-240V range across both 50Hz and 60Hz frequencies, it consumes 170W of power and draws 1.35A of current. This fan delivers an airflow of 810m³/h (476CFM) at a speed of 2550RPM. Equipped with 7 PA plastic blades, durable ball bearings, and a PA plastic housing, it boasts an IP54 ingress protection rating. It is suitable for reliable operation within an ambient temperature range of -25 to 60°C.
K3G250-RF51-10 Fan Parameters
Manufacturer: ebmpapst
Model: K3G250-RF51-10
Motor: M3G074-CF
Fan Type: EC Centrifugal Fan
Dimensions: 250 x 117 mm
Rated Voltage: 230 VAC
Operating Voltage Range: 200 ~ 240 VAC
Frequency: 50 Hz / 60 Hz
Current Rating: 1.35 A
Power Consumption: 170 W
Airflow: 810 m³/h (476 CFM)
Speed: 2550 RPM
Bearing Type: Ball Bearing
Number of Blades: 7
Operating Temperature: -25 ~ 60°C
Housing Material: PA plastic
Blade Material: PA plastic
IP Rating: IP54
Weight: 2.6 kg
Application: This ebmpapst EC centrifugal fan is suitable for various ventilation and air conditioning systems, and industrial applications requiring efficient air movement with a compact design and robust protection.
