Description

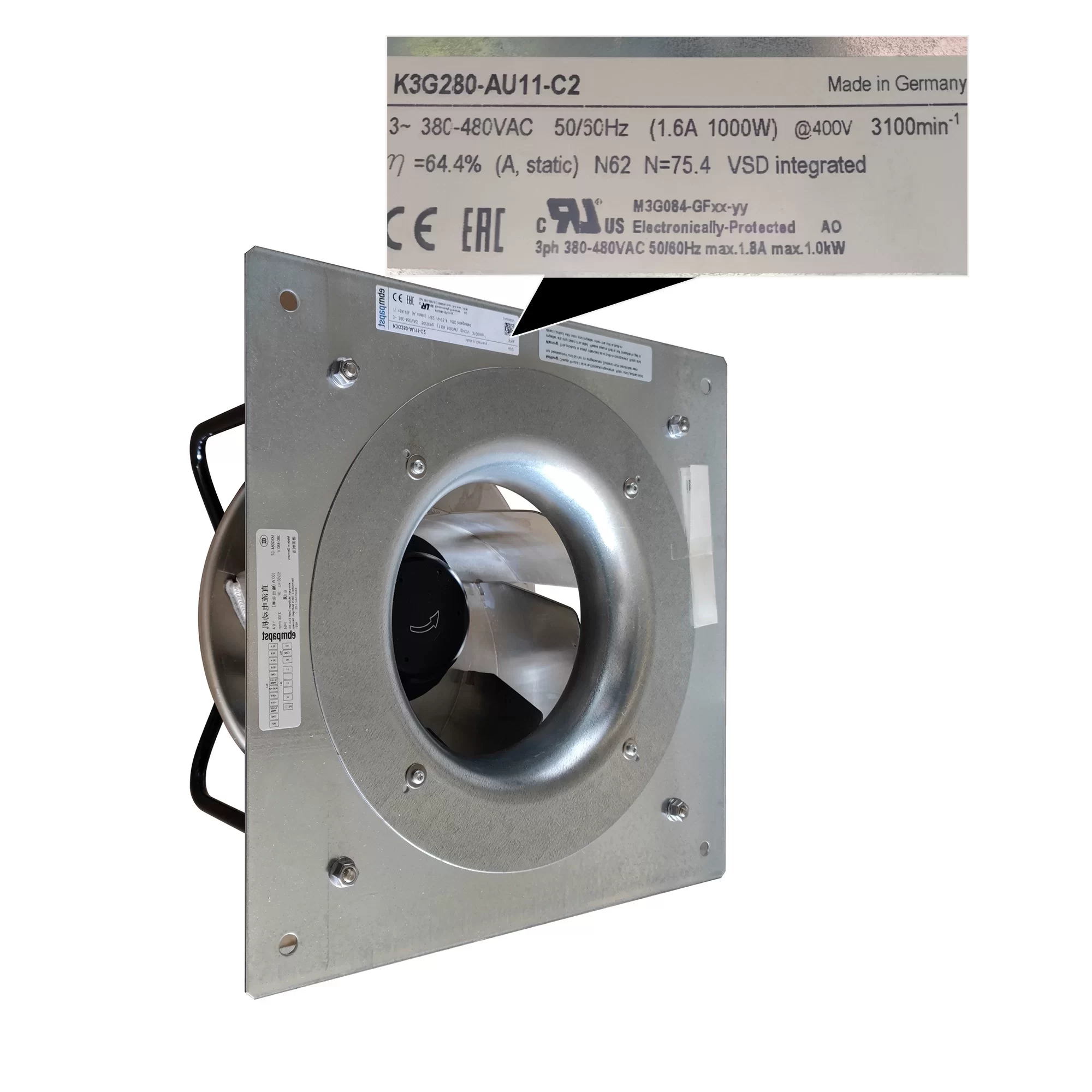

The ebmpapst K3G280-AU11-C2 is a high-performance EC centrifugal fan, featuring the M3G084-GF motor and measuring 280x117mm. Operating with a 3-phase supply at 400V within a 380-480V range across both 50Hz and 60Hz frequencies, it consumes 1000W of power and draws 1.6A of current. This fan operates at a speed of 3100RPM. Equipped with 7 PA plastic blades and durable ball bearings, this model is designed for robust performance in demanding applications.
K3G280-AU11-C2 Fan Parameters
Manufacturer: ebmpapst
Model: K3G280-AU11-C2
Motor: M3G084-GF
Fan Type: EC Centrifugal Fan
Phase: 3~
Dimensions: 280 x 117 mm
Rated Voltage: 400 VAC
Operating Voltage Range: 380 ~ 480 VAC
Frequency: 50 Hz / 60 Hz
Current Rating: 1.6 A
Power Consumption: 1000 W
Speed: 3100 RPM
Bearing Type: Ball Bearing
Number of Blades: 7
Termination: Wire Leads
Blade Material: PA plastic
Weight: 11.7 kg
Application: This ebmpapst EC centrifugal fan is highly suitable for demanding industrial ventilation systems, air handling units, and other applications requiring powerful and energy-efficient airflow with a 3-phase power supply.
