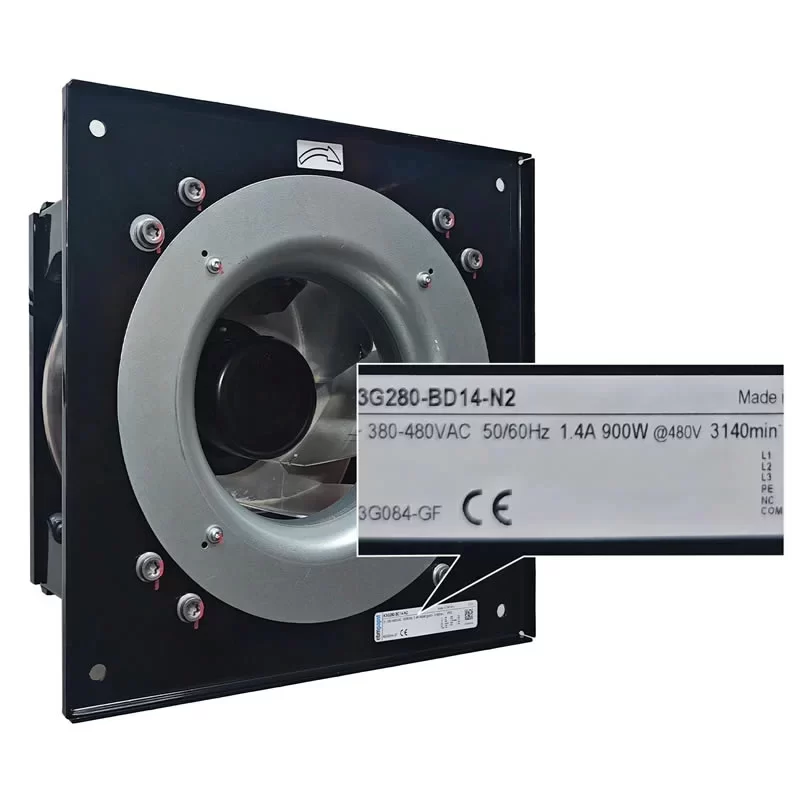

K3G280-BD14-N2 ebmpapst 400VAC 280mm EC Centrifugal Fan

Description

The ebmpapst K3G280-BD14-N2 is a specialized 380-480 V three-phase GreenTech EC centrifugal fan module from the RadiPac series, engineered to meet rigorous railway and industrial standards. Featuring a 280 mm backward-curved aluminum impeller within a robust cubic support structure, it is powered by the M3G084-GF motor, delivering 900 W of performance at speeds up to 3140 RPM. This module is uniquely certified to EN 45545-2 (HL3) for fire protection and EN 50155 for electronic equipment used on rolling stock, making it an ideal thermal management solution for railway technology and heavy-duty industrial AHU systems. Equipped with an RS-485 Modbus RTU interface, integrated PID controller, and emergency operation mode, it ensures maximum safety and reliability across an extreme ambient temperature range of -40 °C to 60 °C.

K3G280-BD14-N2 Fan Parameters
Model Number: K3G280-BD14-N2
Manufacturer: ebmpapst
Motor Model: M3G084-GF
Series: RadiPac EC Centrifugal Module (Railway Grade)
Type: EC Centrifugal Fan (Backward-Curved)
Impeller Size: 280 mm
Dimensions: 400 x 400 x 321 mm
Bearing Type: Ball Bearing
Nominal Voltage: 400 VAC
Voltage Range: 380 – 480 VAC
Phase: 3~
Frequency: 50 / 60 Hz
Weight: 14.0 kg
Power Consumption: 900 W
Nominal Current: 1.4 A
Speed: 3140 RPM
Control Interface: RS-485 MODBUS-RTU; 0-10 VDC / PWM
Technical Features: Integrated PID controller; Emergency operation; Run monitoring; Soft start; Passive PFC; Power limiter; 10 VDC output (max. 10 mA); EEPROM write cycles (max. 100,000); Alarm relay
Motor Protection: Thermal overload protection for electronics/motor; Overvoltage detection; Line undervoltage / phase failure detection; Motor current limitation
Insulation Class: Class F
Touch Current: <= 3.5 mA
Electrical Hookup: Terminal box; Cable (Lateral exit)
Number of Blades: 7
Direction of Rotation: Clockwise, viewed toward rotor
Impeller Material: Sheet aluminum
Support Plate Material: Sheet steel, galvanized
Support Bracket Material: Steel, painted black
Inlet Nozzle Material: Sheet steel, galvanized
Electronics Housing Material: Die-cast aluminum
Installation Position: Shaft horizontal or rotor on bottom
Condensate Discharge Holes: On rotor side
Degree of Protection: IP55
Environmental Protection Class: H3
Operating Temperature: -40 – +60 °C
EMC Compliance: EN 50121-3-2 (Railway infrastructure)
Standard Compliance: EN 15085-1, EN 45545-2 (HL3), EN 50155, EN 61373 (Cat 1B), CE
Approval Agency: EAC

Application
The ebmpapst K3G280-BD14-N2 is primarily utilized in railway vehicle ventilation and cooling, high-reliability industrial air handling units (AHU), and heavy-duty thermal management systems requiring compliance with fire and vibration safety standards.
