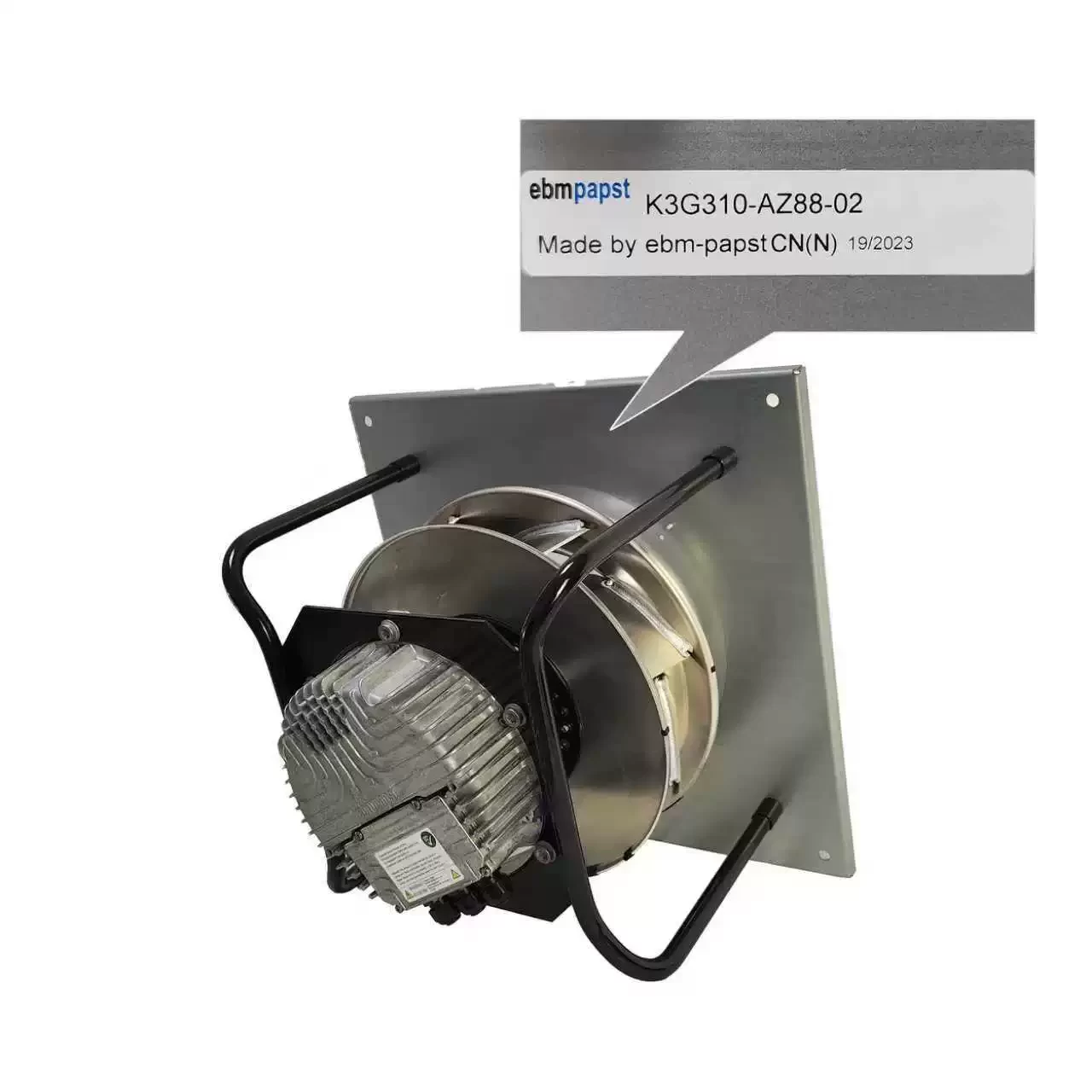

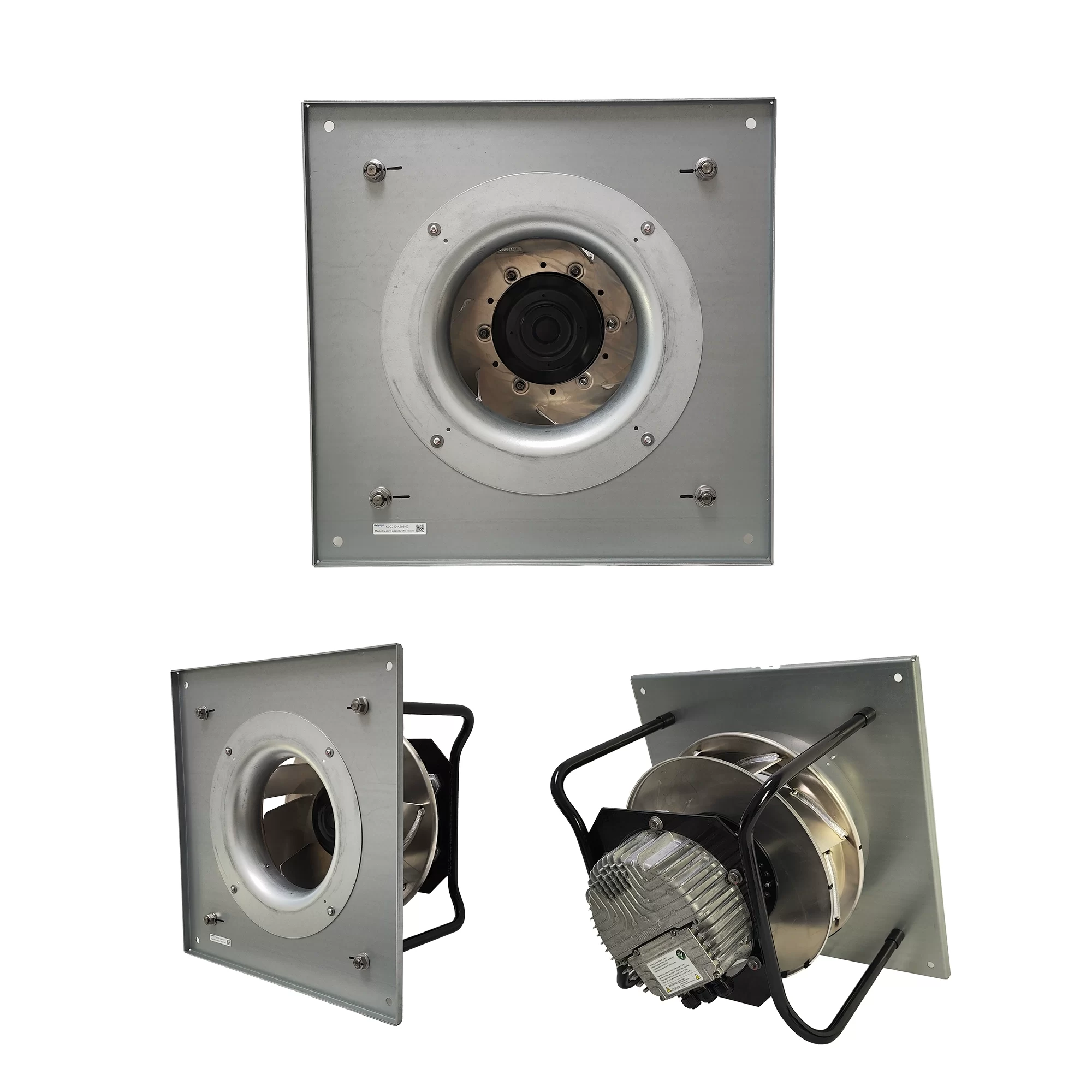

K3G310-AZ88-02 ebmpapst EC Centrifugal Fan

Description

The ebmpapst K3G310-AZ88-02 is an EC Centrifugal Fan with a 310mm impeller diameter. It operates on 380-480 VAC 3-phase at 50/60 Hz. This fan delivers powerful performance, reaching a speed of 4100 RPM with an input power of 3240 W and a current draw of 4.9 A. It provides a significant airflow of 4025 m³/h. Featuring a robust ball bearing system and an IP54 ingress protection rating, it is constructed with a die-cast aluminum rotor and sheet aluminum impeller. This fan is commonly used in various air handling units (AHU), precision air conditioning systems, and data centers, where high efficiency and reliable cooling are essential.

K3G310-AZ88-02 Fan Parameters
Model: K3G310-AZ88-02
Manufacturer: ebmpapst
Type: EC Centrifugal Fan
Impeller Diameter: 310 mm
Nominal Voltage: 380-480 VAC
Frequency: 50/60 Hz
Phase: 3~
Speed: 4100 RPM
Power Input: 3240 W
Current Draw: 4.9 A
Airflow: 4025 m³/h
Static Pressure: 1567 Pa
Weight: 24.2 kg
Bearing Type: Ball Bearing
Protection Level: IP54
Insulation Class: B
Operating Temperature: -40 to 50°C
Storage Temperature: -40 to 80°C
Motor: M3G112-IA
Rotor Surface: Painted black
Impeller Material: Sheet aluminum
Support Plate Material: Sheet steel, galvanized
Inlet Nozzle Material: Sheet steel, galvanized
Number of Blades: 7
Direction of Rotation: Clockwise, viewed toward rotor
Motor Protection: Thermal overload protector TOP
Electrical Hookup: Terminal box
Application: Air handling units AHU, precision air conditioning, data centers.
