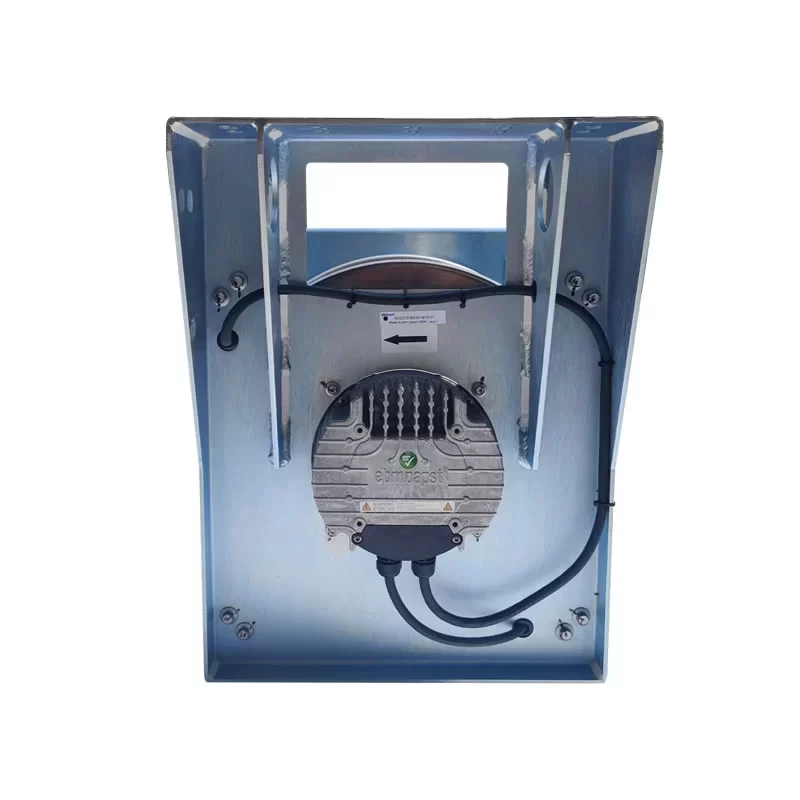

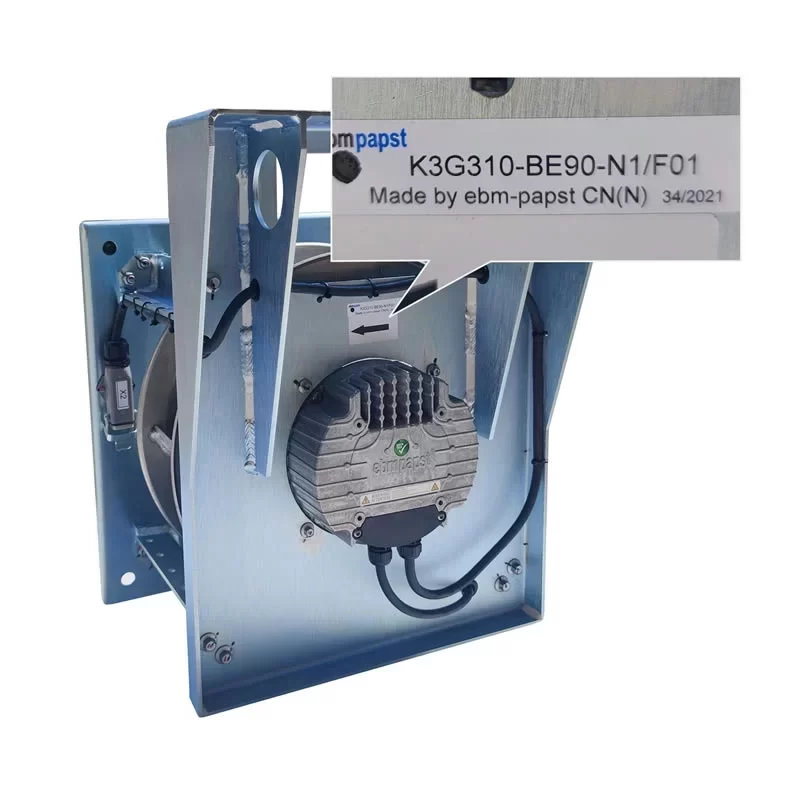

K3G310-BE90-N1/F01 ebmpapst 400V 400mm EC centrifugal fan

Description

The ebmpapst K3G310-BE90-N1/F01 is a premium-grade RadiCal EC centrifugal fan module integrated within a 400 x 400 x 245.5 mm aluminum support structure, designed for heavy-duty railway and industrial applications. Operating on a 3-phase 380 – 480 VAC supply, this module utilizes the M3G112-EA motor to deliver a powerful 1300 W output at 2900 RPM. The 310 mm sheet aluminum backward-curved impeller and galvanized inlet nozzle are engineered for high-pressure efficiency and compliance with EN 45545-2 (HL3) and EN 50155 fire and vibration safety standards. Featuring IP55 protection, an integrated PID controller, and RS-485 MODBUS-RTU interface, this fan module provides advanced thermal management and long-term reliability in extreme environments from -40 °C to 60 °C.

K3G310-BE90-N1/F01 Fan Parameters
Manufacturer: ebmpapst
Model Number: K3G310-BE90-N1/F01
Type: EC centrifugal fan
Motor Model: M3G112-EA
Phase: 3~
Nominal Voltage: 400 VAC
Nominal Voltage Range: 380 – 480 VAC
Frequency: 50/60 Hz
Dimensions: 400 x 400 x 245.5 mm
Impeller Size: 310 mm
Weight: 15 kg

[Electrical Data]
Nominal Speed: 2900 RPM
Power Consumption: 1300 W
Current Draw: 2.0 A
Control Input: 0-10 VDC / PWM / RS-485 MODBUS-RTU
Output: 10 VDC (Max. 10 mA) / Alarm relay
Motor Protection: Thermal overload protector (TOP) internally connected
Touch Current: <= 3.5 mA (IEC 60990 Fig. 4, TN system)
Insulation Class: F

[Performance & Technical Features]
Number of Blades: 7
Direction of Rotation: Clockwise (viewed toward rotor)
Control Functions: Integrated PID controller, Soft start, Power limiter, Motor current limitation
Monitoring: Run monitoring, Overvoltage/Undervoltage/Phase failure detection
Emergency Operation: Supported
EEPROM Write Cycles: 100,000 maximum

[Materials & Construction]
Electronics Housing: Die-cast aluminum
Impeller Material: Sheet aluminum
Inlet Nozzle Material: Sheet steel, galvanized
Support Structure: Aluminum
Rotor Surface: Painted black
Motor Bearing: Ball bearing (sealed)
Installation Position: Shaft horizontal or rotor on bottom
Condensation Drainage: On rotor side

[Reliability & Safety Standards]
Degree of Protection: IP55
Environmental Protection: H3
Min. Ambient Temperature: -40 °C
Max. Ambient Temperature: 60 °C
Min. Storage Temperature: -40 °C
Max. Storage Temperature: 80 °C
Railway Compliance: EN 45545-2 (HL3), EN 50155, EN 50121-3-2, EN 61373 (Cat. 1B), EN 15085-1 (CPC3)
Approval Agency: EAC, CE

Application
