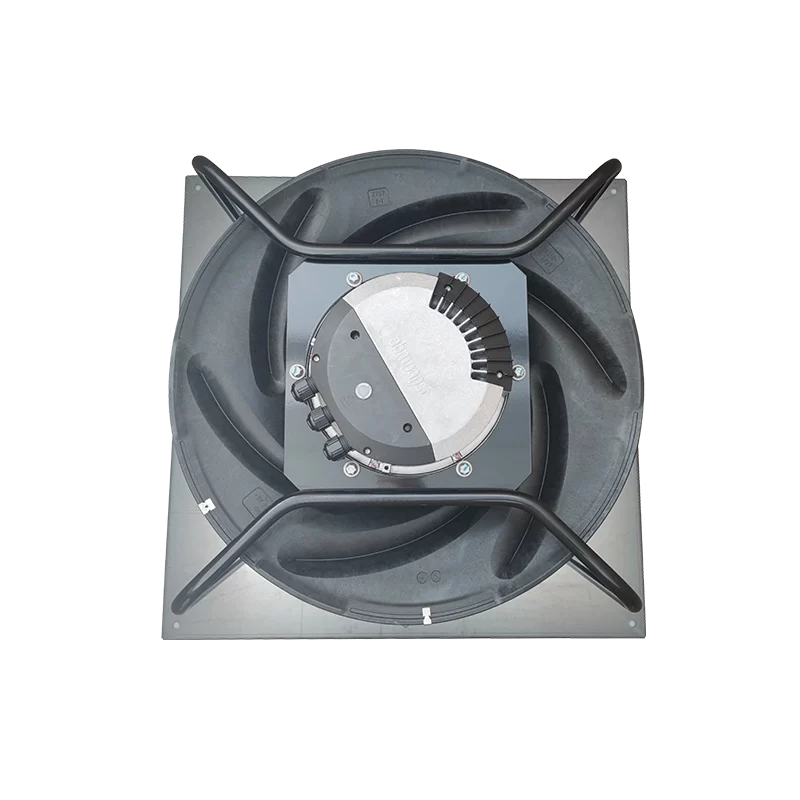

K3G355-PV70-01/F01 ebmpapst EC Centrifugal Fan

Description

The ebmpapst K3G355-PV70-01/F01 is an advanced EC Centrifugal Fan with a 355mm impeller diameter. It operates on 380-480 VAC, 3-phase power, at both 50Hz and 60Hz. This fan achieves a speed of 3230 RPM with an input power of 2900 W and a current draw of 4.4 A. It delivers a substantial airflow of 3850 m³/h. Featuring a robust ball bearing system and an IP55 ingress protection rating, it is constructed with a die-cast aluminum rotor and sheet aluminum impeller. This fan is highly efficient and widely used in various demanding applications such as air handling units, data center cooling, and clean room technology due to its controlled performance and reliability.

K3G355-PV70-01/F01 Fan Parameters
Model: K3G355-PV70-01/F01
Manufacturer: ebmpapst
Type: EC Centrifugal Fan
Impeller Diameter: 355 mm
Rated Voltage: 380-480 VAC
Frequency: 50/60 Hz
Phase: 3~
Speed: 3230 RPM
Power Input: 2900 W
Current Draw: 4.4 A
Airflow: 3850 m³/h
Static Pressure: 1000 Pa
Bearing Type: Ball Bearing
Protection Level: IP55
Insulation Class: B
Operating Temperature: -40 to 60°C
Storage Temperature: -40 to 80°C
Weight: 14.8 kg
Motor: M3G112-IA
Rotor Surface: Painted black
Impeller Material: Sheet aluminum
Support Plate Material: Sheet steel, galvanized
Inlet Nozzle Material: Sheet steel, galvanized
Number of Blades: 7
Direction of Rotation: Clockwise, viewed toward rotor
Motor Protection: Thermal overload protector TOP
Electrical Hookup: Terminal box
Application: Air handling units, clean rooms, data center cooling, precision air conditioning, heat pumps.
