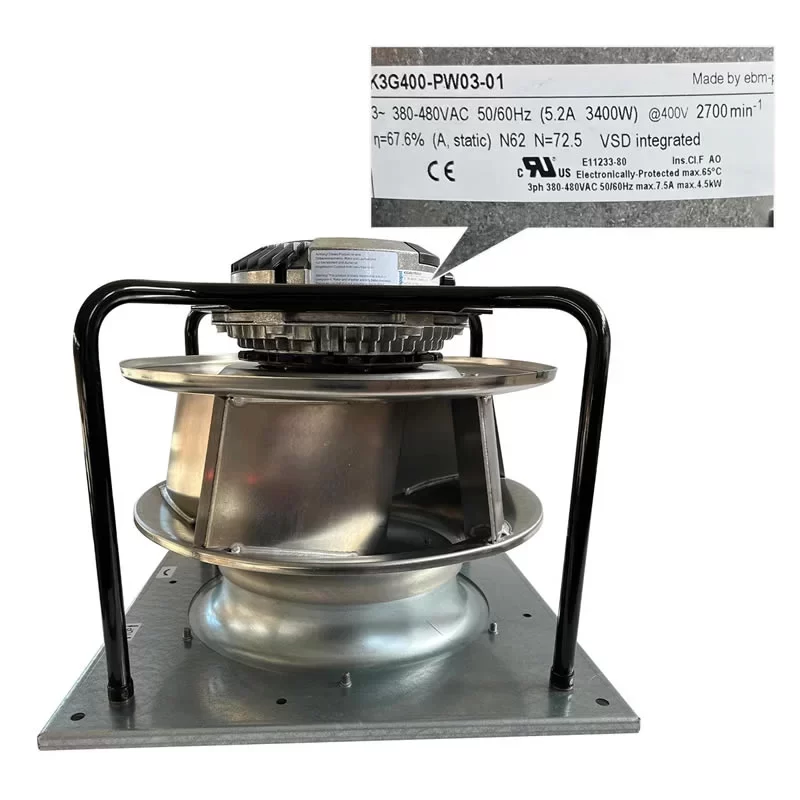

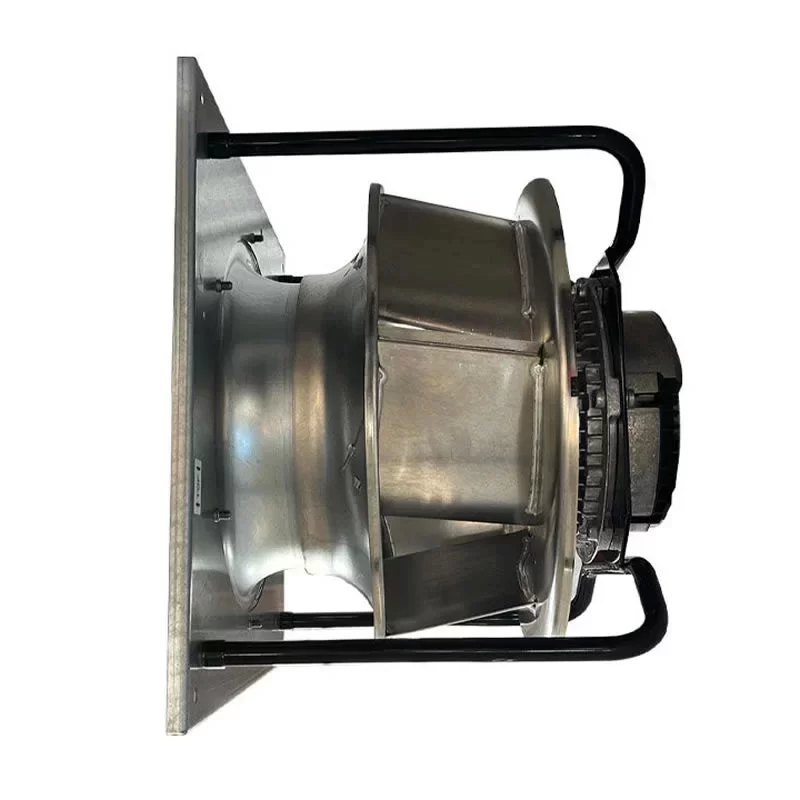

K3G400-PW03-01 ebmpapst 400VAC 400mm EC Centrifugal Fan

Description

The ebmpapst K3G400-PW03-01 is an ultra-high performance 400 V three-phase GreenTech EC centrifugal fan module from the RadiPac series, featuring a 400 mm backward-curved aluminum impeller integrated into a heavy-duty cubic support structure. Driven by the enhanced M3G112-IA motor with integrated electronics, this unit delivers a powerful airflow of 6360 m³/h and a significant pressure increase of 1239 Pa. Designed for mission-critical HVAC infrastructure, it features a sophisticated MODBUS V6.3 interface, an integrated PI controller, and configurable I/O for precise system integration. With its galvanized steel support plate and IP55-rated die-cast aluminum electronics, the K3G400-PW03-01 provides a smart, robust, and energy-efficient thermal management solution for data center cooling and high-pressure air handling units across an wide ambient temperature range of -40 °C to 40 °C.

K3G400-PW03-01 Fan Parameters
Model Number: K3G400-PW03-01
Manufacturer: ebmpapst
Motor Model: M3G112-IA
Series: RadiPac EC Centrifugal Module
Type: EC Centrifugal Fan (Backward-Curved)
Impeller Size: 400 mm
Dimensions: 500 x 500 x 402 mm
Bearing Type: Ball Bearing
Nominal Voltage: 400 VAC
Voltage Range: 380 – 480 VAC
Phase: 3~
Frequency: 50 / 60 Hz
Weight: 25.1 kg
Power Consumption: 3400 W
Nominal Current: 5.2 A
Speed: 2700 RPM (2725 RPM at peak point)
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Efficiency Grade (N): 72.5
Overall Efficiency (ηes): 67.6%
Motor Design: 3-Phase EC External Rotor Motor
Control Interface: RS-485 MODBUS-RTU (V6.3); 0-10 VDC / PWM
Technical Features: Integrated PI controller; Soft start; Configurable I/O; Operation and alarm display with LED; External 15-50 VDC input (parameterization); Voltage output 3.3-24 VDC; Alarm relay
Motor Protection: Electronic motor protection; Thermal overload protection for electronics/motor; Line undervoltage / phase failure detection; Motor current limitation
Insulation Class: Class F
Touch Current: <= 3.5 mA
Electrical Hookup: Terminal box
Number of Blades: 5
Direction of Rotation: Clockwise, viewed toward rotor
Impeller Material: Sheet aluminum
Support Plate Material: Sheet steel, galvanized
Support Bracket Material: Steel, painted black
Inlet Nozzle Material: Sheet steel, galvanized
Electronics Housing Material: Die-cast aluminum
Installation Position: See product drawing
Condensation Drainage: On rotor side
Degree of Protection: IP55
Environmental Protection Class: H1
Operating Temperature: -40 – +40 °C
Standard Compliance: EN 61800-5-1, CE
Approval Agency: CSA C22.2 No. 77; EAC; UL 1004-7

Application
The ebmpapst K3G400-PW03-01 is used in high-efficiency air handling units (AHU), data center precision cooling, cleanroom ventilation, industrial heat exchangers, and smart building HVAC systems.
