K3G450-PB29-L1/F01 ebmpapst 400V 450mm EC Centrifugal Fan

Description

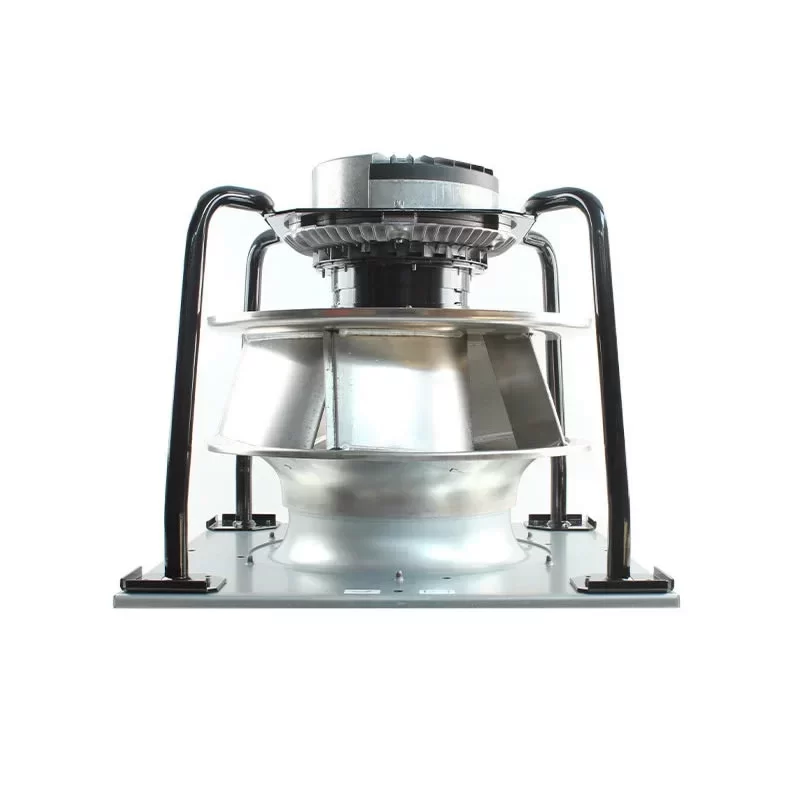

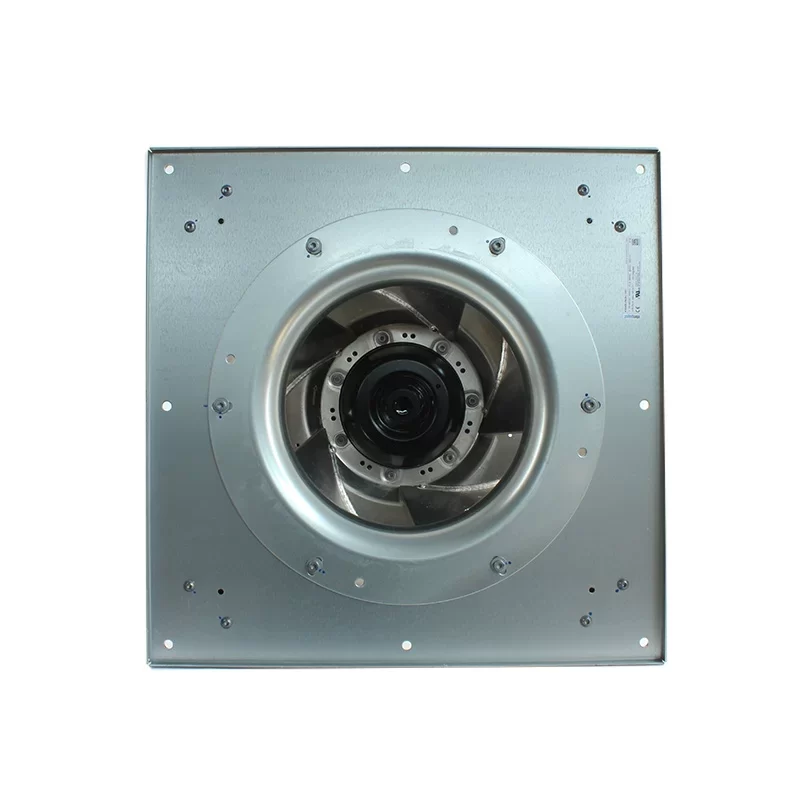

The ebmpapst K3G450-PB29-L1/F01 is a mission-critical RadiPac EC centrifugal fan assembly featuring a 450 mm aluminum impeller and a heavy-duty support bracket. Powered by the M3G150-IF motor, this 3-phase unit operates at 400 VAC (380 – 480 VAC range), delivering a massive 6800 W output at 2800 RPM. The fan is integrated into a robust support structure with dimensions of 630 x 630 x 536.5 mm, providing a stable footprint for high-capacity industrial installations. The /F01 variant integrates advanced factory-customized electronics, including MODBUS V6.4 RTU communication and a high-precision vibration sensor for real-time condition monitoring. Achieving a static overall efficiency of 68.8% (ErP 2015 N70.7), this 45.1 kg powerhouse is capable of moving 9035 m³/h (5318 CFM) at a high pressure increase of 1749 Pa (7.02 inAq), providing an intelligent thermal management solution for large-scale AHU FanGrids and data center cooling towers.

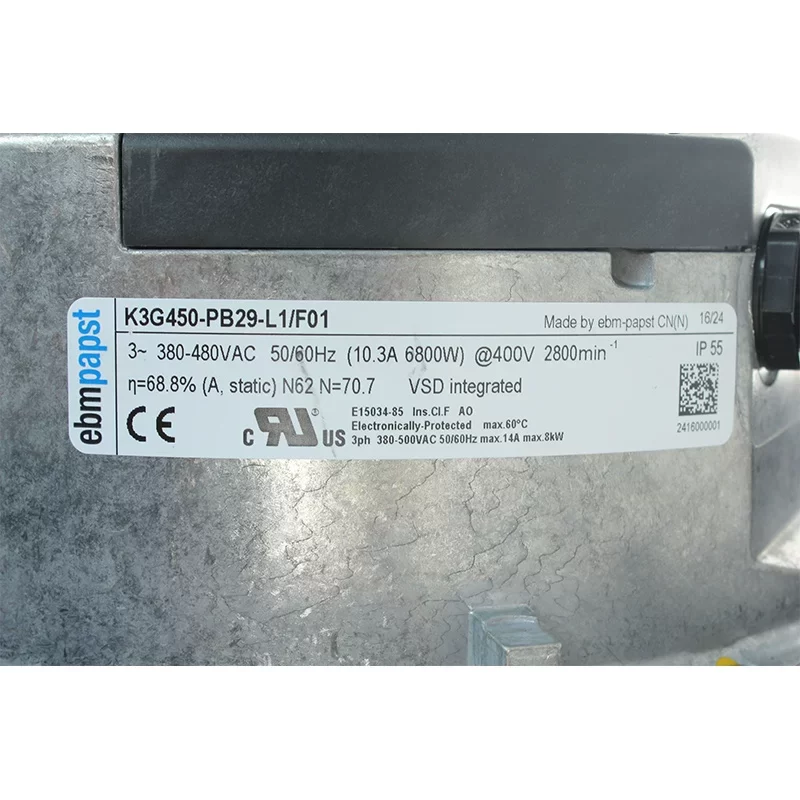

K3G450-PB29-L1/F01 Fan Parameters
Manufacturer: ebmpapst
Model Number: K3G450-PB29-L1/F01
Motor Model: M3G150-IF
Motor Design: EC Motor (Electronically Commutated)
Phase: 3-phase
Type: EC Centrifugal Fan
Nominal Voltage: 400 VAC
Nominal Voltage Range: 380 – 480 VAC
Frequency: 50/60 Hz
Dimensions: 630 x 630 x 536.5 mm
Impeller Size: 450 mm
Number of Blades: 5
Weight: 45.1 kg

[Electrical Data]
Nominal Speed: 2800 RPM
Power Consumption: 6800 W
Current Draw: 10.3 A
Control Interface: RS-485 MODBUS-RTU (V6.4), 0-10V, PWM
Voltage Output: 3.3 – 24 VDC (Pmax = 800 mW)
External Input: 15 – 50 VDC (for parameterization)
Motor Bearing: Maintenance-free Ball Bearings
Protection Class: I (with protective earth)
Insulation Class: F
Environmental Protection: H1

[Performance & ErP Data]
Max. Air Flow: 9035 m³/h (5318 CFM)
Pressure Increase (pfs): 1749 Pa (7.02 inAq)
Overall Efficiency (ηes): 68.8%
Efficiency Grade: N 70.7
Direction of Rotation: Clockwise (looking at rotor)
Airflow Direction: Radial (Centrifugal)
Mode: S1 (Continuous operation)

[Materials & Construction]
Impeller Material: Sheet aluminum
Electronics Housing: Die-cast aluminum
Support Plate/Nozzle: Sheet steel, galvanized
Support Bracket: Steel, painted black
Installation Position: Any (Shaft horizontal preferred)
Condensation Drainage: On rotor side
Termination: Terminal box

[Reliability & Protection]
Degree of Protection: IP55
Min. Ambient Temperature: -40 °C (Occasional start-up permitted)
Max. Ambient Temperature: 40 °C (Storage up to 80 °C)
Technical Features: Integrated PI controller, Vibration sensor, Soft start, Phase failure detection
EMC Immunity: According to EN 61000-6-2 (Industrial)
EMC Emission: According to EN 61000-6-4 (Industrial)
Motor Protection: Electronic motor protection; Thermal overload protection
Approval: UL, CSA, EAC, CE

Application
The K3G450-PB29-L1/F01 is specifically designed for high-capacity industrial Air Handling Units (AHU) and refrigeration plants where its 630 x 630 x 536.5 mm structural footprint and 6800 W power output are required to maintain constant airflow through dense filters, while the /F01 variant’s vibration sensor and MODBUS RTU integration allow for advanced predictive maintenance in mission-critical 400 VAC data center FanGrids that demand 45.1 kg of structural stability and operation in extreme environments down to -40 °C.
