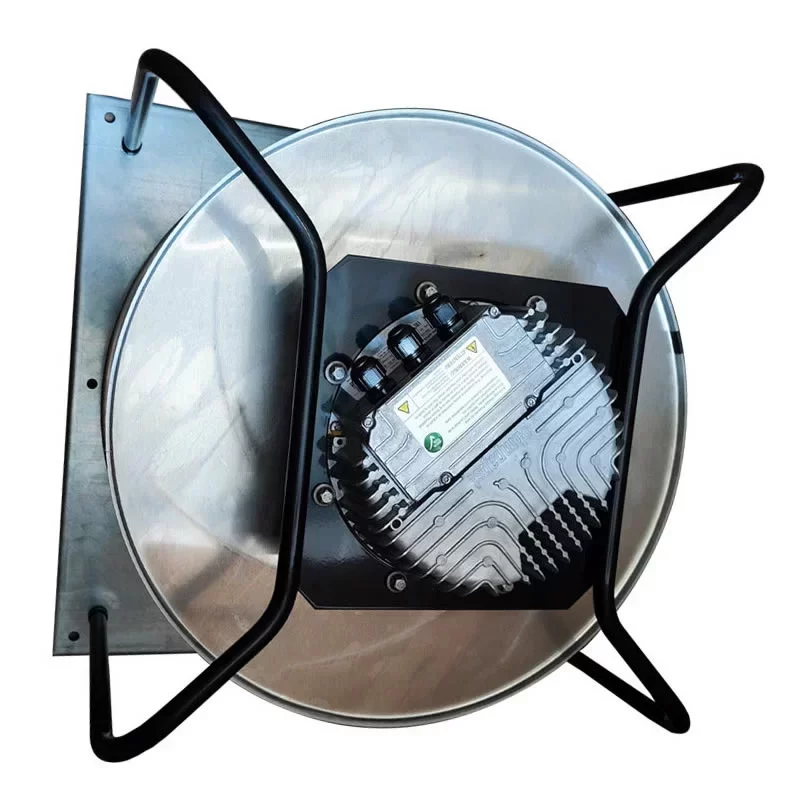

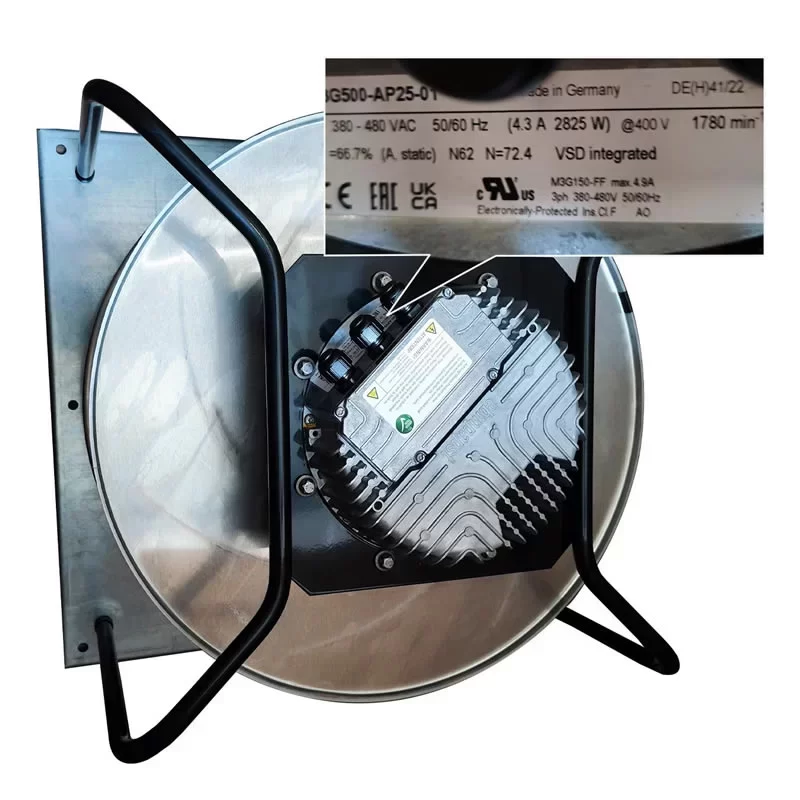

K3G500-AP25-01 ebmpapst 400VAC 500mm EC Centrifugal Fan

Description

The ebmpapst K3G500-AP25-01 is a high-performance RadiPac EC centrifugal fan assembly engineered for superior energy efficiency and intelligent airflow management in large-scale HVAC systems. Driven by the M3G150-FF external rotor motor, this 500 mm unit is optimized for 3-phase 400 VAC operation, delivering a robust air volume of 8140 m³/h at its optimum efficiency point with a static efficiency of 66.5%. The construction features a 7-blade aluminum sheet impeller and a comprehensive support system including a hot-dip galvanised mounting plate and inlet nozzle. Its advanced electronics suite offers unmatched control flexibility, featuring RS485 MODBUS-RTU, an integrated PID controller, and dual sensor inputs (0-10 V and 4-20 mA). Built for S1 continuous operation with IP54 protection, the K3G500-AP25-01 incorporates comprehensive safety features such as phase failure detection, active motor current limitation, and thermal overload protection, providing a professional-grade, plug-and-play solution for air handling units and industrial ventilation.

K3G500-AP25-01 Fan Parameters
Model Number: K3G500-AP25-01
Motor Number: M3G150-FF
Manufacturer: ebmpapst
Series: RadiPac Series
Type: EC Centrifugal Fan (Backward-curved)
Size: 500 mm
Weight: 40 kg
Bearing Type: Ball bearing
Nominal Voltage: 400 VAC
Voltage Range: 380 – 480 VAC
Phase: 3~
Frequency: 50 / 60 Hz
Power Consumption: 2825 W
Nominal Current: 4.3 A
Speed: 1780 RPM
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Optimum Air Flow: 8140 m³/h
Optimum Pressure Increase: 799 Pa
Overall Efficiency: ηes 66.5% / Efficiency Grade N72.2
Motor Design: EC external rotor motor, black coated
Motor Protection: Reverse polarity, locked-rotor, and over-temperature protection
Technical Features: RS485 MODBUS-RTU; Integrated PID controller; 0-10 VDC / PWM control input; Input for sensor (0-10 V / 4-20 mA); External 24 V input (programming); Alarm relay; Soft start; Line undervoltage / phase failure detection; Output 10 VDC (max 10 mA) & 20 VDC (max 50 mA); Output for slave 0-10 V
EMC Standards: EN 61000-6-2 (Industrial); EN 61000-6-3 (Household)
Insulation Class: Class F
Moisture/Env. Protection: F4-1
Electrical Hookup: Terminal box
Number of Blades: 7
Direction of Rotation: Clockwise, viewed toward rotor
Impeller Material: Aluminium sheet
Mounting Plate/Inlet Nozzle: Sheet steel, hot-dip galvanised
Support Bracket: Steel, coated in black plastic (RAL 9005)
Electronics Housing: Die-cast aluminium
Installation Position: Refer to product drawing
Condensation Drainage: Rotor-side holes
Mode: S1
Touch Current: <= 3.5 mA
Degree of Protection: IP54
Protection Class: I
Approval: VDE, UL 1004-7, CSA C22.2, EAC, CCC

Application
The ebmpapst K3G500-AP25-01 EC fan is primarily utilized in large-scale Air Handling Units (AHU), data center cooling systems, cleanroom ventilation, and high-capacity roof extractors.
