K3G500-PA23-71 ebmpapst 380-480V 500mm EC Centrifugal Fan

Description

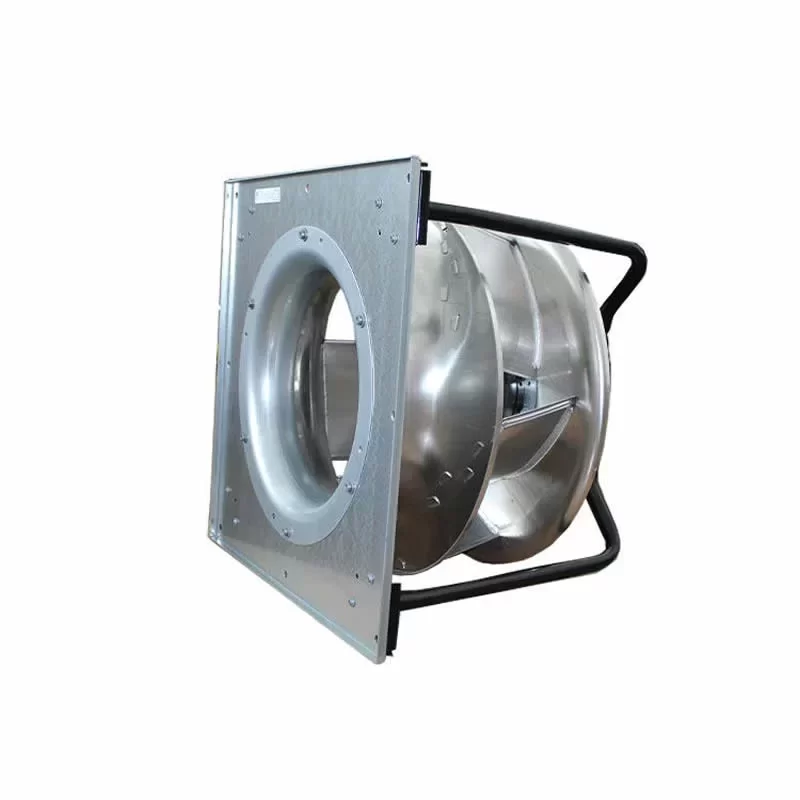

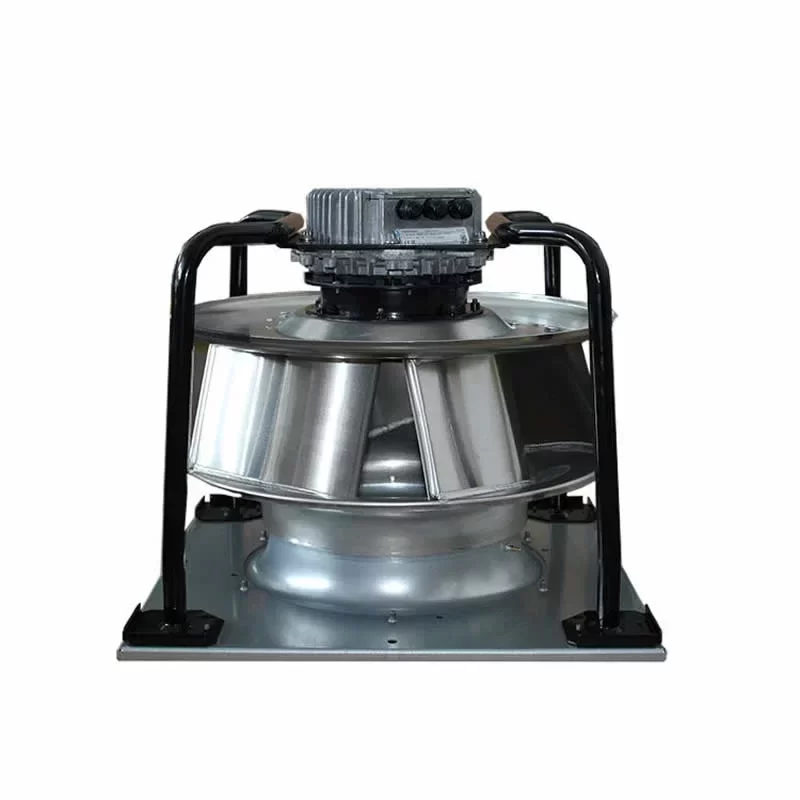

The ebmpapst K3G500-PA23-71 is a heavy-duty, high-performance 3-phase EC Centrifugal Fan module featuring a 500 mm backward-curved aluminum impeller. Driven by the M3G150-FF (Size 150) GreenTech EC motor, this 38.7 kg unit is a central component for high-capacity air handling units (AHU) and large-scale industrial ventilation. Operating on a 380-480 VAC supply, it delivers exceptional performance with a power consumption of 3450 W at a rated speed of 1910 RPM. This RadiPac unit is built for maximum durability, utilizing sheet aluminum for the 7-blade impeller, galvanized sheet steel for the support plate and inlet nozzle, and a die-cast aluminum electronics housing supported by black-painted steel brackets. With integrated MODBUS-RTU control, a built-in PID controller, and IP55/H1 protection, the K3G500-PA23-71 provides a mission-critical, IE5-level efficiency cooling solution for global 400V infrastructures requiring high static pressure and 24/7 operational reliability.

K3G500-PA23-71 Fan Parameters

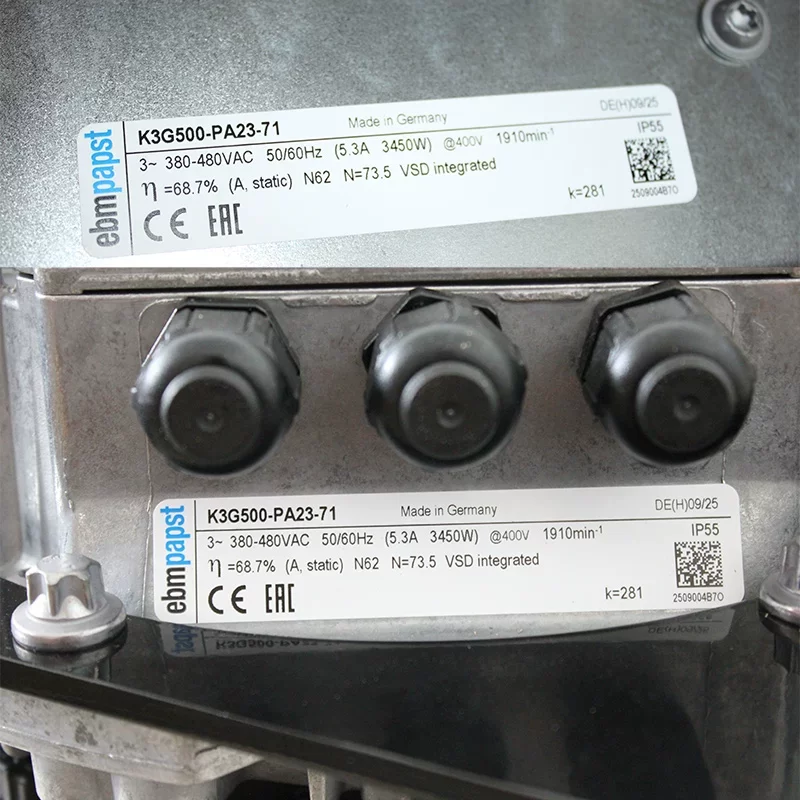

Manufacturer: ebmpapst
Model Number: K3G500-PA23-71
Motor Model: M3G150-FF (Size 150)
Phase: 3~
Type: EC Centrifugal Fan Unit (RadiPac Module)
Impeller Size: 500 mm
Dimensions: 500 mm (Impeller Size) – Overall dimensions as per support frame drawing
Nominal Voltage: 400 VAC
Nominal Voltage Range: 3~ 380 – 480 VAC
Frequency: 50 / 60 Hz
Speed: 1910 RPM
Power Consumption: 3450 W
Current Draw: 5.3 A
Touch Current (IEC 60990): <= 3.5 mA
Weight: 38.7 kg
Rotor Surface: Painted black
Electronics Housing Material: Die-cast aluminum
Impeller Material: Sheet aluminum
Support Plate Material: Sheet steel, galvanized
Support Bracket Material: Steel, painted black
Inlet Nozzle Material: Sheet steel, galvanized
Number of Blades: 7
Direction of Rotation: Clockwise (viewed toward rotor)
Degree of Protection: IP55
Insulation Class: F
Moisture/Environmental Protection: H1
Max. Permitted Ambient Temp: +40 °C (Transport/Storage up to +80 °C)
Min. Permitted Ambient Temp: -25 °C (Transport/Storage down to -40 °C)
Installation Position: See product drawing
Condensation Drainage: Rotor side holes included
Mode of Operation: S1 (Continuous duty)
Motor Bearing: Ball bearing
Technical Features:
– Output 10 VDC (max. 10 mA)
– Operation and alarm display
– External 24 V input (parameter setting)
– External release input
– Integrated PID controller
– Motor current limitation
– PFC, passive
– RS-485 MODBUS-RTU
– Soft start
– EEPROM write cycles: 100,000 maximum
– Control input 0-10 VDC / PWM
– Thermal overload protection for electronics/motor
– Line undervoltage / phase failure detection
Electrical Hookup: Terminal box
Motor Protection: Reverse polarity and locked-rotor protection
Protection Class: I (with customer connection of protective earth)
Conformity & Approvals: EN 61800-5-1; CE; EAC
