Description

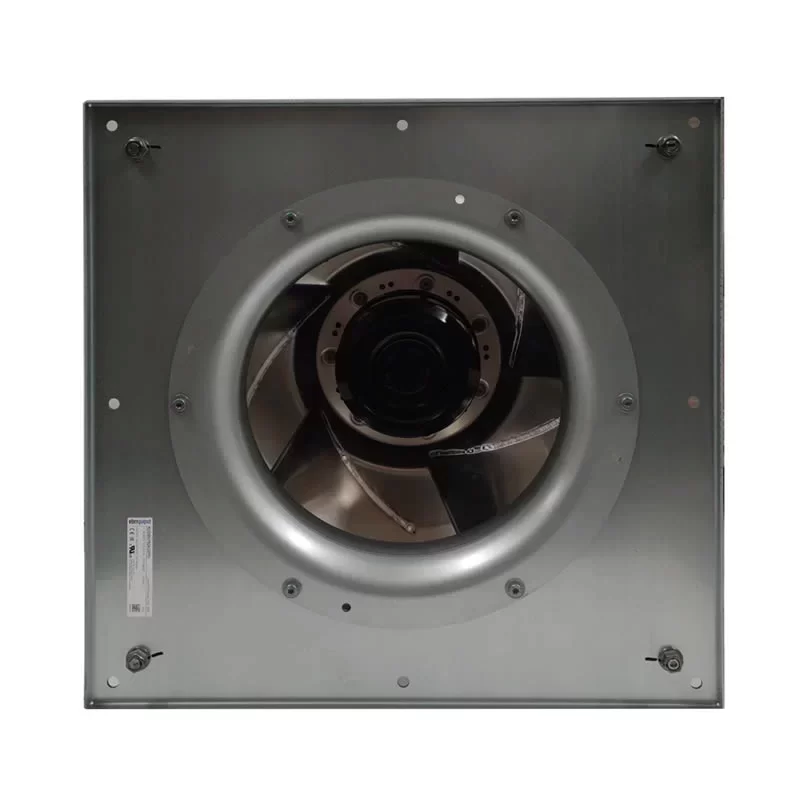

The ebmpapst K3G500-PB24-03/F01 is a high-performance 400VAC three-phase EC Centrifugal Fan from the RadiPac series, featuring backward-curved impellers with a support bracket and specialized F01 firmware. Driven by a high-efficiency GreenTech EC motor with integrated electronics, this 500 mm impeller size module is specifically engineered for mission-critical Air Handling Units (AHU), large-scale data center cooling, and industrial ventilation. Operating on a nominal voltage range of 380 to 480 VAC, it delivers a Power Consumption of 4200 W and a Current Draw of 6.4 A at a rated speed of 2000 RPM, with a maximum load capacity of up to 4.5 kW. Featuring a sheet aluminum impeller, an integrated PI controller, and RS-485 MODBUS-RTU communication, it achieves a static efficiency of 69.6% (Efficiency grade N=73.7), ensuring superior energy savings and reliable continuous S1 operation at the end.
K3G500-PB24-03/F01 Fan Parameters

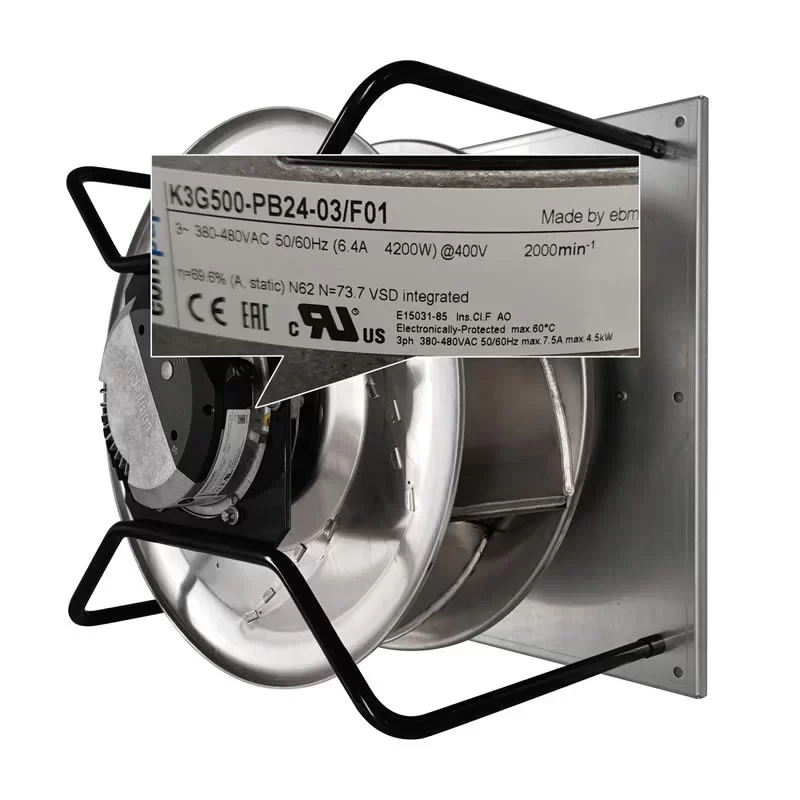

Model Number: K3G500-PB24-03/F01
Motor Model: M3G150-IF (Size 150)
Manufacturer: ebmpapst

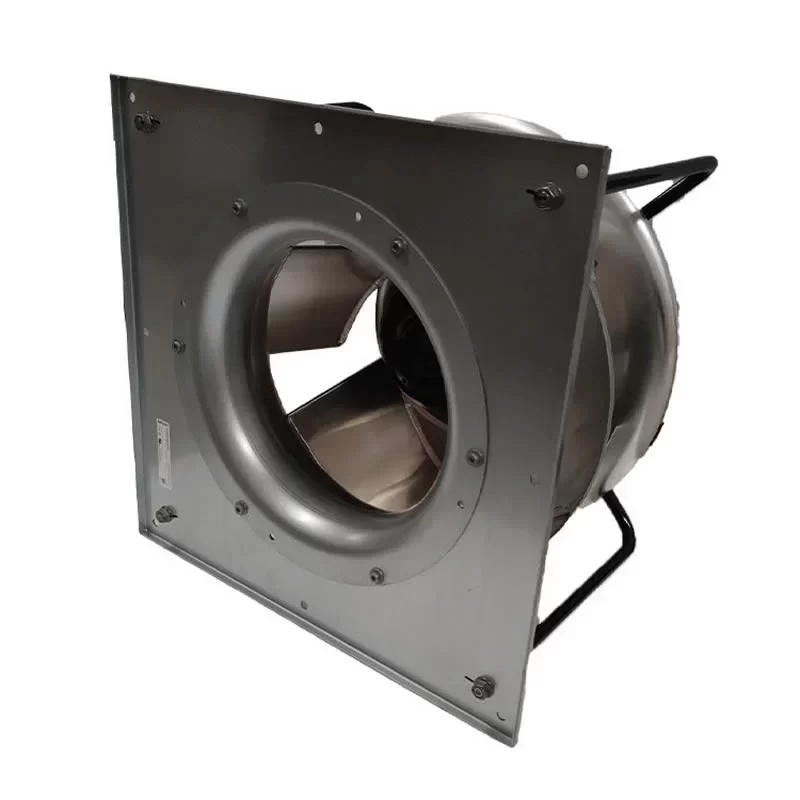

Type: EC Centrifugal Fan – RadiPac, backward-curved, single inlet with support bracket
Impeller Size: 500 mm
Dimensions: 630 x 630 x 486 mm
Weight: 42.2 kg
Bearing Type: Ball bearing
Nominal Voltage: 400 VAC
Nominal Voltage Range: 380 – 480 VAC
Phase: 3~
Frequency: 50 / 60 Hz
Method of Obtaining Data: ml (Max. load)
Current Draw: 6.4 A (@400V) / Max. 7.5 A
Power Consumption: 4200 W (@400V) / Max. 4.5 kW (4500 W)
Rated Speed: 2000 RPM
Max. Air Flow: 5111.8 CFM (8685.0 m³/h / 144.75 m³/min)
Static Pressure Increase: 109.21 mmH₂O (1071.0 Pa / 4.30 inAq)
Static Efficiency: 69.6% (Efficiency grade N: 73.7)
Impeller Material: Sheet aluminum
Electronics Housing Material: Die-cast aluminum
Support Plate Material: Sheet steel, galvanized
Support Bracket Material: Steel, painted black
Inlet Nozzle Material: Sheet steel, galvanized
Rotor Surface: Painted black
Number of Blades: 5
Direction of Rotation: Clockwise (viewed toward rotor)
Insulation Class: “F”
Degree of Protection: IP55
Moisture (F) / Environmental (H) Protection Class: H1
Motor Protection: Electronically protected (TOP internally connected)
Technical Features: Integrated VSD; RS-485 MODBUS-RTU (V6.3); Integrated PI controller; Soft start; Control input 0-10 VDC / PWM; F01 specific parameter set
Electrical Hookup: Terminal box
Installation Position: See legend on product drawing
Condensation Drainage Holes: On rotor side
Mode: S1 (Continuous operation)
Protection Class: I (if protective earth is connected)
Max. Ambient Temperature: 60 °C (Electronically-protected)
Min. Ambient Temperature: -40 °C
Standard Compliance: EN 61800-5-1; CE; UKCA
Approval: EAC; CSA C22.2 No. 77; UL 1004-7
Application
The ebmpapst K3G500-PB24-03/F01 RadiPac module is the primary air-moving solution for high-efficiency Air Handling Units (AHU), large-scale data center cooling units, and industrial HVAC systems requiring variable-speed 400V three-phase EC centrifugal airflow with specialized F01 firmware in a 500mm configuration.
