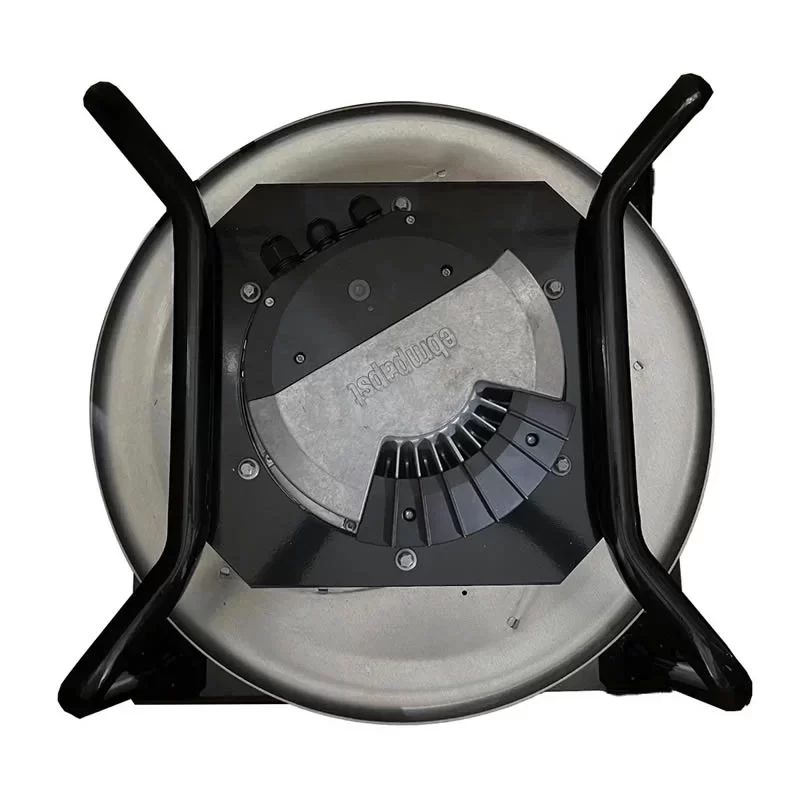

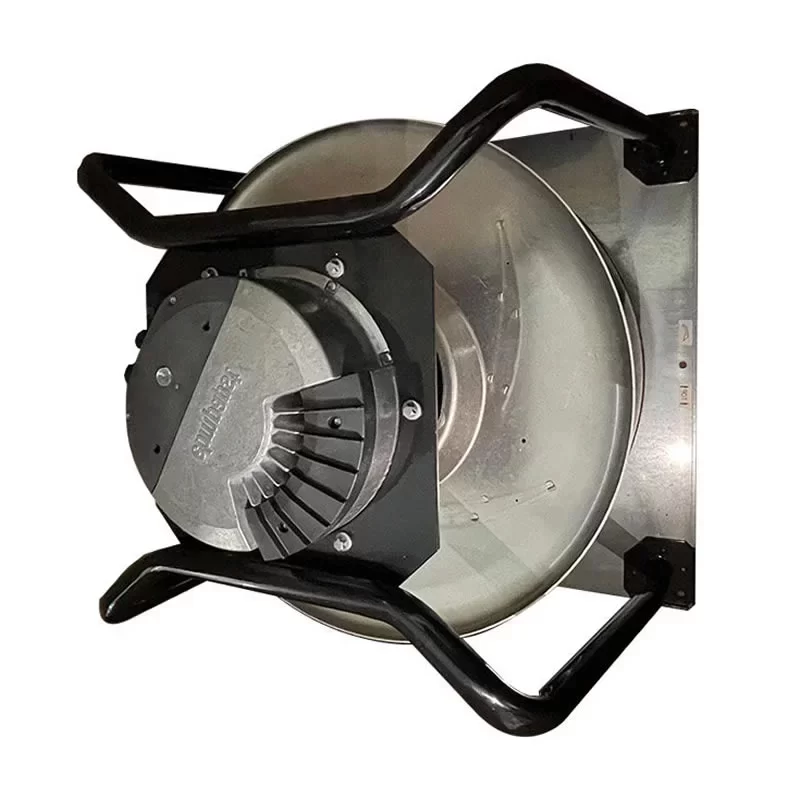

K3G560-PC10-L1 ebmpapst 400VAC 560mm EC Centrifugal Fan

Description

The ebmpapst K3G560-PC10-L1 is an ultra-high-performance 400VAC EC Centrifugal Fan featuring the RadiPac series backward-curved, single-intake impeller with a specialized support bracket design, specifically engineered for mission-critical cooling in Industrial Frequency Converters and AHU systems. Driven by a high-efficiency M3G150-NA GreenTech EC motor with integrated power electronics, this 61.0 kg unit operates on a 3-phase 380-480 VAC supply delivering a Max. Power Consumption of 5950 W and a Max. Current Draw of 9.2 A at a rated speed of 1860 RPM. This High-performance unit achieves a Max. Air Flow of 7672.2 CFM (13035.0 m³/h / 217.25 m³/min) and a Max. Static Pressure of 109.11 mmH₂O (1070.0 Pa / 4.30 inAq). Featuring a comprehensive suite of intelligent technical features including an integrated PI controller, vibration sensor, and RS-485 MODBUS-RTU (V6.4) interface, this IP55-rated module is optimized for industrial VFD systems requiring precision airflow management and maximum energy efficiency at the end.

K3G560-PC10-L1 Fan Parameters
Model Number: K3G560-PC10-L1
Motor Model: M3G150-NA
Manufacturer: ebmpapst
Type: EC Centrifugal Fan (RadiPac, with support bracket)
Impeller Size: 560 mm
Dimensions: 800 x 800 x 638.5 mm
Weight: 61.0 kg
Bearing Type: Ball bearing
Phase: 3~
Nominal Voltage: 400 VAC
Voltage Range: 380 – 480 VAC
Frequency: 50/60 Hz
Connection Type: Terminal box
Max. Current Draw: 9.2 A
Max. Power Consumption: 5950 W
Rated Speed: 1860 RPM
Max. Air Flow: 7672.2 CFM (13035.0 m³/h / 217.25 m³/min)
Max. Static Pressure: 109.11 mmH₂O (1070.0 Pa / 4.30 inAq)
Working Air Flow: 13035.0 m³/h
Static Pressure Increase: 1070.0 Pa
Overall Efficiency (ηes): 67.4%
Leakage Current: <= 3.5 mA (Acc. to IEC 60990, Fig. 4)
Number of Blades: 5
Control Interface: 0-10 VDC / PWM / RS-485 MODBUS-RTU (V6.4)
Technical Features: Integrated PI controller; Vibration sensor; Soft start; Motor current limitation; External 15-50 VDC input (Parameterization); Voltage output 3.3-24 VDC (Pmax 800 mW); Alarm relay; Configurable I/Os; Line undervoltage / Phase failure detection; Passive PFC
Motor Protection: Electronic motor protection; Reverse polarity and locked-rotor protection
Insulation Class: Class F
Degree of Protection: IP55 / Protection class I
Housing Material: Die-cast aluminum (Electronics) / Galvanized sheet steel (Support plate/Inlet nozzle)
Impeller Material: Sheet aluminum
EMC Compliance: Immunity acc. to EN 61000-6-2; Emission acc. to EN 61000-6-4
Direction of Rotation: Clockwise (viewed toward rotor)
Ambient Temperature (Max.): 40 °C
Min. Operating Temperature: -40 °C (Permitted occasional start-up)
Standard Compliance: CE; EAC; UL 1004-7; CSA C22.2 No. 77; EN 61800-5-1

Application
The ebmpapst K3G560-PC10-L1 centrifugal fan is the primary cooling component for industrial frequency converters and modular air handling units requiring intelligent control, vibration monitoring, and high static pressure.
