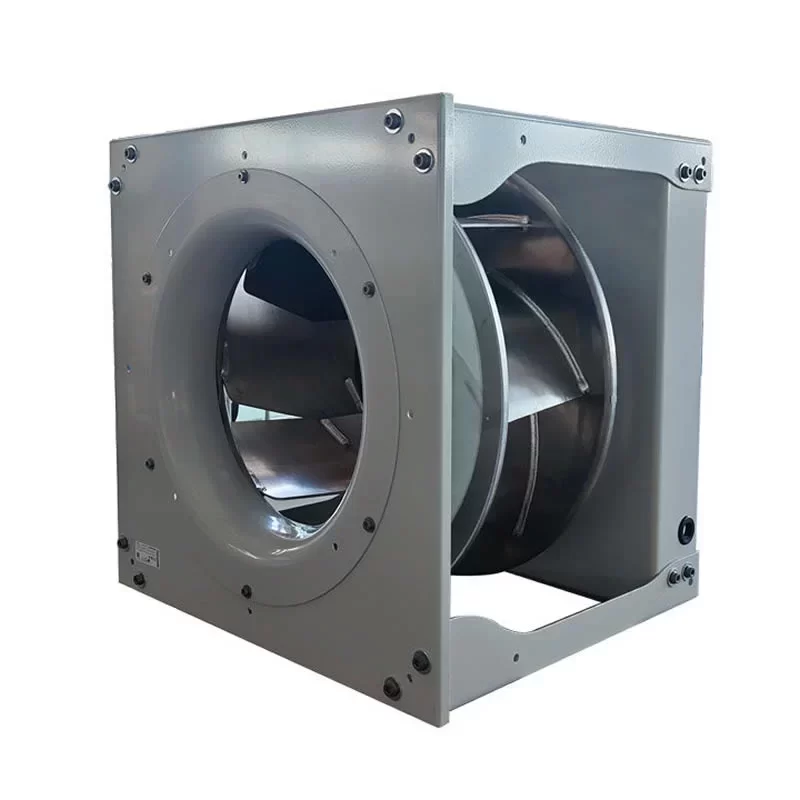

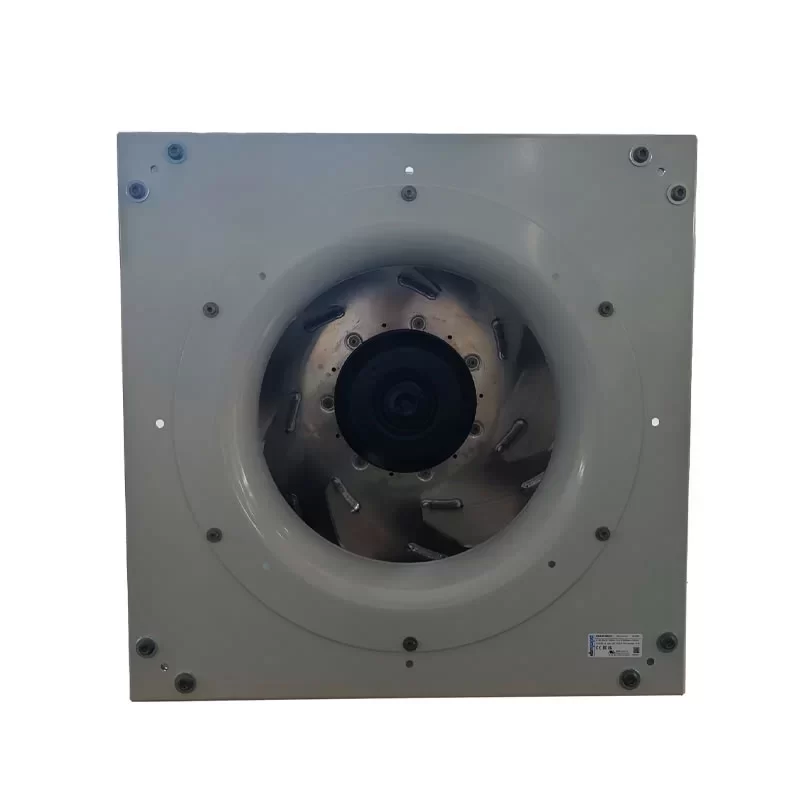

K3G630-AR02-01 ebmpapst 400VAC 630mm EC Centrifugal Fan

Description

The ebmpapst K3G630-AR02-01 is a high-efficiency RadiPac EC centrifugal fan unit with a nominal voltage of 400 VAC and an impeller size of 630 mm, specifically engineered for advanced thermal management in high-density data centers and large-scale industrial ventilation systems. Driven by a massive three-phase M3G200-HF EC external rotor motor with an integrated electronic control system and a power consumption of 6750 W, this unit features a heavy-duty ball bearing system designed for long-term mechanical stability and continuous S1 duty. Its aerodynamic design with 7 aluminum sheet blades delivers a massive airflow of 14635 m³/h at its rated speed of 1500 RPM, achieving a total pressure increase of 1016 Pa with an overall static efficiency of 63.5%. Constructed with a galvanized and plastic-coated (RAL 7035) steel support structure and an integrated PID controller with RS-485 MODBUS RTU interface, this 125 kg fan unit provides an intelligent and extremely powerful air-moving solution with IP54 protection and Class F insulation for precision air conditioning units, clean rooms, and large-scale industrial AHU infrastructure at the end.

K3G630-AR02-01 Fan Parameters
Model Number: K3G630-AR02-01
Manufacturer: ebmpapst
Motor Model: M3G200-HF
Series: RadiPac
Type: EC Centrifugal Fan
Impeller Size: 630 mm
Weight: 125 kg
Bearing Type: Ball bearing
Nominal Voltage: 400 VAC (3-phase)
Voltage Range: 380 – 480 VAC
Frequency: 50/60 Hz
Power Consumption: 6750 W
Nominal Current: 10.3 A
Speed: 1500 RPM
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Actual Air Flow: 14635 m³/h (@ optimum efficiency)
Actual Static Pressure: 1016 Pa (Total pressure increase pfs)
Overall Efficiency (ηes): 63.5 %
Motor Design: Three-phase EC external rotor motor
Electronics Housing: Die-cast aluminium
Motor Protection: Reverse polarity and locked-rotor protection
Insulation Class: Class F
Control Input: 0-10 VDC / PWM / RS-485 MODBUS RTU
Electrical Hookup: Terminal box
Number of Blades: 7
Direction of Rotation: Clockwise, viewed toward rotor
Impeller Material: Aluminium sheet
Inlet Nozzle Material: Sheet steel, galvanised and plastic-coated (RAL 7035)
Support Structure: Sheet steel, galvanised and plastic-coated (RAL 7035)
Installation Position: Shaft horizontal (base mounting) or rotor on bottom
Degree of Protection: IP54
Humidity Class: F4-1
Operating Temperature: -40 – +50 °C
Storage Temperature: -40 – +80 °C
Standard Compliance: EN 61800-5-1; CE
Approval Agency: GOST

Application
The ebmpapst K3G630-AR02-01 EC fan is primarily utilized in large-scale air handling units (AHU), data center cooling infrastructure, clean room ventilation, and high-pressure industrial heat recovery systems.
