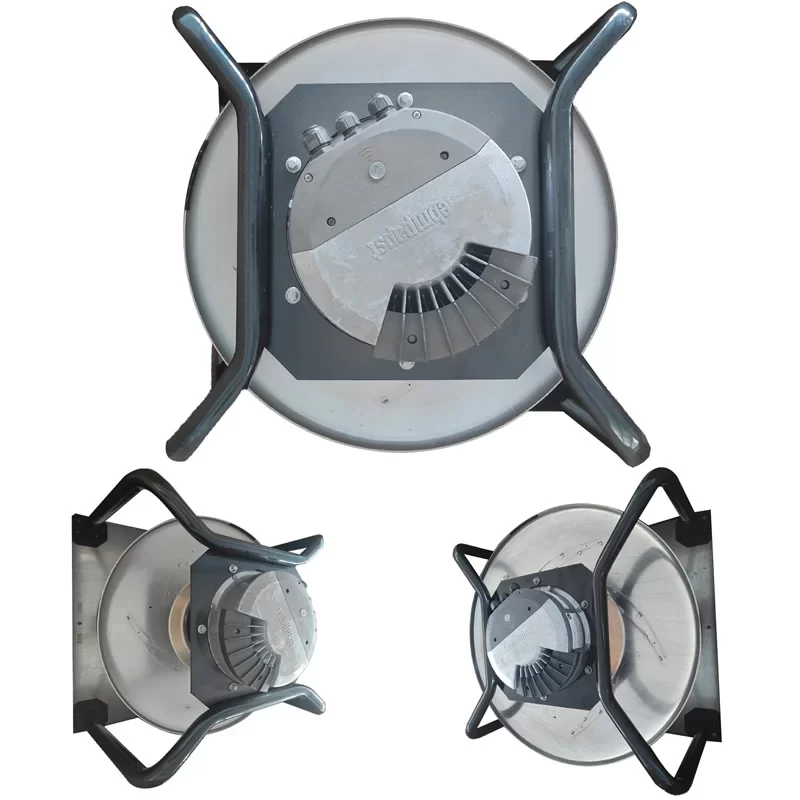

K3G630-PC04-L1 ebmpapst 400V EC Centrifugal Fan

Description

The K3G630-PC04-L1 is a powerful, three-phase EC Centrifugal Fan module from ebmpapst’s RadiPac series, featuring the M3G150-NA external rotor motor and a 630 mm aluminum impeller with 5 blades. It operates on a 400 VAC nominal voltage with a wide range of 380 to 480 VAC (50/60 Hz). The fan delivers an impressive airflow of 14,085 m3/h and a high static pressure of 868 Pa at 1,610 RPM, consuming 5,250 W. The unit is highly robust with IP55 protection and H1 environmental rating, and features advanced EC technology including a MODBUS RTU interface, an integrated PI controller, and comprehensive electronic motor protection, making it ideal for large, complex HVAC systems.

K3G630-PC04-L1 Fan Parameters
Model: K3G630-PC04-L1
Manufacturer: ebmpapst
Fan Type: EC Centrifugal Fan
Dimensions (Impeller Diameter): 630 mm
Motor Size: 150 mm
Nominal Voltage: 400 VAC
Operating Voltage Range: 380 to 480 VAC
Phase: 3∼
Frequency: 50/60 Hz
Rated Current: 8.1 A
Rated Power: 5,250 W
Rated Speed: 1,610 RPM
Airflow: 14,085 m3/h
Static Pressure: 868 Pa
Bearing System: Ball Bearing
Motor: M3G150-NA External Rotor Motor
Ingress Protection: IP55
Weight: 60.5 Kg
Ambient Temperature: −40∘C to +40∘C
Number of blades: 5
Direction of rotation: Clockwise, viewed toward rotor
Insulation Class: “F”
Moisture/Environmental Protection Class: H1
Electrical Hookup: Terminal box
Touch Current: ≤3.5 mA

Materials
Rotor Surface: Painted black
Electronics Housing Material: Die-cast aluminum
Impeller Material: Sheet aluminum
Support Plate Material: Sheet steel, galvanized
Support Bracket Material: Steel, painted black
Inlet Nozzle Material: Sheet steel, galvanized

Technical Features
Motor Protection: Electronic motor protection
Control/Monitoring: RS−485 MODBUS−RTU, Integrated PI controller, Configurable I/O, Alarm relay, Vibration sensor, Soft start, Thermal overload protection, Line undervoltage/phase failure detection, Operation/alarm LED display.

Application
The K3G630-PC04-L1 is a heavy-duty air movement solution intended for demanding industrial and commercial HVAC applications. Its high static pressure capability, high IP and H protection classes, and wide operating temperature range make it perfect for deployment in large air handling units (AHU), rooftop units, and FanGrid systems within data centers, commercial buildings, and cleanroom environments, where energy efficiency, precise control (via MODBUS), and operational reliability are critical.
