Description

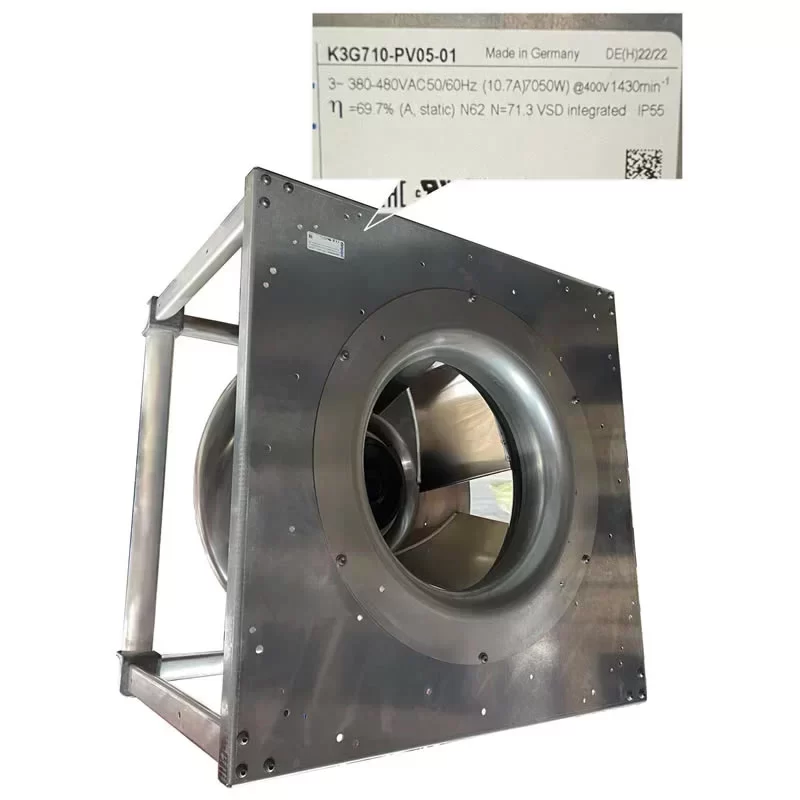

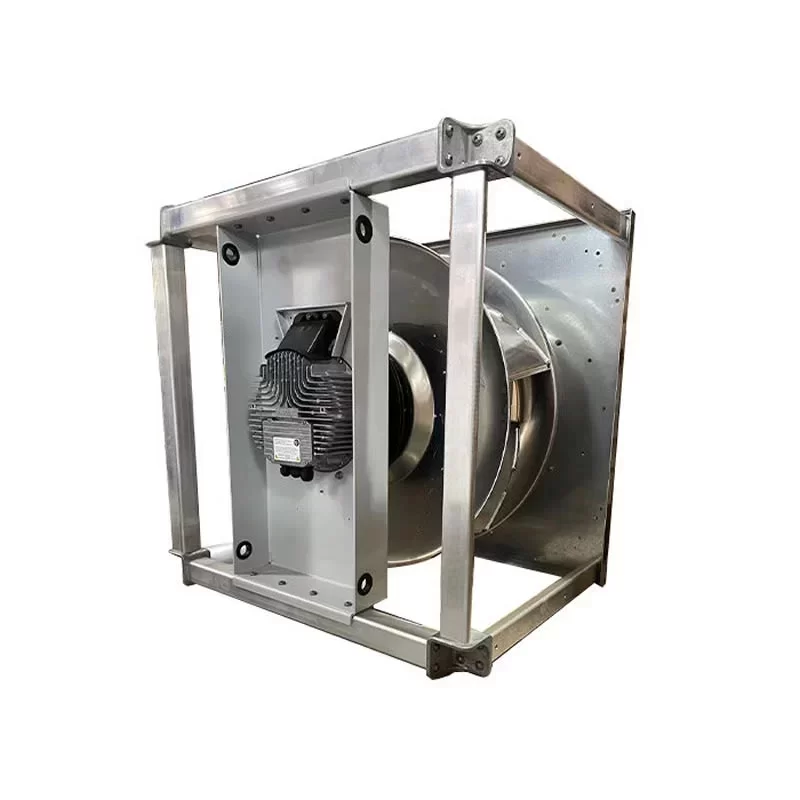

The ebmpapst K3G710-PV05-01 is an ultra-high-performance 400VAC EC Centrifugal Fan featuring the RadiPac series backward-curved, single-intake impeller with a reinforced cube design, specifically engineered for mission-critical cooling in large-scale Industrial Frequency Converters and AHU systems. Driven by a high-efficiency M3G200-LA GreenTech EC motor with integrated power electronics, this 120.6 kg unit operates on a 3-phase 380-480 VAC supply delivering a Max. Power Consumption of 7050 W and a Max. Current Draw of 10.7 A at a rated speed of 1430 RPM. This High-performance unit achieves a Max. Air Flow of 10759.3 CFM (18280.0 m³/h / 304.67 m³/min) and a Max. Static Pressure of 94.84 mmH₂O (930.0 Pa / 3.73 inAq). Featuring a comprehensive suite of intelligent technical features including an integrated PID controller, RS-485 MODBUS-RTU interface, and active PFC, this IP55-rated module is optimized for industrial VFD systems requiring maximum energy efficiency and precision airflow management at the end.
K3G710-PV05-01 Fan Parameters
Model Number: K3G710-PV05-01
Motor Model: M3G200-LA
Manufacturer: ebmpapst
Type: EC Centrifugal Fan (RadiPac, Cube design)
Impeller Size: 710 mm
Dimensions: 960 x 960 x 750 mm (Module assembly)
Weight: 120.6 kg
Bearing Type: Ball bearing (Sealed, maintenance-free)
Phase: 3~
Nominal Voltage: 400 VAC
Voltage Range: 380 – 480 VAC
Frequency: 50/60 Hz
Connection Type: Terminal box (Integrated EC controller)
Max. Current Draw: 10.7 A
Max. Power Consumption: 7050 W
Rated Speed: 1430 RPM
Max. Air Flow: 10759.3 CFM (18280.0 m³/h / 304.67 m³/min)
Max. Static Pressure: 94.84 mmH₂O (930.0 Pa / 3.73 inAq)
Working Air Flow: 18280.0 m³/h
Static Pressure Increase: 930.0 Pa
Overall Efficiency (ηes): 69.7%
Number of Blades: 5
Control Interface: 0-10 VDC / PWM / RS-485 MODBUS-RTU
Technical Features: Integrated PID controller; Soft start; Active PFC; Motor current limitation; External 24 V input (Parameter setting); Alarm relay; Line undervoltage / Phase failure detection; EEPROM write cycles (min. 100,000)
Motor Protection: Thermal overload protection; Reverse polarity and locked-rotor protection
Insulation Class: Class F
Degree of Protection: IP55 / Protection class I
Housing Material: Die-cast aluminum (Electronics) / Galvanized sheet steel (Cube frame/Inlet nozzle)
Impeller Material: Sheet aluminum
Direction of Rotation: Clockwise (viewed toward rotor)
Ambient Temperature (Max.): 40 °C
Min. Operating Temperature: -40 °C (Permitted occasional start-up)
Standard Compliance: CE; EAC; UL 1004-7; CSA C22.2 No. 77; EN 61800-5-1
Application
The ebmpapst K3G710-PV05-01 centrifugal fan is the primary cooling component for large-scale industrial frequency converters and modular air conditioning systems requiring intelligent control, IP55 environmental protection, and maximum static pressure.
