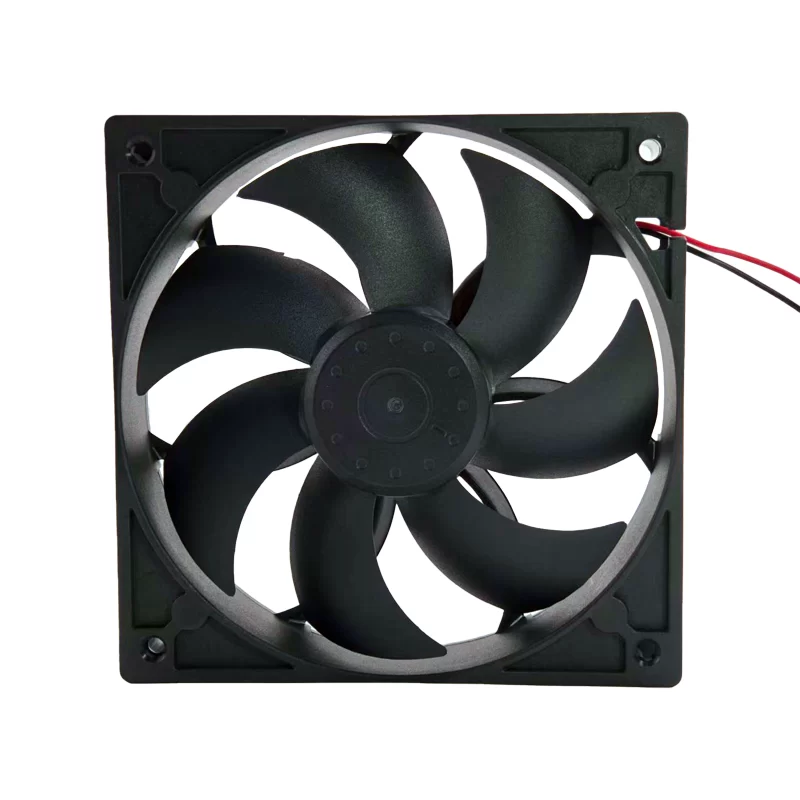

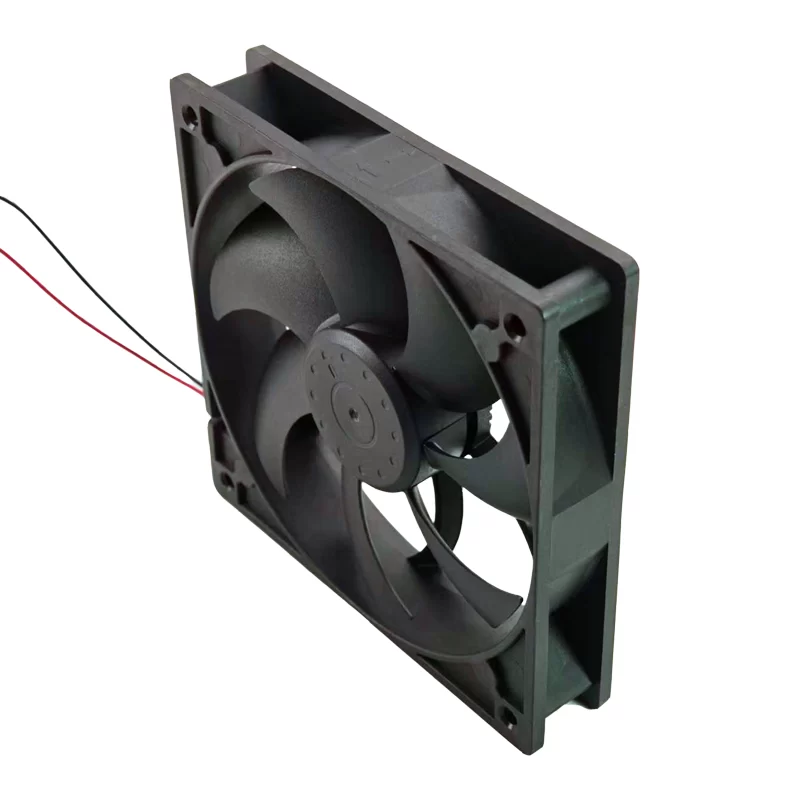

KA1225-3000D24B KAKU 24V 0.29A 120x120x25mm DC Axial Fan

Description

The KAKU KA1225-3000D24B is a high-performance 24 V industrial axial fan with dimensions of 120 x 120 x 25 mm, purpose-built to deliver elite-level thermal cooling in high-resistance airflow paths. This unit features a heavy-duty brushless DC motor capable of sustaining a 6.96 W power input to drive its specialized high-velocity impeller at a consistent 3000 RPM. Engineered specifically for air displacement in standard-profile enclosures, it utilizes a 25 mm housing to provide superior static pressure for localized hot-spot cooling in mission-critical hardware. The mechanical design relies on precision maintenance-free ball bearings and a fiberglass-reinforced PBT housing to ensure stable operation in demanding industrial environments. Featuring a robust 2-wire electrical interface for direct power connection, this fan is a critical component for industrial control cabinets, telecommunications racks, and high-capacity power supplies where reliability and standard form-factor compatibility are mandatory.

KA1225-3000D24B Fan Parameters
Manufacturer: KAKU
Model Number: KA1225-3000D24B
Series: KA1225 Series
Industry Size Code: 12025
Type: DC Axial Fan
Bearing Type: Ball Bearing
Nominal Voltage: 24 VDC
Voltage Range: 14.0 – 27.6 VDC
Starting Voltage: 12 VDC
Dimensions: 120 x 120 x 25 mm
Weight: 146 g

[Electrical Data]
Input Power: 6.96 W
Nominal Current: 0.29 A
Max. Current: 0.38 A (Startup surge)
Nominal Speed: 3000 RPM
Motor Design: Brushless DC Motor
Signal Output: None (2-Wire configuration)
Motor Protection: Polarity protection, Locked rotor protection
Insulation Class: Class A
Insulation Resistance: >10M ohm at 500 VDC
Termination: 2-Lead wires (UL1007, AWG 24)

[Performance & Acoustics]
Max. Air Flow: 108.0 CFM (183.5 m³/h / 3.06 m³/min)
Max. Static Pressure: 9.18 mmH₂O (90.0 Pa / 0.36 inH₂O)
Sound Pressure Level: 45 dB(A)
Number of Blades: 7
Direction of Rotation: Counter-clockwise (Viewed toward rotor)
Airflow Direction: Exhaust over struts
Mode of Operation: S1 (Continuous operation)

[Materials & Construction]
Frame Material: Plastic (PBT reinforced with glass fiber, UL94V-0)
Impeller Material: Plastic (PBT reinforced with glass fiber, UL94V-0)
Installation Position: Any
Degree of Protection: IP20

[Reliability & Safety Standards]
Min. Ambient Temperature: -10 °C
Max. Ambient Temperature: 70 °C
Storage Temperature: -40 °C – 75 °C
Life Expectancy: 50,000 hours at 40 °C
Standard Compliance: UL, CE, RoHS
Approval Agency: UL, CUL, CE

Application
The KAKU KA1225-3000D24B axial fan is used in industrial control cabinets, server enclosures, power supply units, automation machinery, and telecommunications equipment.
