Description

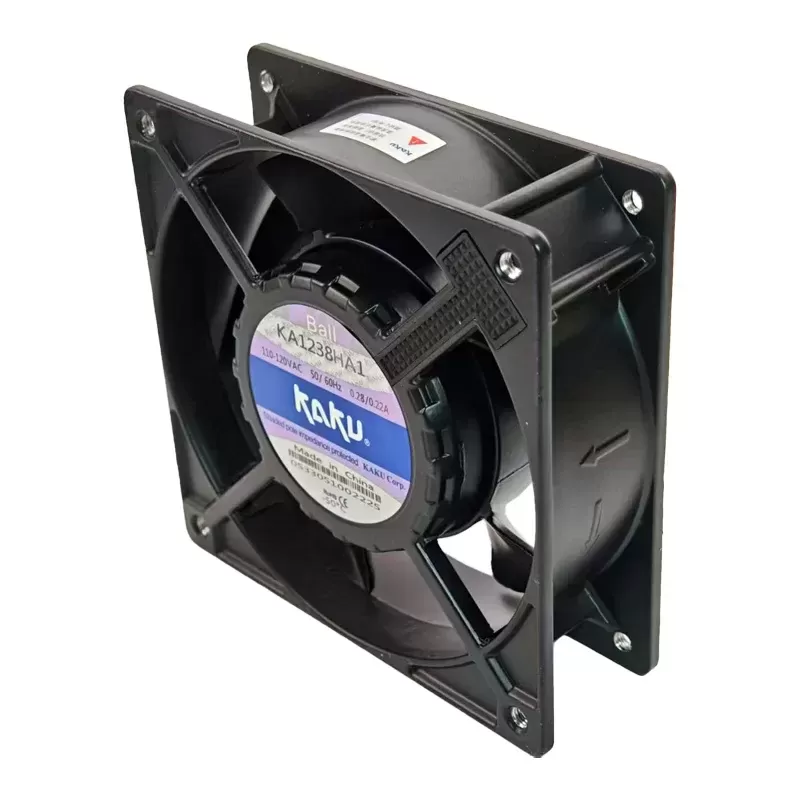

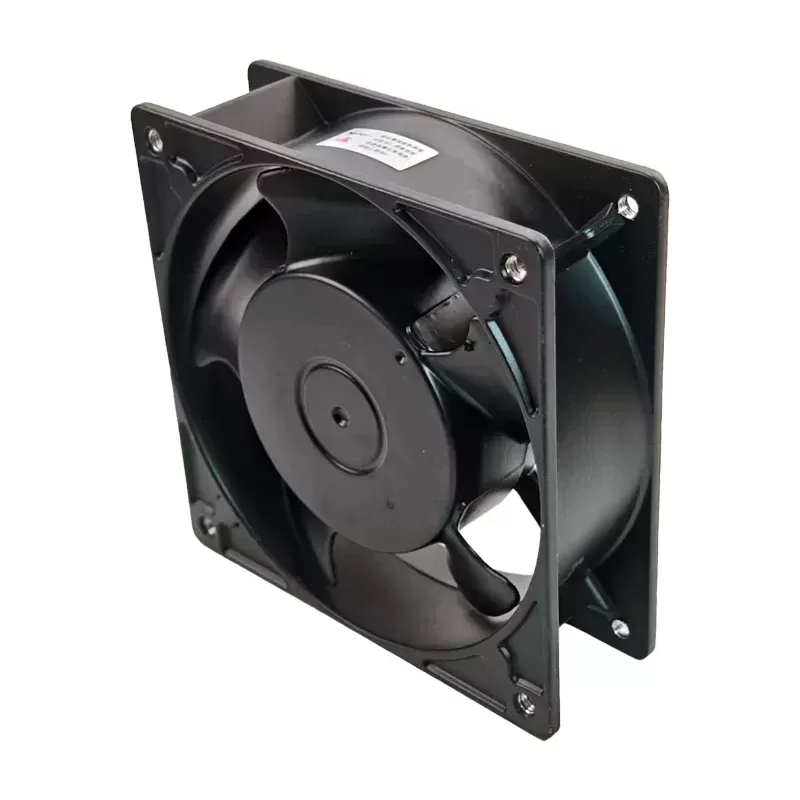

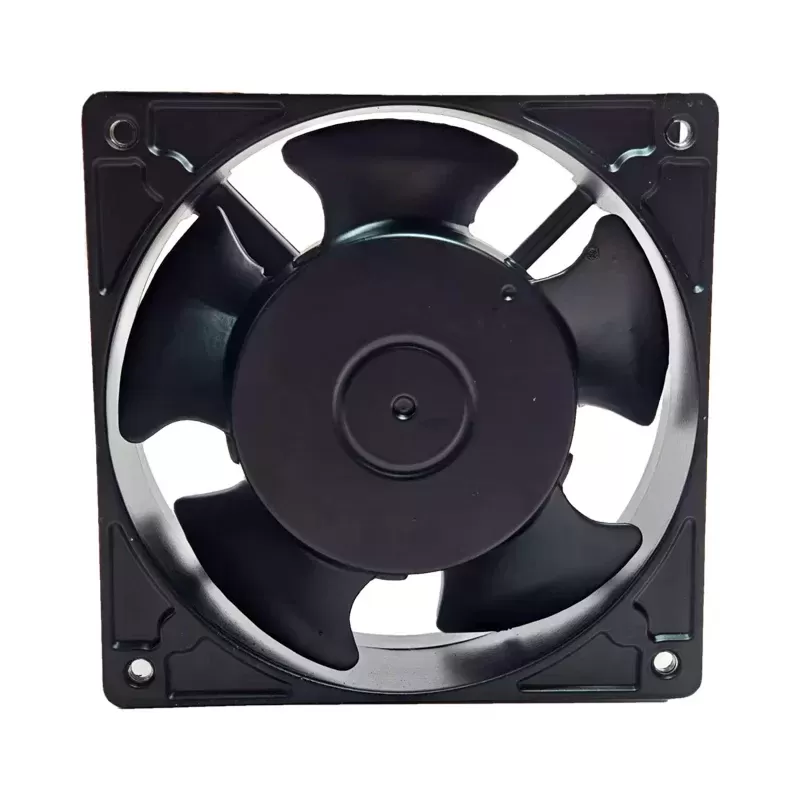

The KAKU KA1238HA1 is an AC axial fan measuring 120x120x38mm. It operates on 110-120 VAC at both 50 Hz and 60 Hz frequencies, drawing 0.28 A of current at 50 Hz and 0.22 A at 60 Hz. Power consumption is 32.2 W at 50 Hz and 25.3 W at 60 Hz. This fan provides an airflow of 80 CFM at 50 Hz and 100 CFM at 60 Hz. It is equipped with ball bearings for durable operation and features 2-pin or lead wire termination. This model is commonly used for general cooling purposes in various electronic equipment and industrial applications.
KA1238HA1 Fan Parameters
Model: KA1238HA1
Manufacturer: KAKU
Type: AC Axial Fan
Dimensions: 120x120x38 mm
Rated Voltage: 110-120 VAC
Frequency: 50 Hz / 60 Hz
Rated Current (50Hz / 60Hz): 0.28 A / 0.22 A
Power Consumption (50Hz / 60Hz): 32.2 W / 25.3 W
Airflow (50Hz / 60Hz): 80 CFM / 100 CFM
Bearing Type: Ball Bearing
Termination: 2-pin or Lead Wire
Application: Electronic equipment, industrial cooling.
