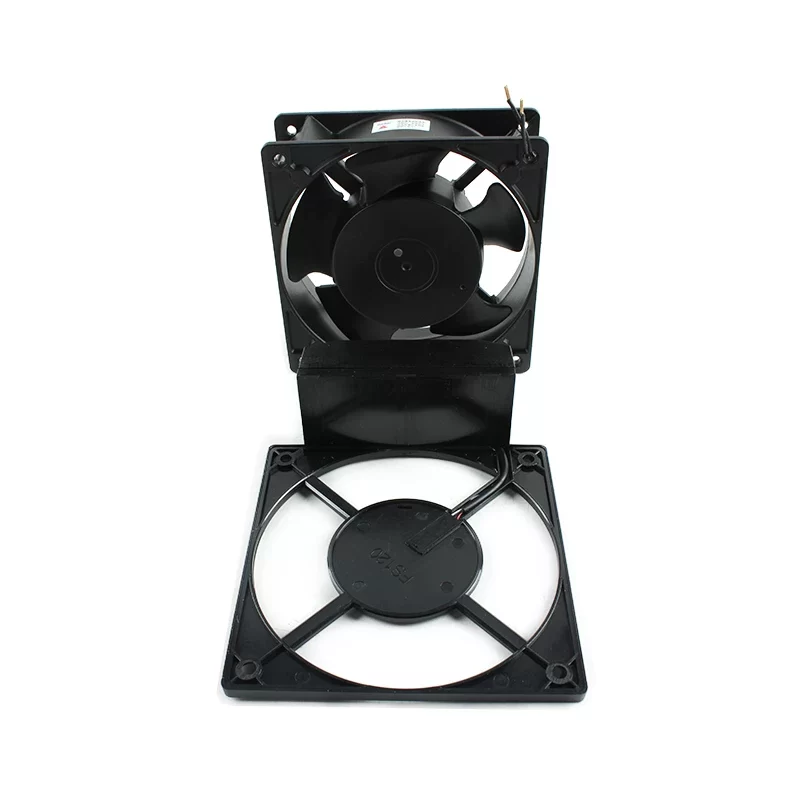

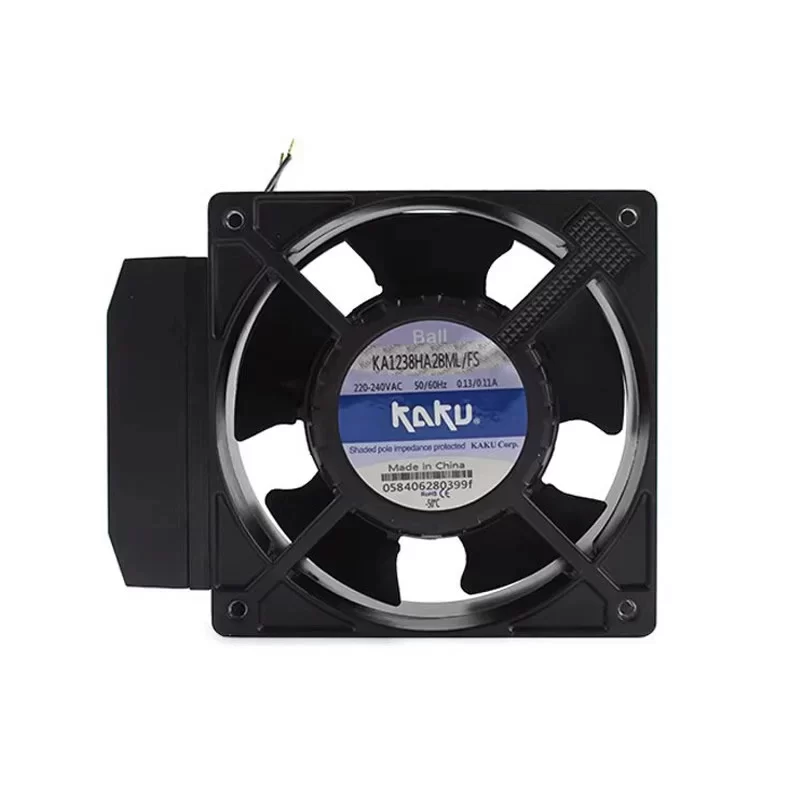

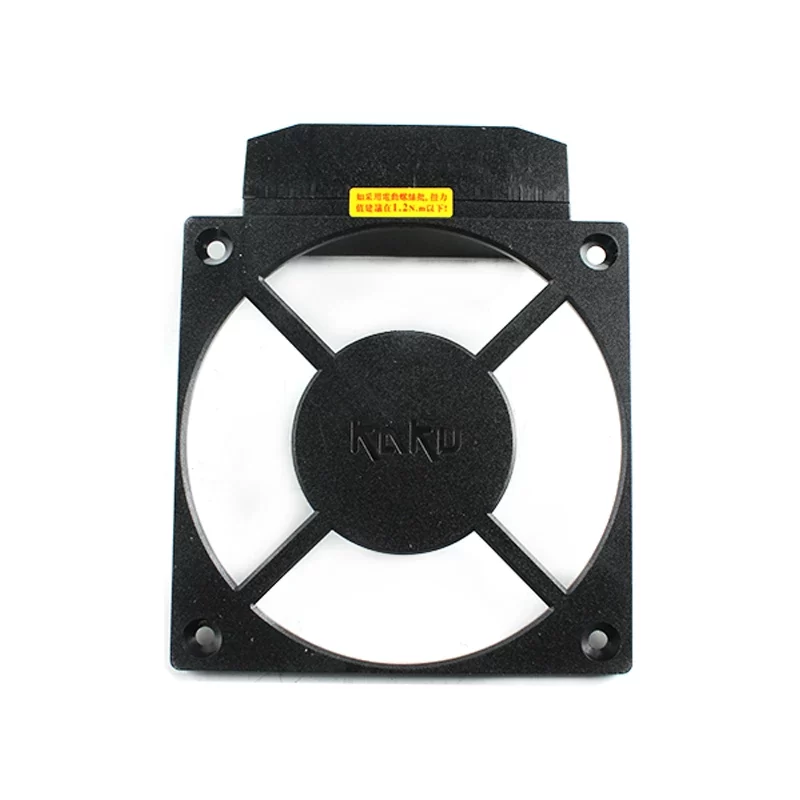

KA1238HA2BML/FS KAKU 230V 120mm AC Fan with Failure Alarm

Description

The KAKU KA1238HA2BML/FS is a high-performance 230 V industrial AC axial fan with dimensions of 120 x 120 x 38 mm, integrated with the FS120B/C Failure Alarm system. This unit is purpose-built to deliver elite-level thermal cooling in high-resistance airflow paths while providing real-time monitoring of fan operation. It features a heavy-duty shaded-pole motor capable of sustaining a 21 W power input (at 50 Hz) or 18 W (at 60 Hz) to drive its specialized high-velocity impeller at speeds of 2700 RPM or 3100 RPM respectively. Engineered specifically for air displacement in mission-critical hardware environments, it utilizes a 38 mm deep die-cast aluminum housing and the FS120B/C electronic alarm module to provide balanced pressure and immediate notification of rotation failure. The mechanical design relies on precision maintenance-free ball bearings and a black-painted frame to ensure reliable continuous operation across an ambient temperature range of -20 °C to 70 °C. Featuring a robust lead wire interface and thermal impedance protection, this fan is a critical component for industrial control cabinets, server racks, and high-security power systems where long-term reliability and active status monitoring are mandatory.

KA1238HA2BML/FS Fan Parameters
Manufacturer: KAKU
Fan Model Number: KA1238HA2BML/FS
Alarm Model Number: FS120B/C
Series: KA Series (Monitor Integrated)
Industry Size Code: 12038
Type: AC Axial Fan with Failure Alarm
Bearing Type: Ball Bearing
Nominal Voltage: 230 VAC
Voltage Range: 220 – 240 VAC
Frequency: 50/60 Hz
Weight: 460 g

[Electrical Data]
Input Power: 21 W (50 Hz) / 18 W (60 Hz)
Nominal Current: 0.13 A (50 Hz) / 0.11 A (60 Hz)
Nominal Speed: 2700 RPM (50 Hz) / 3100 RPM (60 Hz)
Motor Design: Shaded-Pole Induction Motor
Alarm Function: Built-in failure detection (FS120B/C)
Motor Protection: Thermal impedance protected
Insulation Class: Class B
Termination: Lead wires

[Performance & Acoustics]
Max. Air Flow: 100.0 CFM (170.0 m³/h / 2.83 m³/min)
Max. Static Pressure: 8.64 mmH₂O (84.7 Pa / 0.34 inH₂O)
Sound Pressure Level: 45 dB(A) (50 Hz) / 51 dB(A) (60 Hz)
Number of Blades: 5
Direction of Rotation: Counter-clockwise (Viewed toward rotor)
Airflow Direction: Intake over struts
Mode of Operation: S1 (Continuous operation)

[Materials & Construction]
Frame Material: Die-cast aluminum, painted black
Impeller Material: Thermoplastic PBT (UL94V-0)
Alarm Module: Integrated electronic sensor
Installation Position: Any
Degree of Protection: IP20

[Reliability & Safety Standards]
Min. Ambient Temperature: -20 °C
Max. Ambient Temperature: 70 °C
Storage Temperature: -40 °C – 80 °C
Life Expectancy: 50,000 hours at 40 °C
Standard Compliance: CE, RoHS
Approval Agency: UL, TUV, CE

Application
The KAKU KA1238HA2BML/FS axial fan is used in high-security industrial control cabinets, data center server racks, telecommunications base stations, medical equipment ventilation, and uninterruptible power supplies (UPS).
