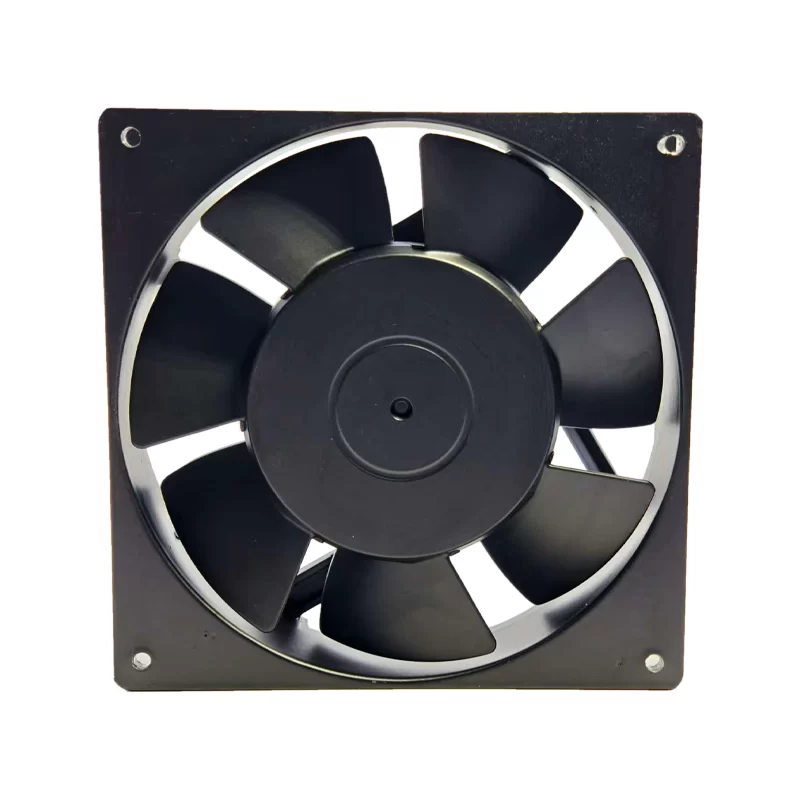

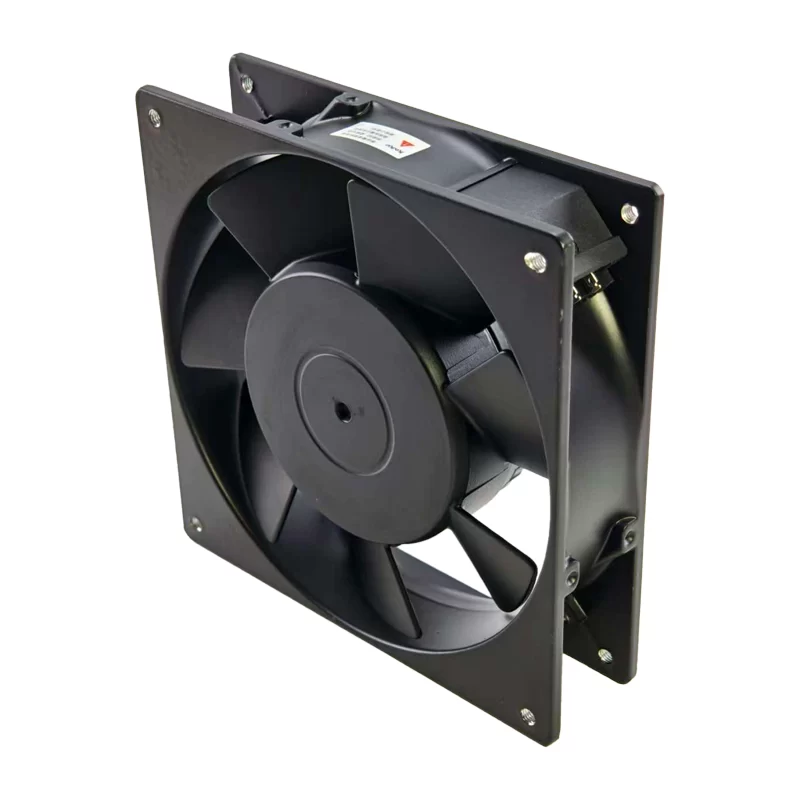

KA1523HA2 KAKU 230V AC Axial fan

Description

The KAKU KA1523HA2 is an AC axial fan designed for high-performance cooling applications. It features dimensions of 150 x 150 x 38 mm and operates on 230V across 50/60Hz. This fan has a power consumption of 44/35W and draws 0.19/0.17A of current, respectively. It delivers airflow at 140/168 CFM (equivalent to 2.38/2.85 m³/min) and provides static pressure of 0.48/0.77 inch H₂O (equivalent to 120/192 Pa). The fan operates at speeds of 2300/2500 RPM, with noise levels of 55/56 dB(A). It utilizes a ball bearing for durability and has a weight of 630g. The fan is equipped with two terminals for connection.

KA1523HA2 Fan Parameters
Manufacturer: KAKU
Model: KA1523HA2
Fan Type: AC Axial Fan
Dimensions: 150 x 150 x 38 mm
Rated Voltage: 230V
Frequency: 50/60 Hz
Label Current: 0.19 / 0.17 A
Current Rating: 0.27 / 0.22 A
Power Consumption: 44 / 35 W
Airflow: 140 / 168 CFM
Airflow (Metric): 2.38 / 2.85 m³/min
Static Pressure: 0.48 / 0.77 inch H₂O
Static Pressure (Metric): 120 / 192 Pa
Speed: 2300 / 2500 RPM
Noise Level: 55 / 56 dB(A)
Weight: 630 g
Bearing Type: Ball bearing
Termination: 2 Terminals
Housing Material: Metal frame
Impeller Material: Plastic blades
Operating Temperature: -30 °C to +60 °C

Application
The KA1523HA2 fan is designed for applications requiring significant airflow and pressure, such as in industrial machinery, HVAC systems, industrial control cabinets, and equipment requiring forced ventilation.
