Description

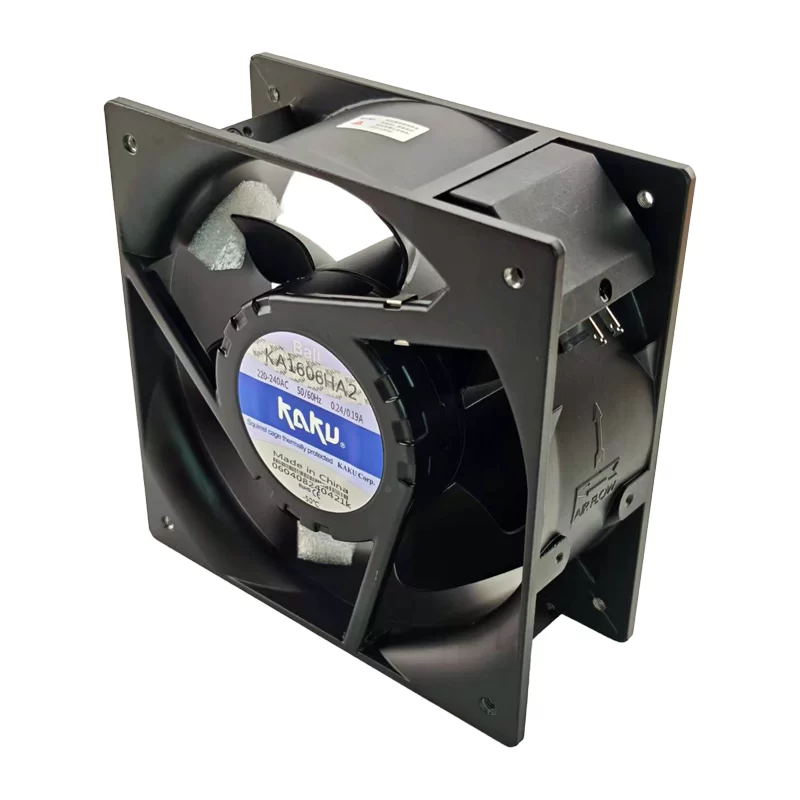

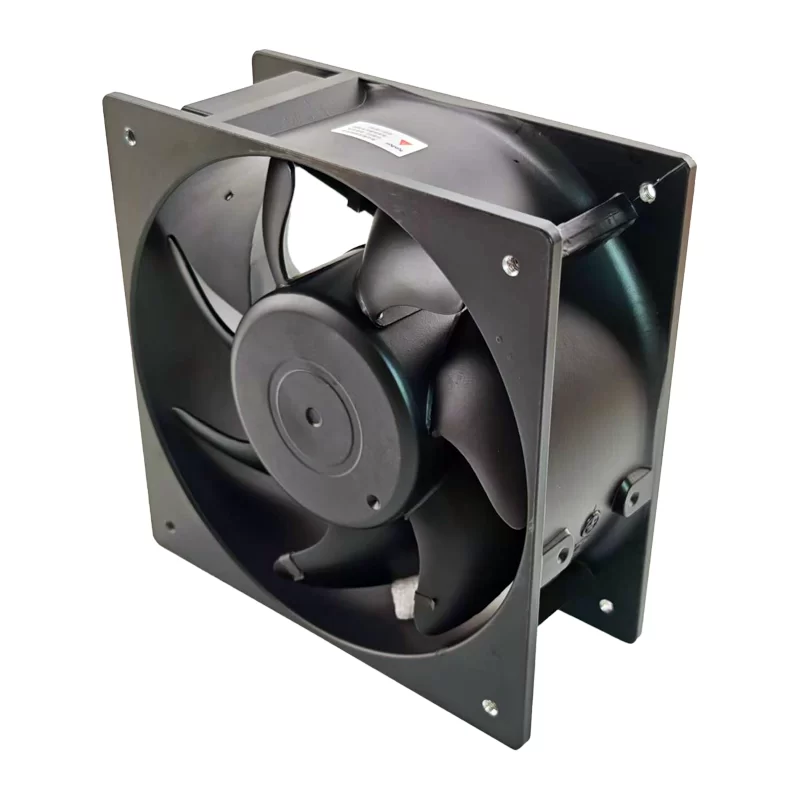

The KAKU KA1606HA2 is a robust 160x160x65mm AC axial fan designed for industrial cooling and ventilation applications where dust and moisture resistance are required. Operating on a 220V to 240V AC power supply at both 50Hz and 60Hz, this fan precisely draws 0.24A (50Hz) or 0.19A (60Hz) of current. This translates to a power consumption of approximately 55.2W (50Hz) or 43.7W (60Hz). It achieves rotational speeds of 2800 RPM (50Hz) and 3300 RPM (60Hz), delivering significant airflow. With a low noise level of 59 dB(A) (50Hz) or 63 dB(A) (60Hz) and utilizing a durable ball bearing system, this model is built for long-term reliability in harsh environments.
KA1606HA2 Fan Parameters
Model Number: KA1606HA2
Manufacturer: KAKU
Type: AC Axial Fan
Dimensions: 160mm x 160mm x 65mm (16065)
Rated Voltage: 220-240 VAC
Frequency: 50 Hz / 60 Hz
Rated Current: 0.24A (50Hz) / 0.19A (60Hz)
Rated Power: 55.2 W (50Hz) / 43.7 W (60Hz)
Speed: 2800 RPM (50Hz) / 3300 RPM (60Hz)
Airflow: 259 CFM (50Hz) / 302 CFM (60Hz)
Static Pressure: 0.58 in H2O (50Hz) / 0.65 in H2O (60Hz)
Noise Level: 59 dB(A) (50Hz) / 63 dB(A) (60Hz)
Bearing Type: Ball Bearing
Blade Material: Magnesium alloy
Protection: IP55 (dust-proof, water-proof)
Connection: Terminals
Weight: 1130 g
Application: Industrial machinery, electrical cabinets, power supplies, manufacturing plants, general ventilation in harsh environments.
