Description

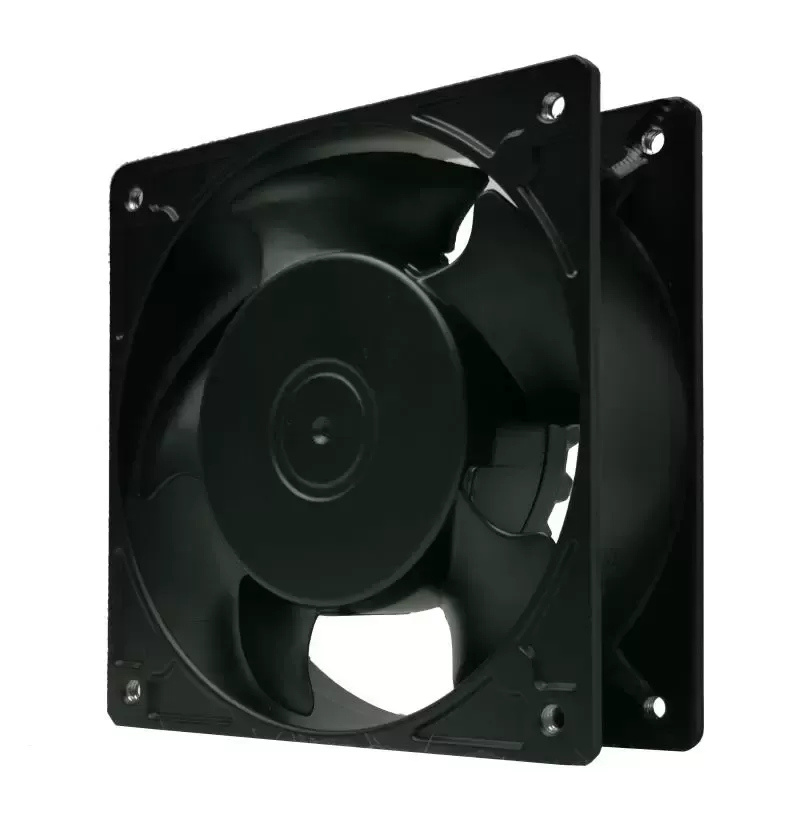

Model: KA1238HA2
Dimensions: 120x120x38mm
Voltage: 220/240V
Current/Power: 0.13/0.11A
Air Volume: 80/100CFM
Air Pressure: 0.303INH20
Speed: 2700/3100RPM
Noise: 49/51dB(A)
Weight: 460G
Lifespan: 30000H
Bearing Structure: Ball Bearing
Wiring: Terminal
Temperature Range: -20°C to +80°C
Frame: Magnesium Alloy
Taiwan original Taiwan KAKU FU-9803C FU-9803A KA1238HA2B full metal double ball fan
Here is the technical specification for KAKU FU-9803C/FU-9803A/KA1238HA2B in English:
I. Core Component Configuration
FU-9803C Fan Assembly
Combination of FU-9803A filter unit and KA1238HA2B axial fan
Available in ball bearing or sleeve bearing versions, supports blade/lead wire connection
FU-9803A Filter Unit
Frame material: ABS resin (flame-retardant, UV-resistant)
Filter media: Imported nylon fiber composite resin, 80% dust removal efficiency
Compatible fans: KA1238HA2B (120×120×38mm) etc.
KA1238HA2B Axial Fan
Voltage: AC220V±10% (50/60Hz)
Power: 21W (50Hz)/18W (60Hz)
Dimensions: 120×120×38mm
Bearing: Ball bearing
Speed: 2700r/min (50Hz)/3100r/min (60Hz)
Airflow: 84CFM (50Hz)/100CFM (60Hz)
Noise: 49dB (50Hz)/51dB (60Hz)
II. Performance & Certification
Insulation class: F (155℃ rated)
Lifetime: 35,000 hours L10 at 25℃
Protection rating: IP44 (louver design)
III. Extended Compatibility
Can be paired with FU-9801A P3 protective cover for enhanced protection
For 380V version, select KA1238HA3 model
Note: All specifications are based on standard operating conditions at sea level. Performance may vary with environmental factors.
