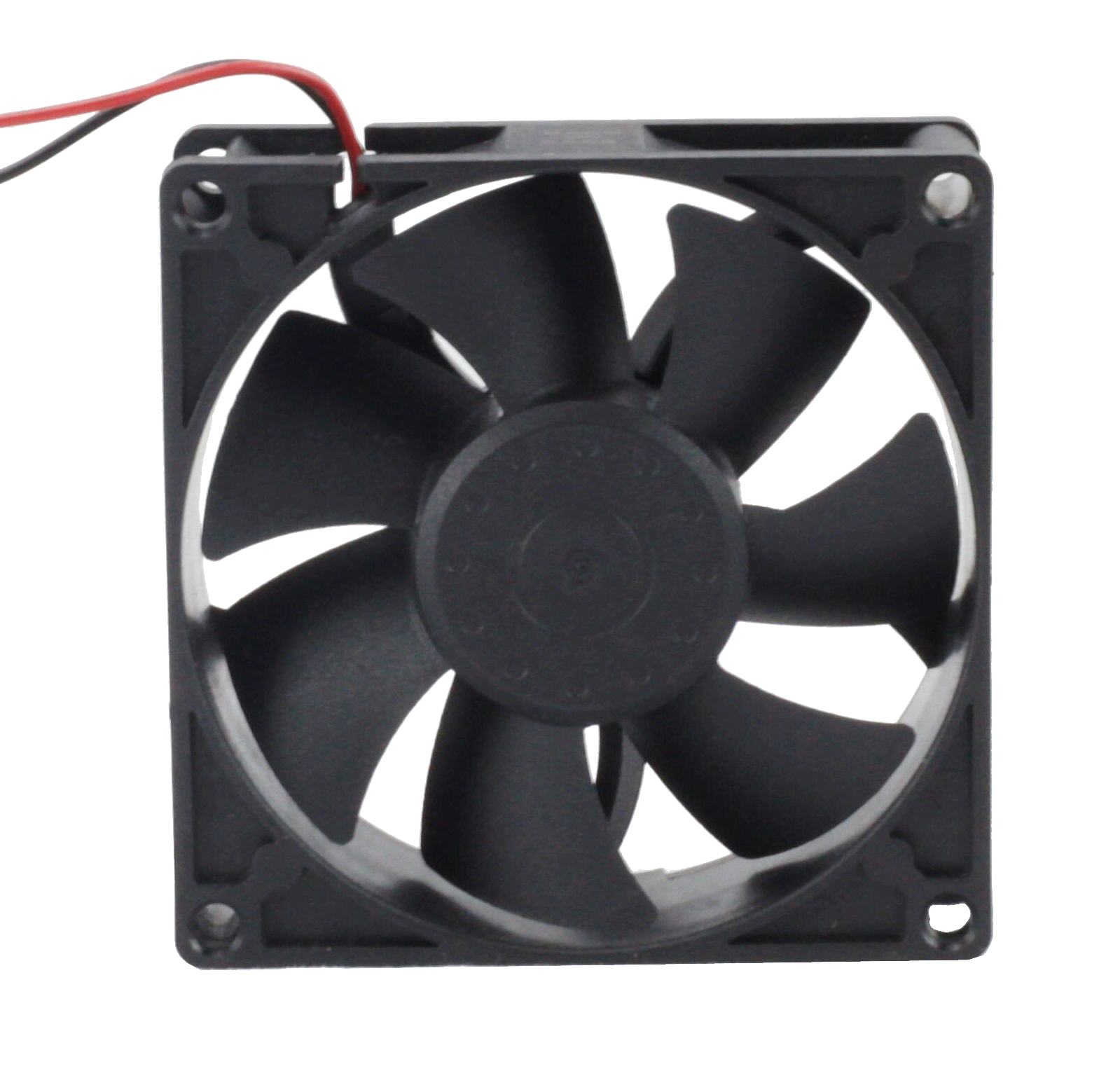

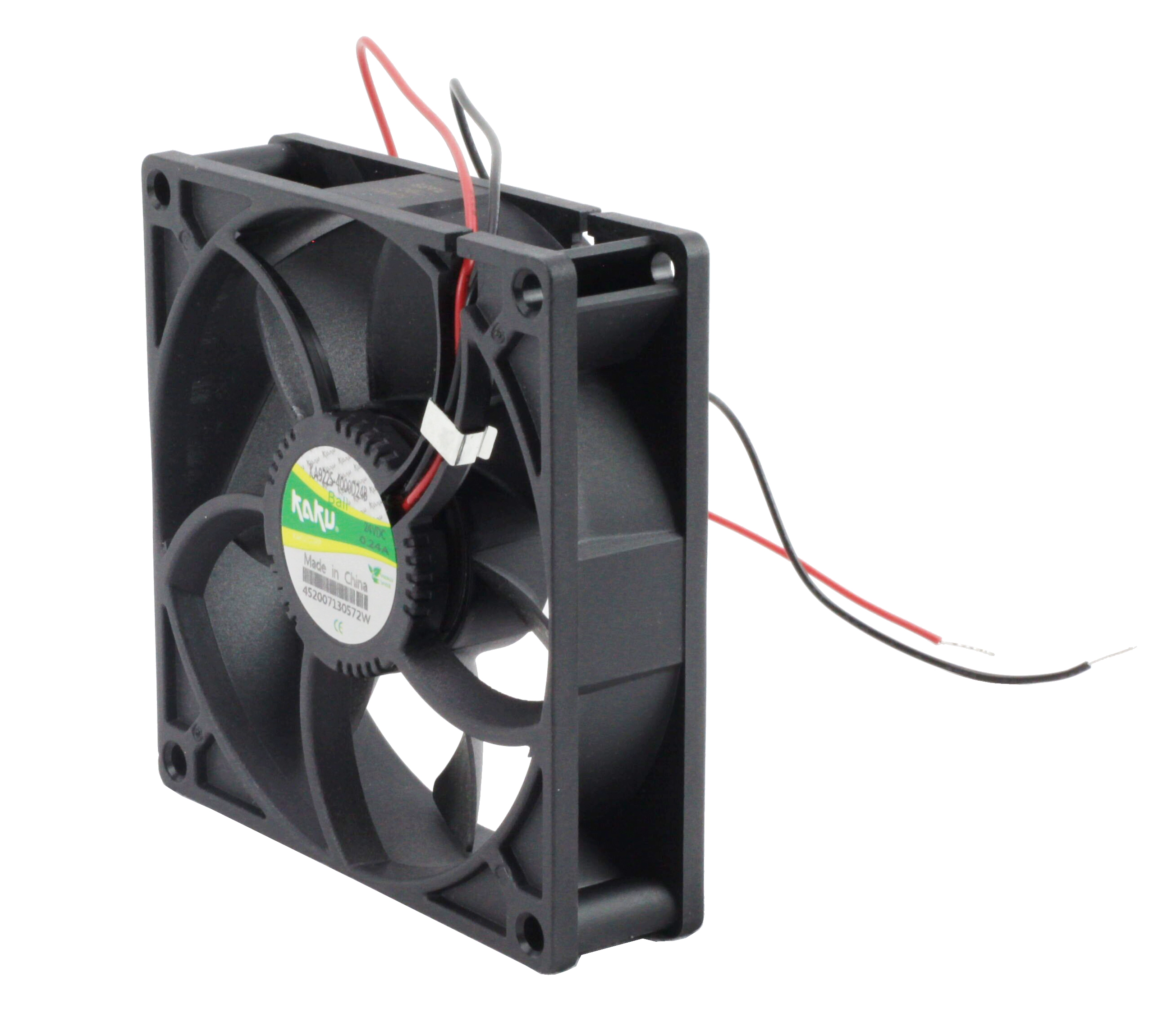

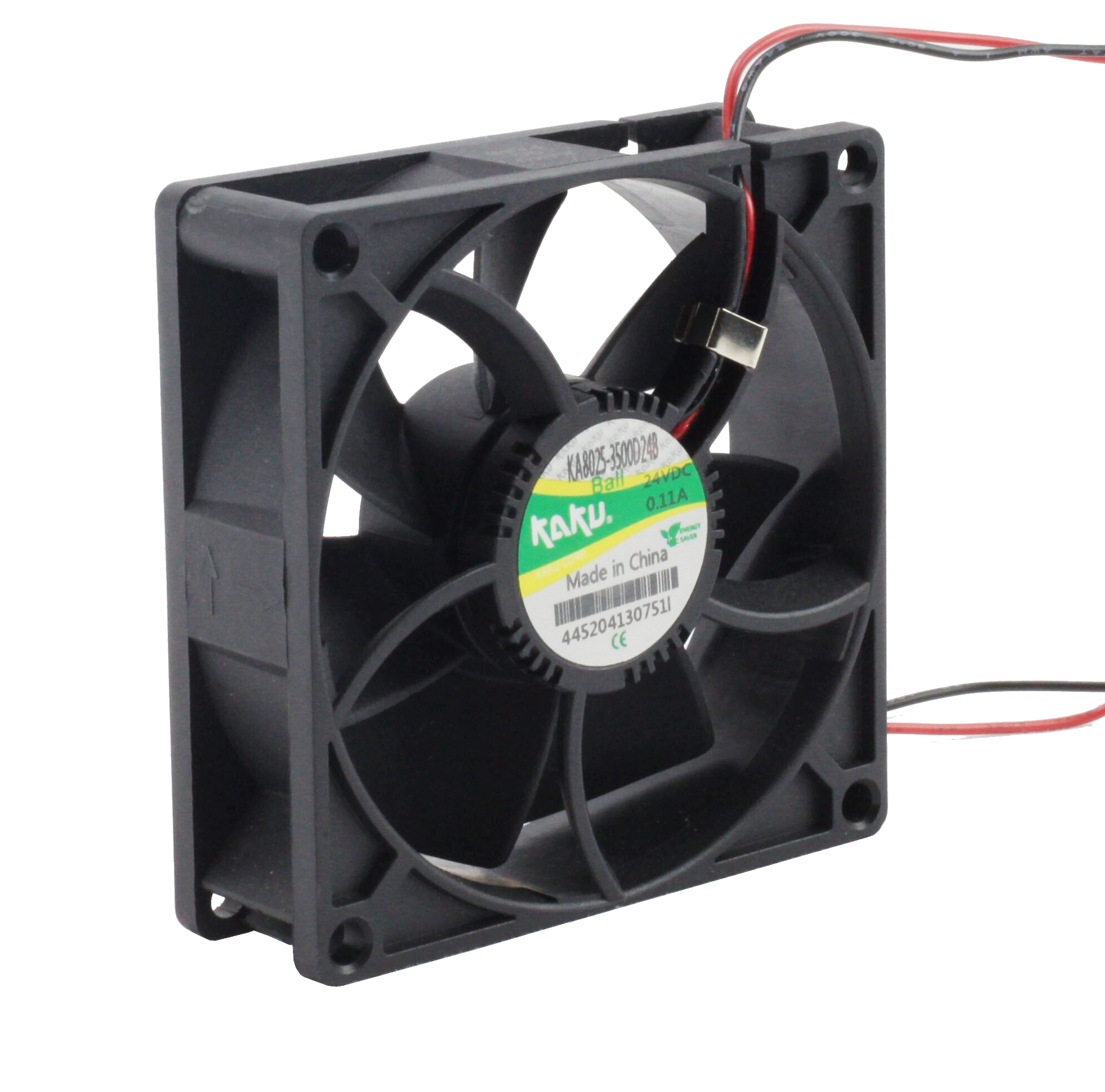

KAKU KA8025-3500D24B DC24V dual ball bearing 0.11A inverter fan

Description

Brand new original KAKU KA8025-3500D24B DC24V dual ball bearing 0.11A inverter fan
Model Number: KA8025-3500D24B
Manufacturer: KAKU
Fan Type: DC Brushless Axial Fan
Dimensions L x H x W: 80 mm x 80 mm x 25 mm
Rated Voltage: 24 VDC
Rated Current: 0.11 A – 0.12 A
Input Power: Approximately 2.64 W – 2.88 W
Wiring: 2 Wire Leads
Bearing Type: Sleeve Bearing
Rotational Speed RPM: 3500 RPM
Noise Level: Moderate, typically around 30-40 dB
Frame Material: Plastic
Impeller Blade Material: Plastic
Protection Functions: Electronically Protected

The KA8025-3500D24B is a standard 80x80x25mm DC axial fan used for cooling various electronic devices, particularly inverters. Operating on 24VDC with a current draw between 0.11A and 0.12A and a power consumption of approximately 2.64W to 2.88W, it provides airflow at 3500 RPM. This fan typically uses a sleeve bearing, is electronically protected, and connects via 2 wire leads, offering a reliable cooling solution for its size.
