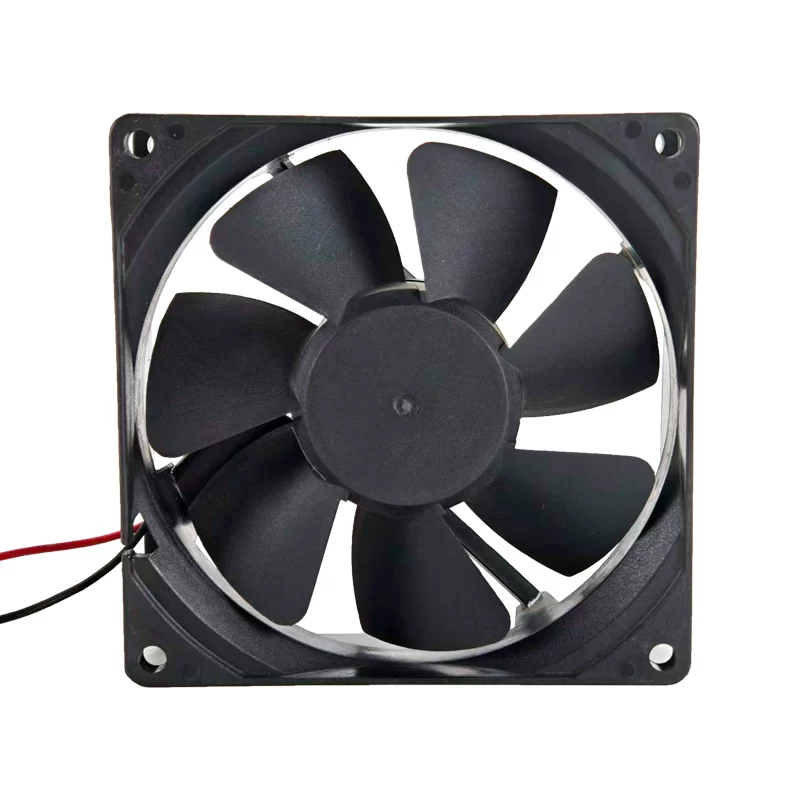

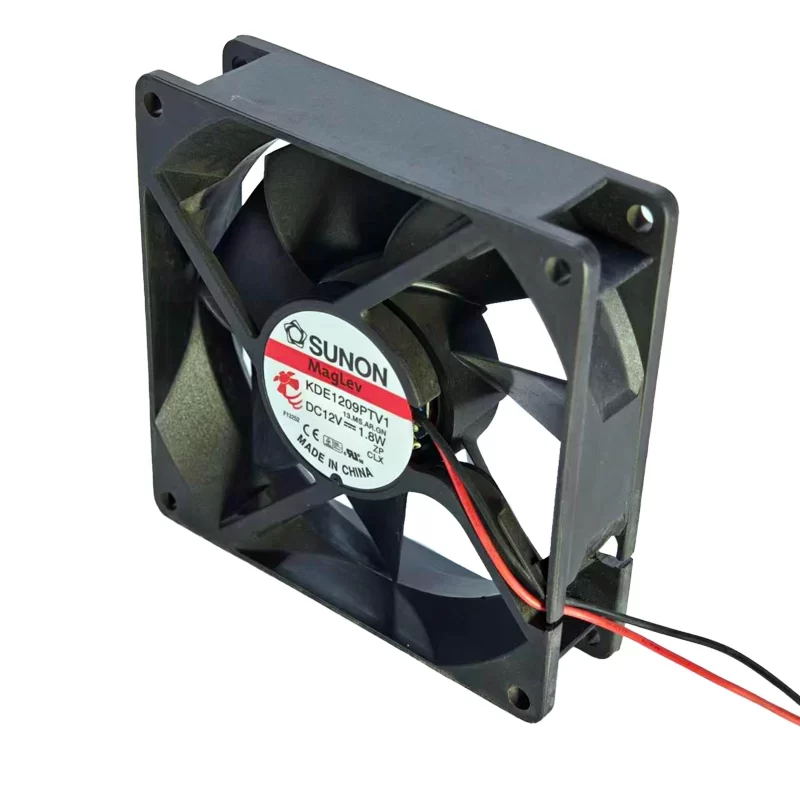

KDE1209PTV1.13.MS.A.GN SUNON 12V 1.8W DC Axial Fan

Description

The SUNON KDE1209PTV1.13.MS.A.GN is a high-performance DC Axial Fan with dimensions of 92 x 92 x 25 mm. It operates on a nominal voltage of 12 V DC with a power consumption of 1.8 W. The fan utilizes Sunon’s patented MagLev® Vapo-Bearing™ system for enhanced reliability and quiet operation. It delivers an airflow of 49.0 CFM (83.3 m³/h) at 2800 RPM, making it ideal for cooling PC components, networking hardware, and general electronic enclosures.

KDE1209PTV1.13.MS.A.GN Fan Parameters
Model: KDE1209PTV1.13.MS.A.GN
Manufacturer: SUNON
Type: DC Axial Fan (Tubeaxial)
Series: MagLev® KDE Series
Dimensions: 92 x 92 x 25 mm
Nominal Voltage: 12 V DC
Operating Voltage Range: 5 V DC to 13.8 V DC
Rated Current: 0.15 A
Rated Power Consumption: 1.8 W
Speed: 2800 RPM
Max. Airflow (Free Air): 83.3 m³/h (49.0 CFM)
Max. Static Pressure: 0.160 inAq (39.8 Pa)
Noise Level: 34.0 dB(A)
Weight: 95 g
Number of Blades: 7
Bearing Type: Vapo-Bearing™ (MagLev)
Motor Design: DC Brushless 4-pole motor
Termination: 2 Wire Leads
Housing Material: Polybutylene Terephthalate (PBT)
Impeller Material: Polybutylene Terephthalate (PBT)
Min. Ambient Temperature: -10 °C
Max. Ambient Temperature: 70 °C
Approvals: CE, CUR, TUV, UL

Application
The SUNON KDE1209PTV1.13.MS.A.GN is designed for low-to-medium noise applications where long-term reliability is paramount. Its Vapo-Bearing system reduces friction and noise, making it suitable for quiet workstations, high-end consumer electronics, power supplies, and telecommunication racks operating on a 12V DC standard.
