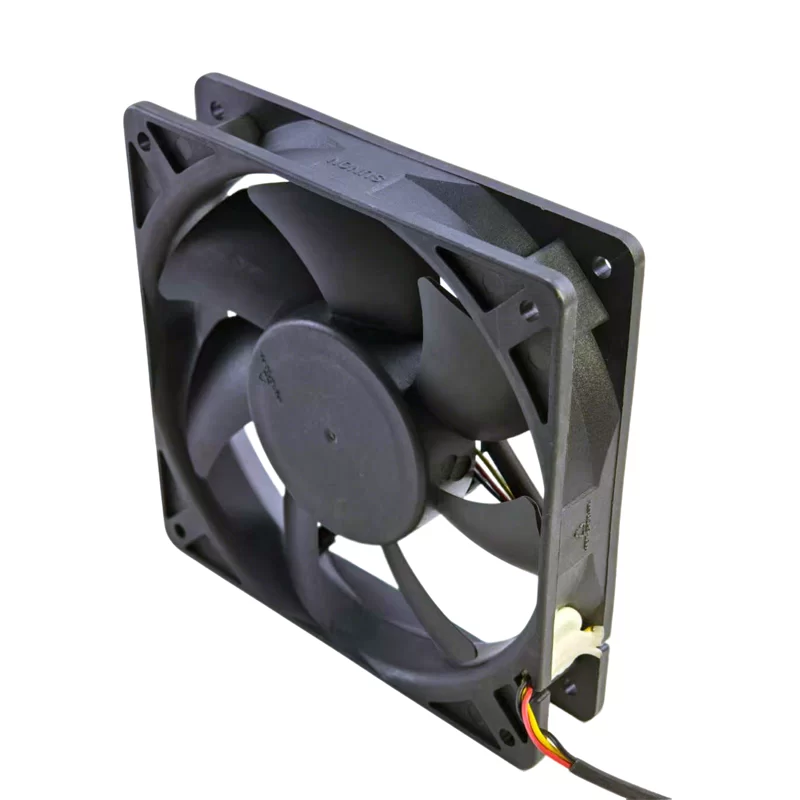

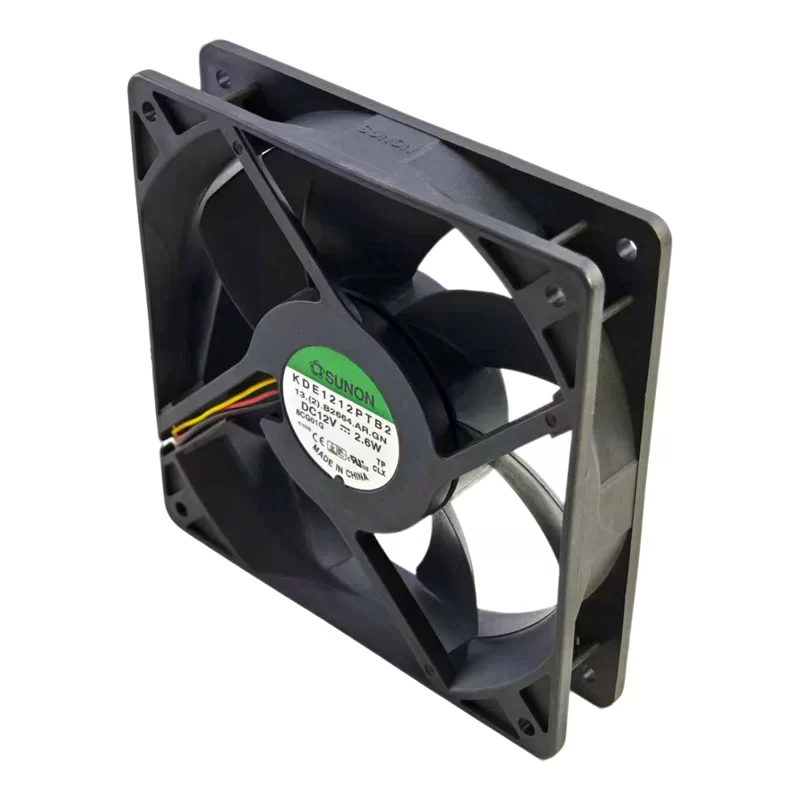

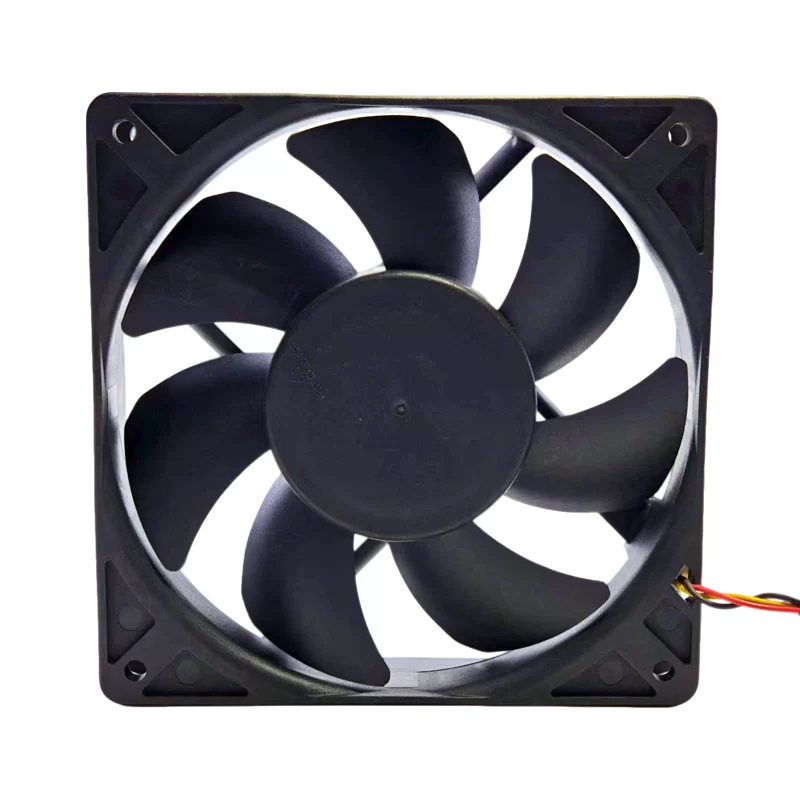

KDE1212PTB2 13.(2).B2664.AR.GN SUNON 12V DC Axial Fan

Description

The SUNON KDE1212PTB2 13.(2).B2664.AR.GN is a DC axial fan designed for applications such as inverter cooling. This fan measures 120 x 120 x 25 mm and operates at 12V DC, drawing 0.22 A of current and consuming 2.6 W of power. It features a reliable ball bearing and uses three-wire leads for connectivity. The fan delivers an airflow of 72 CFM (122.3 m³/h) with a static pressure of 0.25 inch H₂O (62.2 Pa) at a speed of 2700 RPM, producing a noise level of 41 dB(A). Constructed with a thermoplastic PBT housing and impeller, it is designed to operate reliably within a temperature range of -10 °C to 70 °C.

KDE1212PTB2 13.(2).B2664.AR.GN Fan Parameters
Manufacturer: SUNON
Model: KDE1212PTB2 13.(2).B2664.AR.GN
Fan Type: DC Axial Fan
Dimensions: 120 x 120 x 25 mm
Rated Voltage: 12V DC
Current Rating: 0.22 A
Power Consumption: 2.6 W
Airflow: 72 CFM (122.3 m³/h)
Static Pressure: 0.25 inch H₂O (62.2 Pa)
Speed: 2700 RPM
Noise Level: 41 dB(A)
Bearing Type: Ball Bearing
Termination: 3-Wire Leads
Housing Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10 °C to 70 °C

Application
The KDE1212PTB2 13.(2).B2664.AR.GN fan is ideally suited for inverter cooling fans, and other applications requiring efficient and reliable cooling solutions where specific airflow and pressure characteristics are needed.
