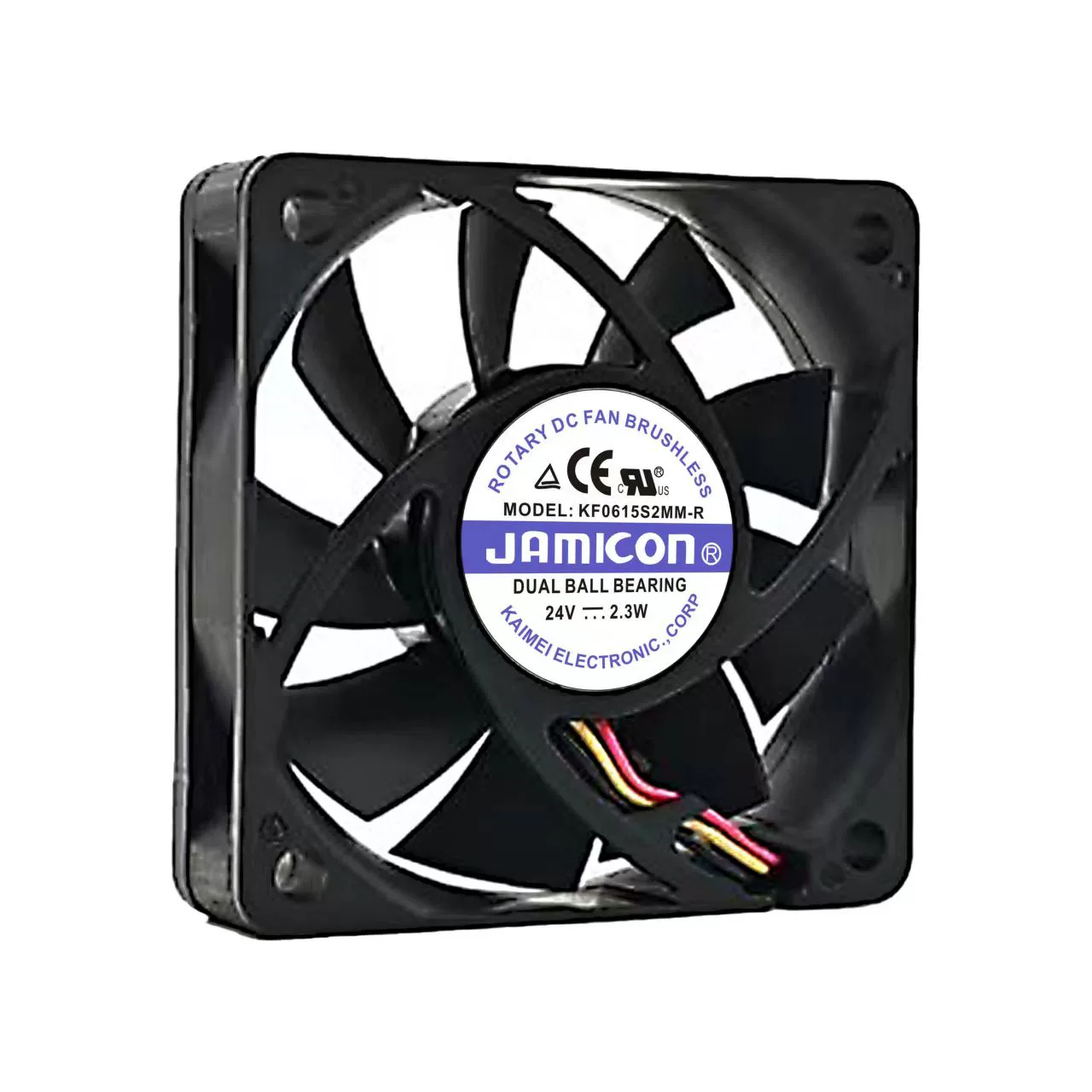

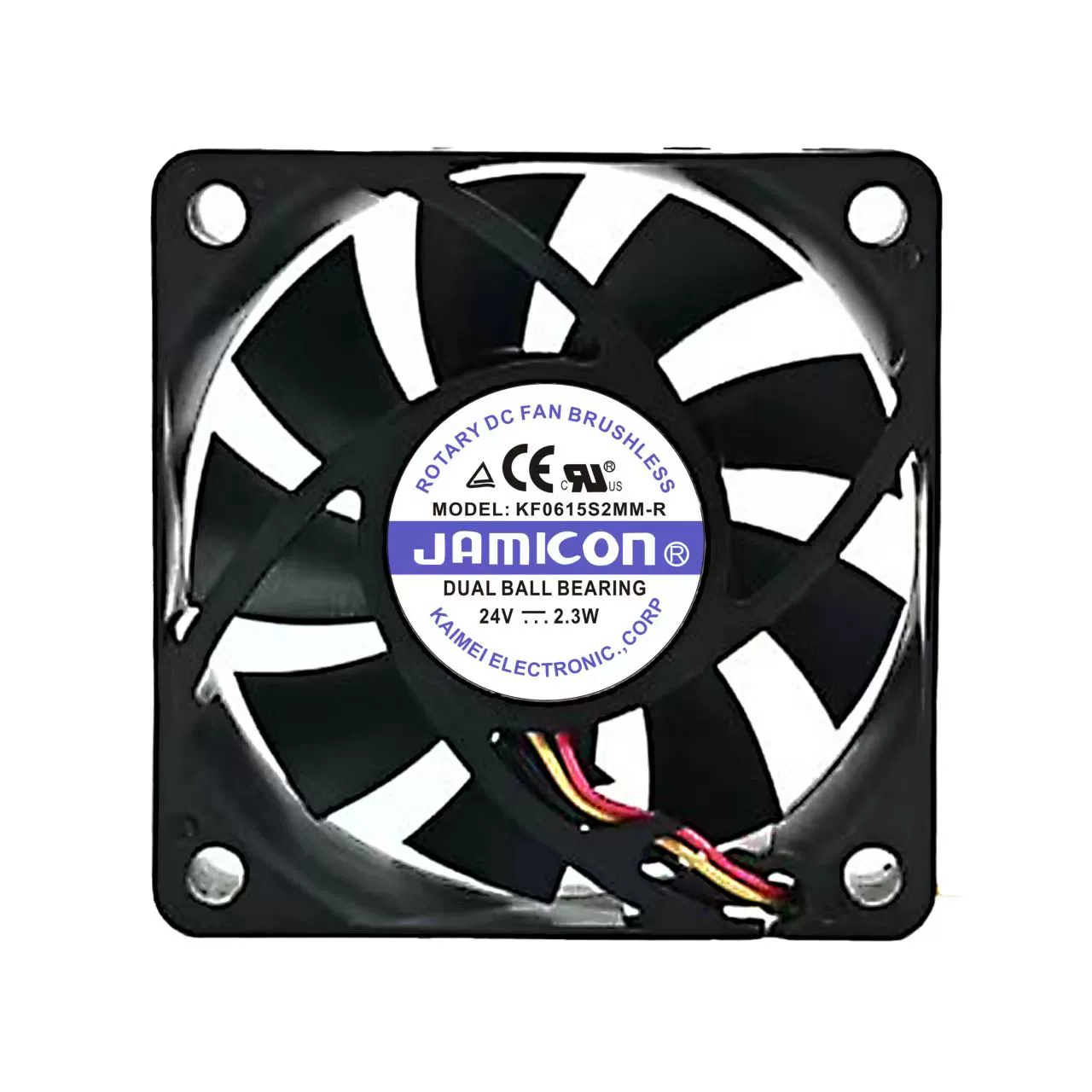

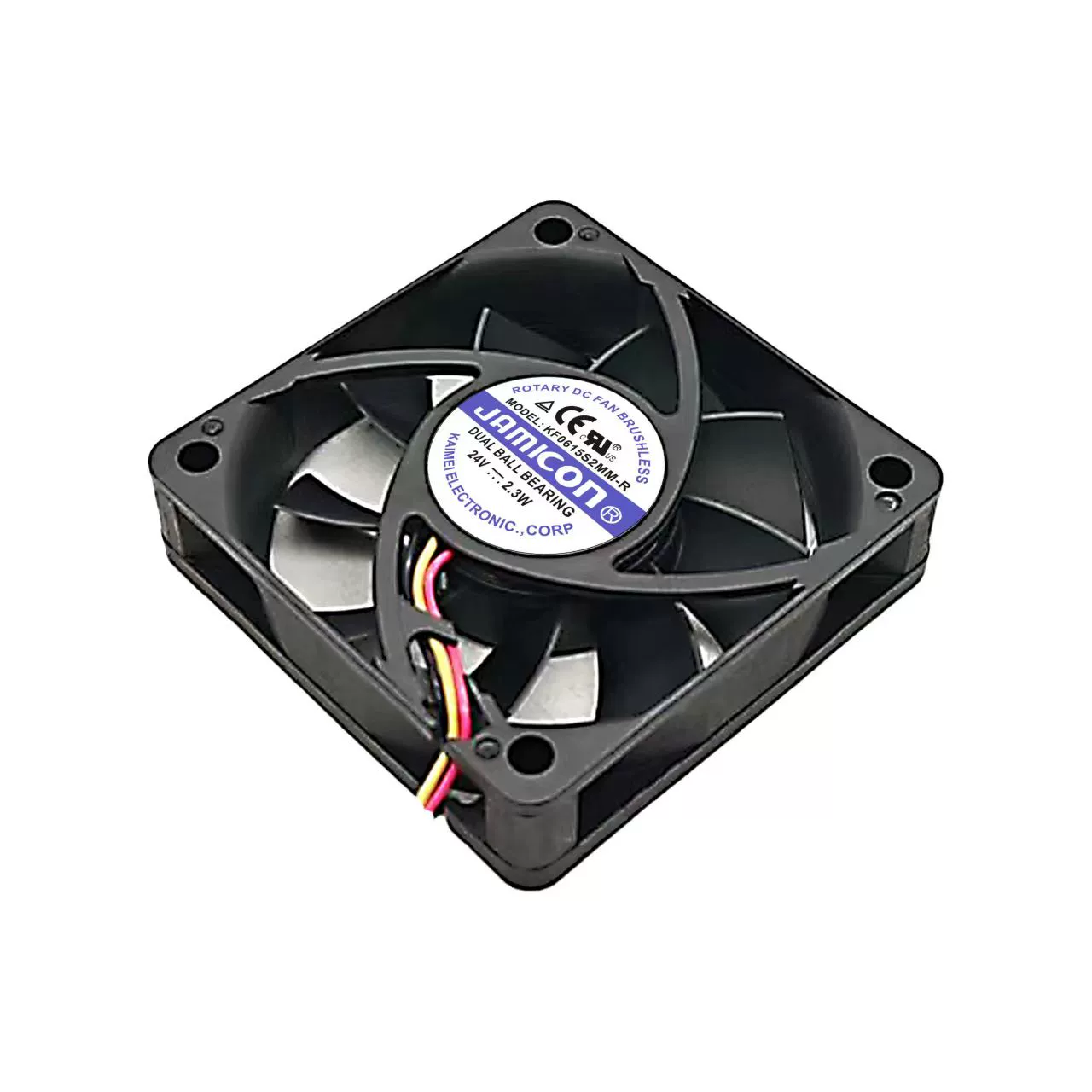

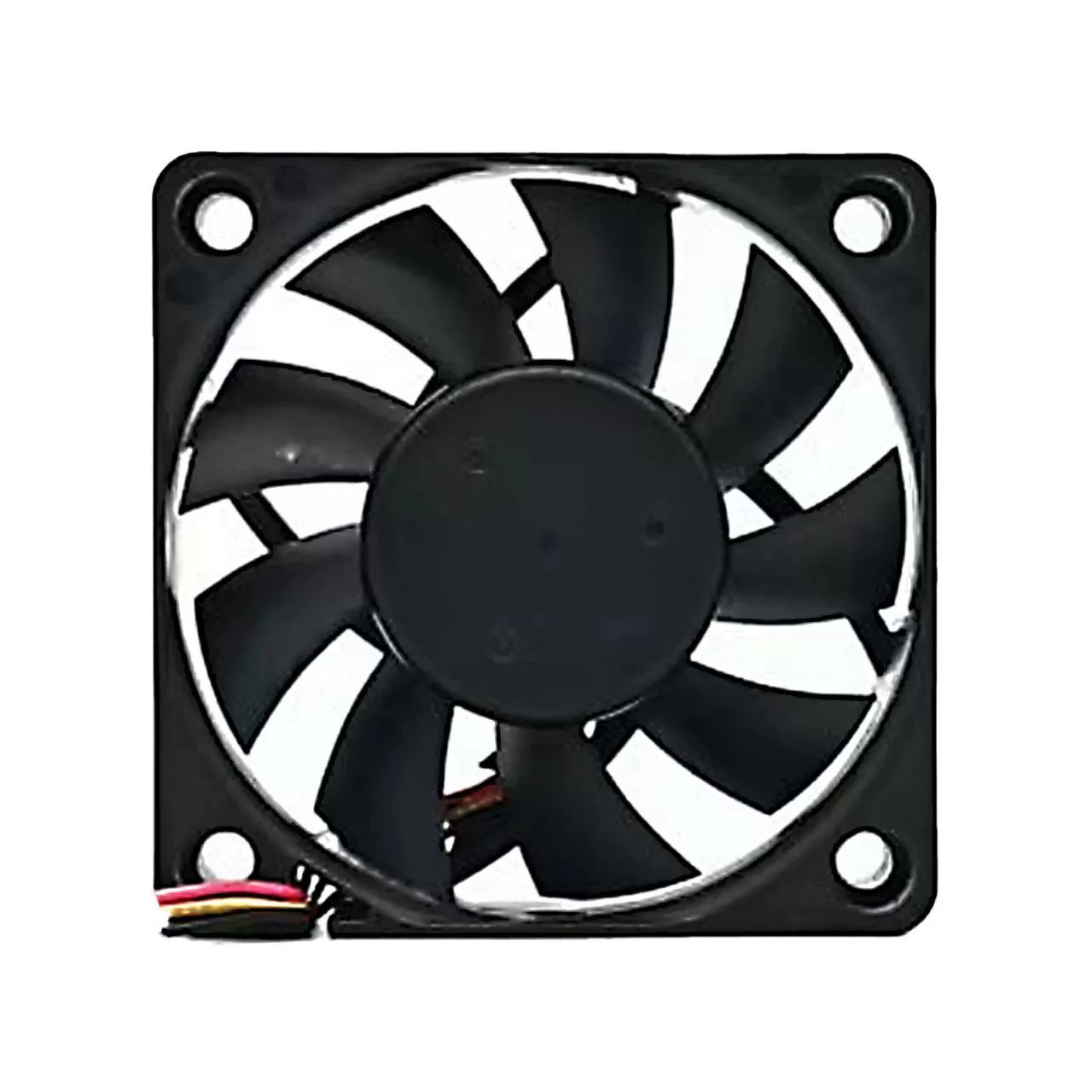

KF0615S2MM-R Jamicon DC24V 2.3W cooling fan

Description

Brand new original KF0615S2MM-R 6013 DC24V 2.3W 6 cm cooling fan
Model Number: KF0615S2MM-R
Manufacturer: Jamicon
Fan Type: DC Brushless Axial Fan
Dimensions (L x H x W): 60 mm x 60 mm x 15 mm
Rated Voltage: 24 VDC
Rated Current: 0.096 A
Input Power: 2.3 W
Wiring: 3 Lead Wires
Bearing Type: Sleeve Bearing
Rotational Speed (RPM): 4500 RPM
Maximum Airflow: 21.40 CFM
Maximum Static Pressure: 0.192 in H2O
Noise Level: 33.0 dB(A)
Frame Material: Plastic
Impeller (Blade) Material: Plastic

The Jamicon KF0615S2MM-R is a compact 60x60x15mm DC axial fan designed for general cooling in various electronic devices. Operating on 24VDC with 0.096A current and 2.3W power, it uses a sleeve bearing and delivers 21.40 CFM of airflow at 4500 RPM, with a low noise level of 33.0 dB(A). This 3-wire fan includes a signal wire for monitoring and is electronically protected, offering a practical thermal management solution for space-constrained electronics.
