Description

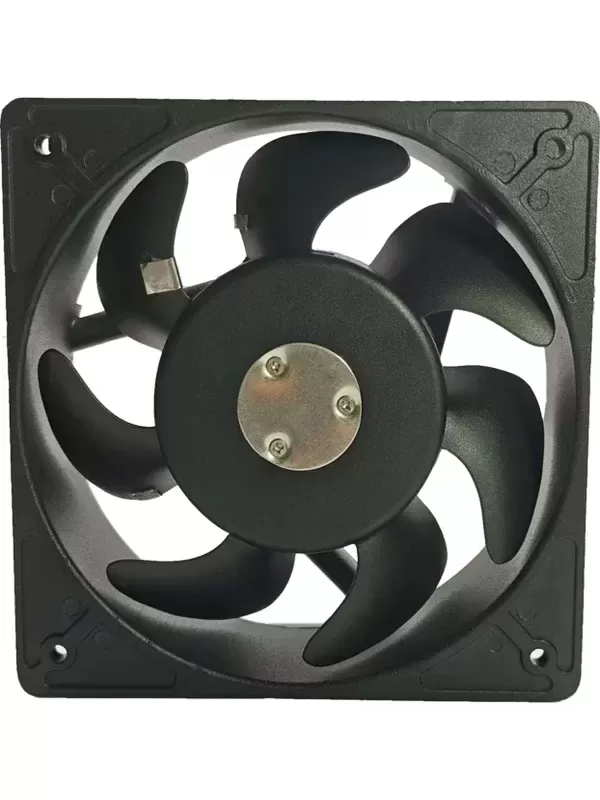

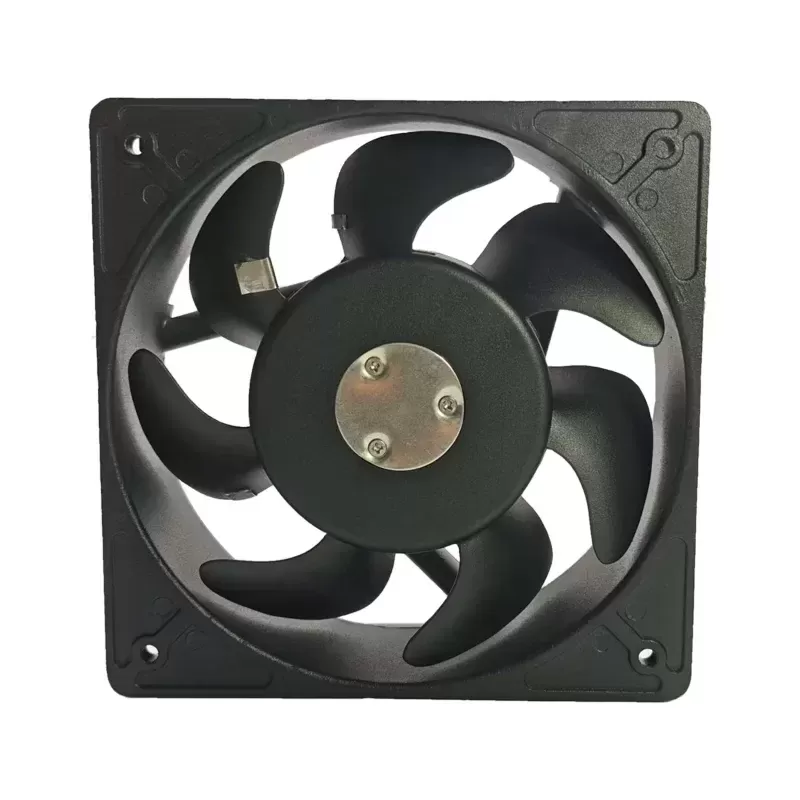

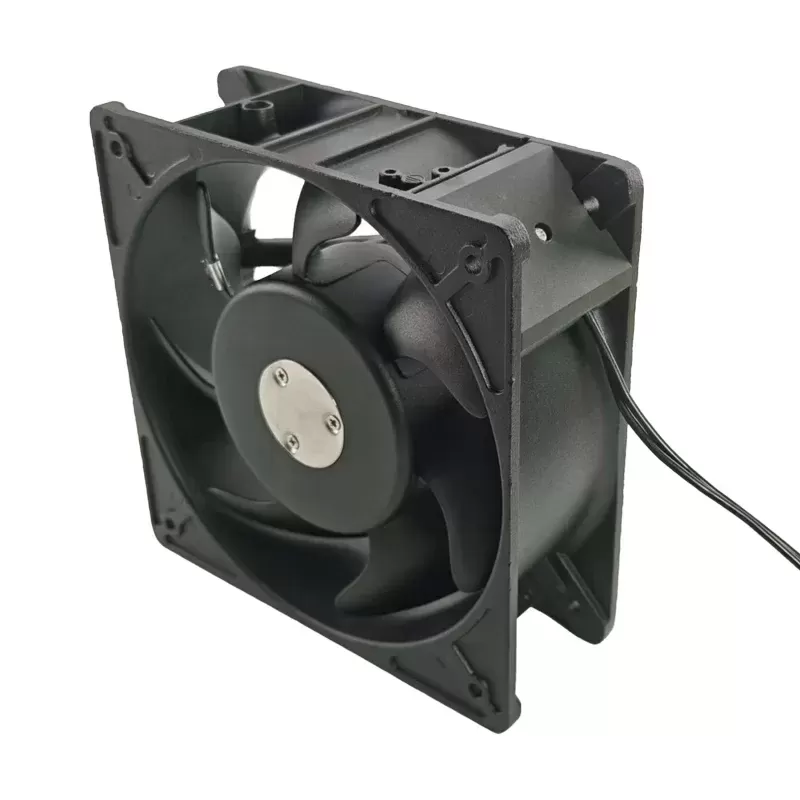

The Jiulong LG18065HA2BL-7P-C is an AC axial fan measuring 180x180x65mm. It operates on 220 VAC at 20 Hz or 60 Hz frequencies. When operating at 20 Hz, it draws 0.25 A of current with a power consumption of 55 W. When operating at 60 Hz, it draws 0.36 A of current with a power consumption of 80 W. This fan features ball bearings. The frame is typically made of die-cast aluminum alloy and the blades are plastic. It connects via 2-wire Leads. This fan is designed for general cooling and ventilation applications.
LG18065HA2BL-7P-C Fan Parameters
Model: LG18065HA2BL-7P-C
Manufacturer: Jiulong
Type: AC Axial Fan
Dimensions: 180x180x65 mm
Rated Voltage: 220 VAC
Frequency: 20 Hz / 60 Hz
Rated Current: 0.25 A (at 20Hz) / 0.36 A (at 60Hz)
Power Consumption: 55 W (at 20Hz) / 80 W (at 60Hz)
Bearing Type: Ball Bearing
Termination: 2-wire Leads
Material Frame: Die-cast aluminum alloy
Material Blade: Plastic
Application: General cooling and ventilation.
