Description

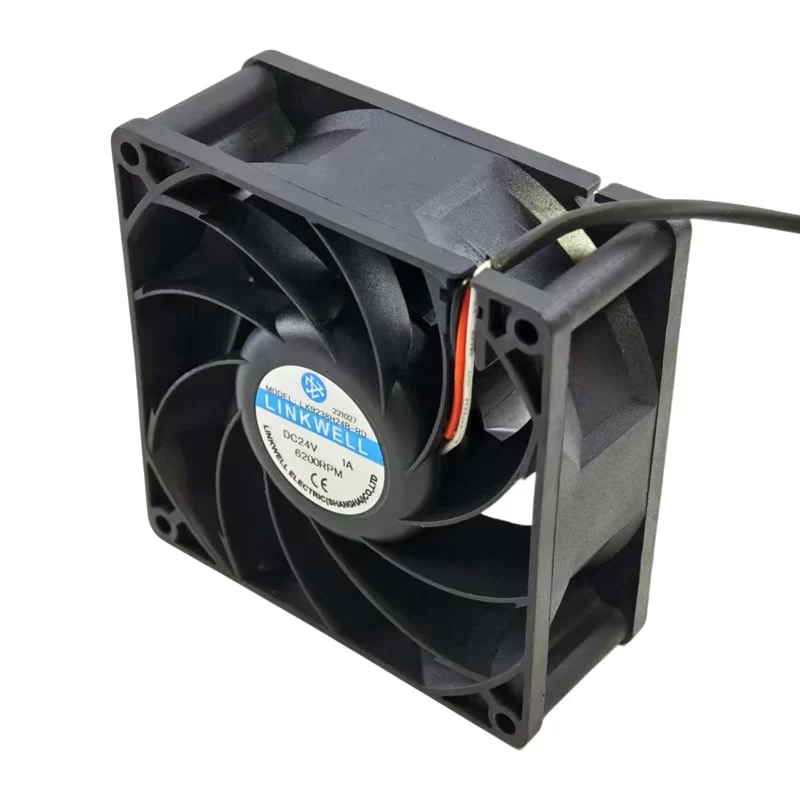

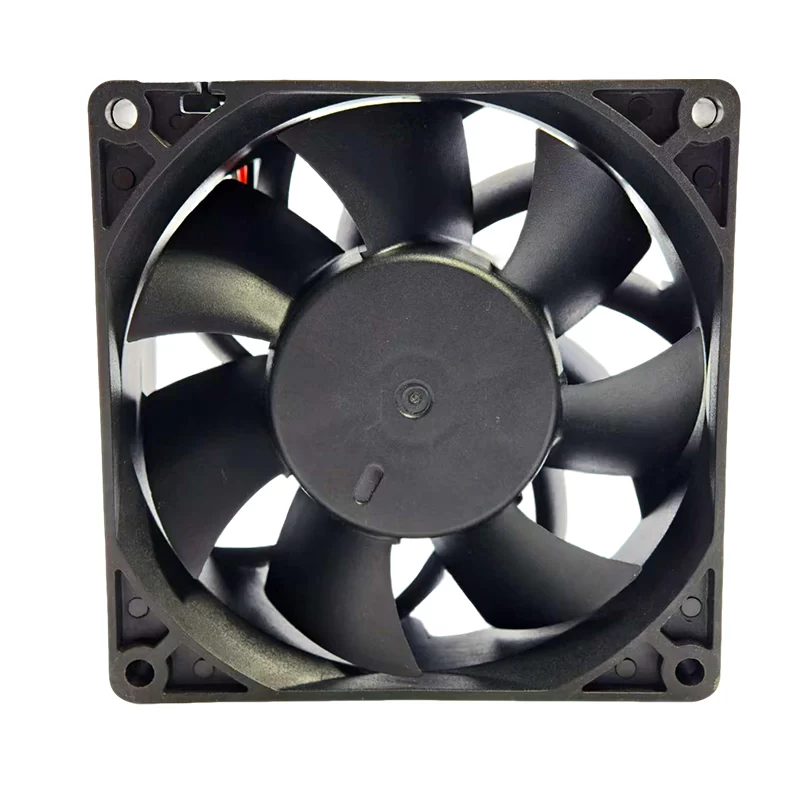

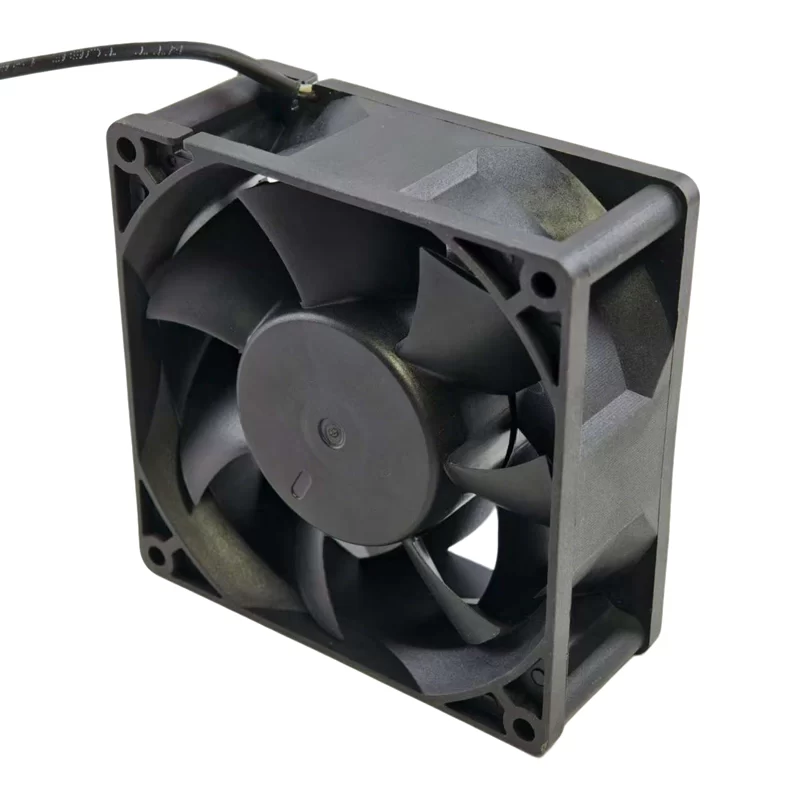

The LINKWELL LK9238H24B-RD is a DC axial fan measuring 92 x 92 x 38 mm. It operates on 24V DC, drawing 1A of current and consuming 24W of power. The fan delivers an airflow of 71.8 CFM (122 m³/h) and a static pressure of 0.35 inch H₂O (87 Pa). It runs at a high speed of 6200 RPM with a noise level of 46 dB(A). This fan uses ball bearings for enhanced durability and features 3-wire leads, typically providing a tachometer signal for speed monitoring.
LK9238H24B-RD Fan Parameters
Manufacturer: LINKWELL
Model: LK9238H24B-RD
Fan Type: DC Axial Fan
Dimensions: 92 x 92 x 38 mm
Rated Voltage: 24V DC
Current Rating: 1A
Power Consumption: 24W
Airflow: 71.8 CFM (122 m³/h)
Static Pressure: 0.35 inch H₂O (87 Pa)
Speed: 6200 RPM
Noise Level: 46 dB(A)
Bearing Type: Ball Bearing
Termination: 3-Wire Leads
Housing Material: PBT Plastic
Impeller Material: PBT Plastic
Operating Temperature: -10 °C ~ 70 °C
Application
The LK9238H24B-RD is designed for applications requiring significant airflow and static pressure. It is suitable for cooling servers, network equipment, industrial control systems, medical devices, and other electronic enclosures where effective thermal management is crucial.
