LKA12038.230-7 LINKWELL 200-240V AC Axial Fan

Description

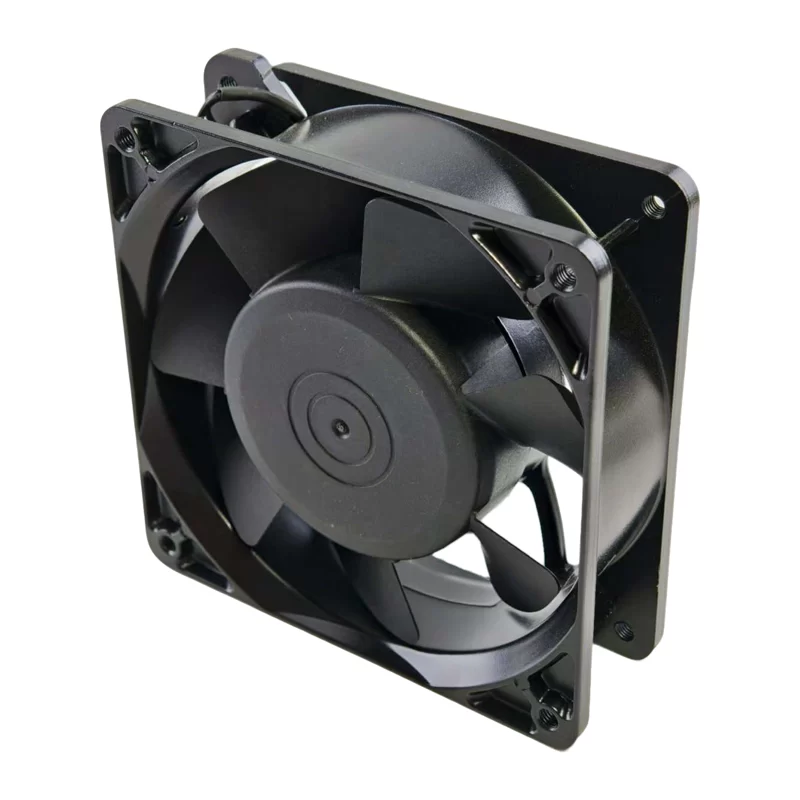

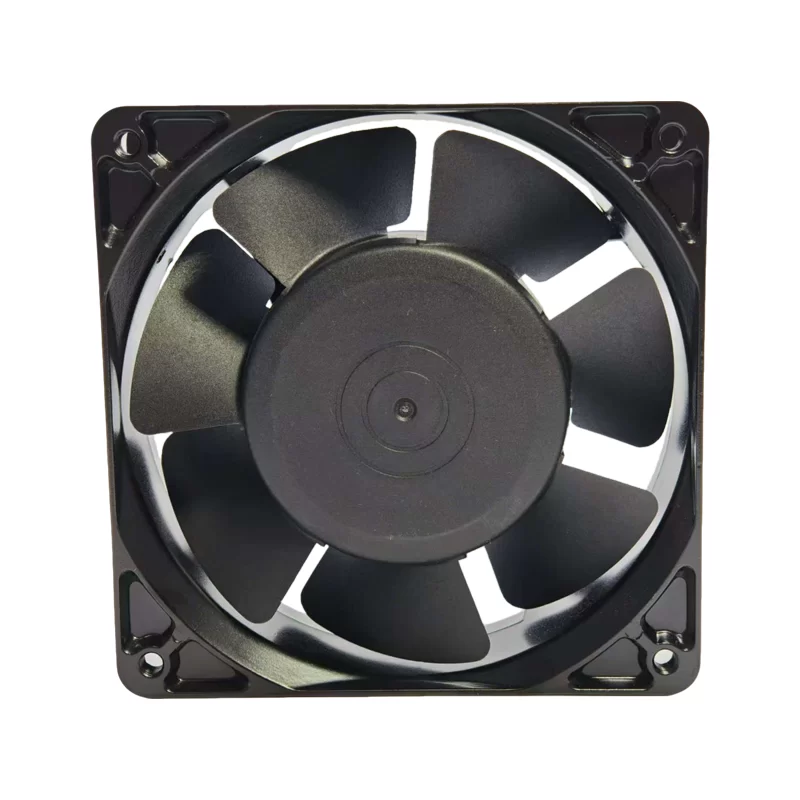

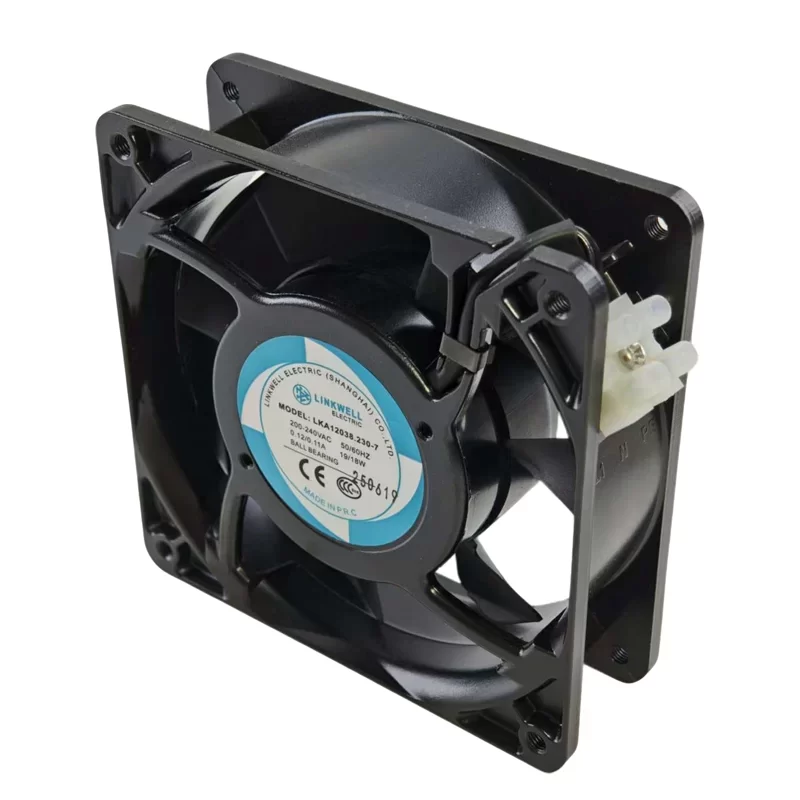

The LINKWELL LKA12038.230-7 is an AC axial fan measuring 120 x 120 x 38 mm. It operates on 200-240V AC at both 50/60 Hz. At 50 Hz, it draws 0.12 A and consumes 19 W, providing an airflow of 101.5 CFM (172.5 m³/h). At 60 Hz, the fan draws 0.11 A, consumes 18 W, and delivers 114.5 CFM (194.5 m³/h). The fan runs at 2650 RPM (50 Hz) or 3000 RPM (60 Hz) with a noise level of 46.5/49.5 dB(A). It uses ball bearings for durability and features two-wire leads.

LKA12038.230-7 Fan Parameters
Manufacturer: LINKWELL
Model: LKA12038.230-7
Fan Type: AC Axial Fan
Dimensions: 120 x 120 x 38 mm
Rated Voltage: 200-240V AC
Frequency: 50/60 Hz
Current Rating: 0.12 A / 0.11 A
Power Consumption: 19 W / 18 W
Airflow: 101.5 CFM (172.5 m³/h) / 114.5 CFM (194.5 m³/h)
Static Pressure: 0.33 inch H₂O (82 Pa) / 0.35 inch H₂O (87 Pa)
Speed: 2650 RPM / 3000 RPM
Noise Level: 46.5 dB(A) / 49.5 dB(A)
Bearing Type: Ball Bearing
Termination: Two Wire Leads
Housing Material: Aluminum
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10 °C ~ 70 °C

Application
The LKA12038.230-7 is a versatile fan suitable for industrial cabinets, server racks, control panels, and commercial kitchen equipment. Its high airflow and durable construction make it an excellent choice for a wide range of cooling and ventilation applications.
