Description

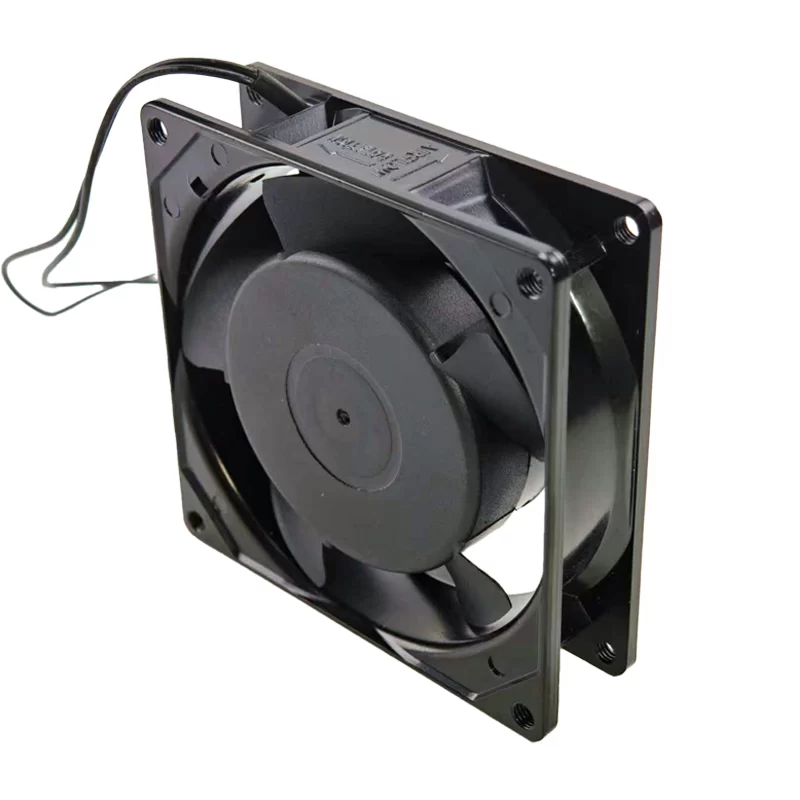

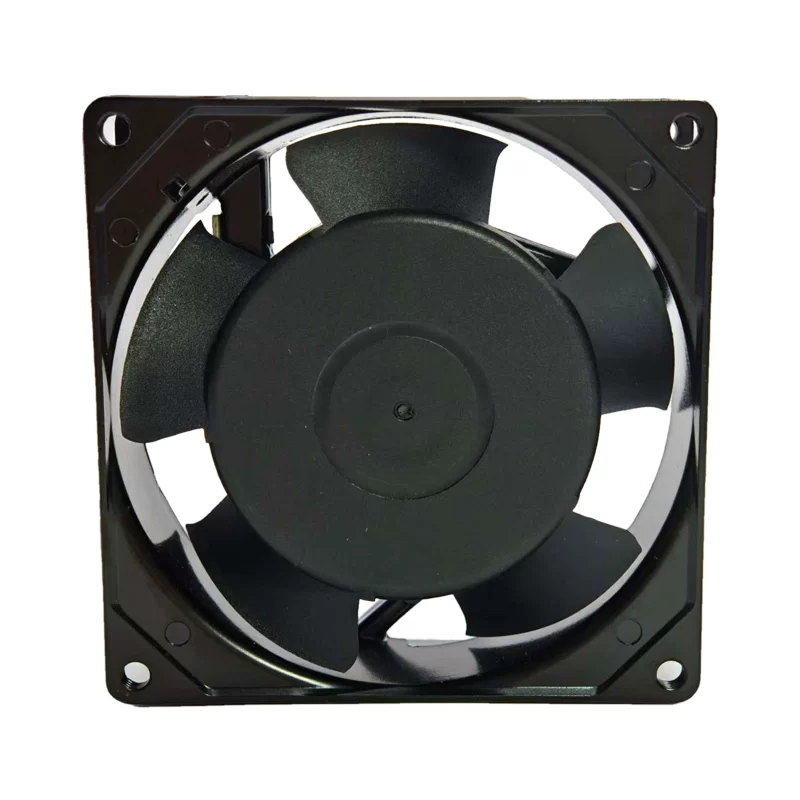

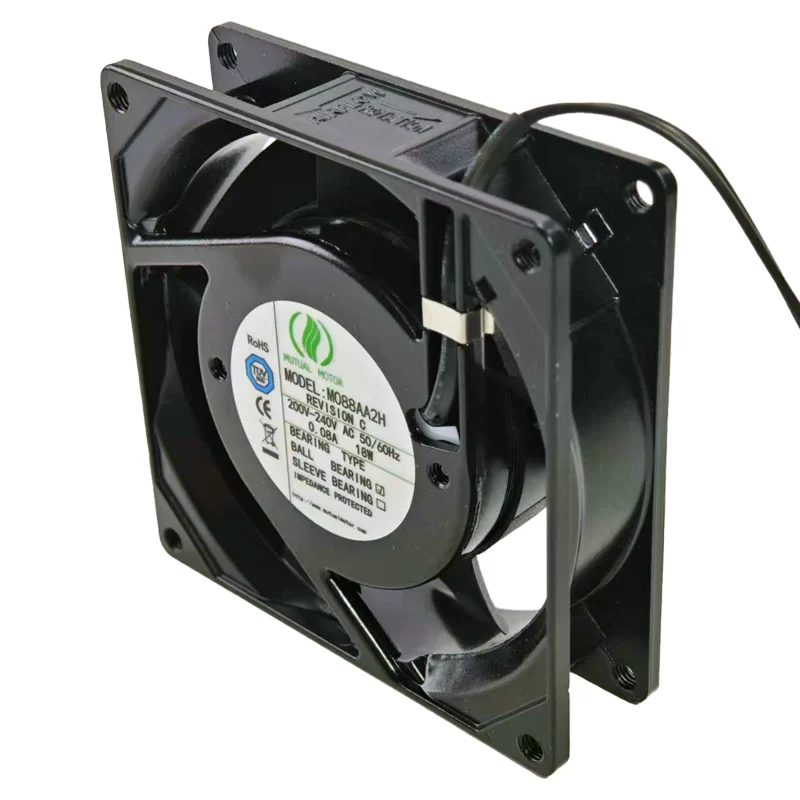

The MUTUAL M088AA2H is an AC Axial Fan with dimensions of 92x92x25mm. It operates on a rated voltage of 230V within an operating range of 200V-240V at both 50Hz and 60Hz. At 50Hz, it draws 0.07A of current and consumes 13.5W of power, delivering 35 CFM (0.991 m³/min) of airflow at 2500 RPM with a static pressure of 44.8 Pa and a noise level of 31 dBA. At 60Hz, it draws 0.06A and consumes 11.5W, providing 40 CFM (1.133 m³/min) of airflow at 2950 RPM with a static pressure of 65 Pa and a noise level of 35 dBA. Weighing 250g and featuring a 2-wire lead for connection, this fan is suitable for various electronic and industrial cooling applications.
M088AA2H Fan Parameters
Model: M088AA2H
Manufacturer: MUTUAL MOTOR
Type: AC Axial Fan
Dimensions: 92 x 92 x 25 mm
Rated Voltage: 230 V
Operating Voltage Range: 200 V – 240 V
Frequency: 50/60 Hz
Current Draw: 0.07 A (50Hz), 0.06 A (60Hz)
Power Input: 13.5 W (50Hz), 11.5 W (60Hz)
Fan Speed: 2500 RPM (50Hz), 2950 RPM (60Hz)
Airflow: 35 CFM (0.991 m³/min) (50Hz), 40 CFM (1.133 m³/min) (60Hz)
Static Pressure: 44.8 Pa (50Hz), 65 Pa (60Hz)
Noise Level: 31 dB(A) (50Hz), 35 dB(A) (60Hz)
Weight: 250 g
Termination: 2-wire lead
Application: Electronic cooling, Industrial equipment, Control cabinets
