Description

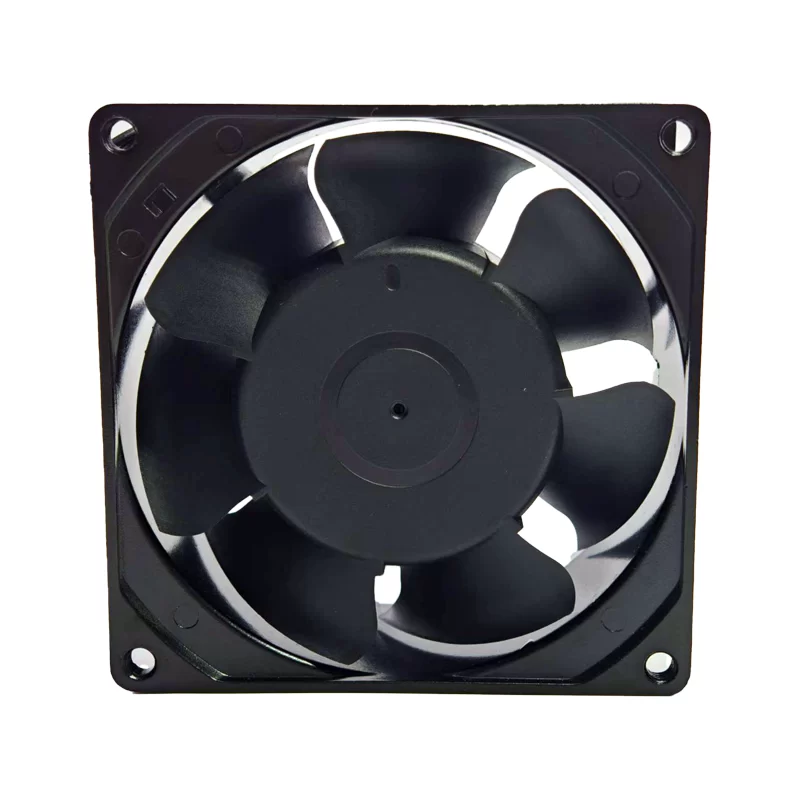

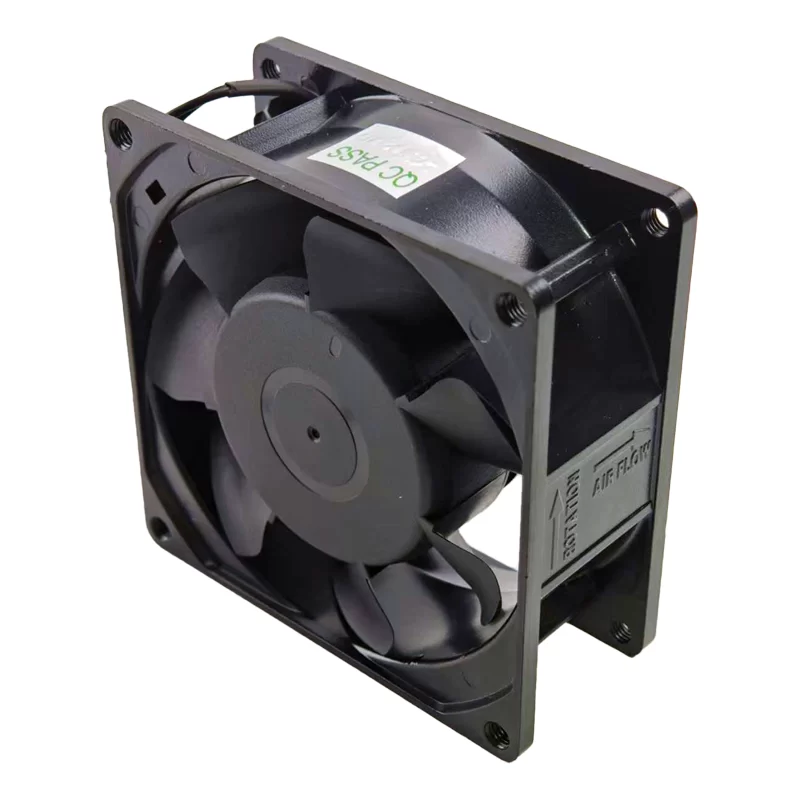

The MUTUAL M088BA2H is an AC Axial Fan with dimensions of 92x92x38mm. It operates on a rated voltage of 230V within an operating range of 200V-240V at both 50Hz and 60Hz. At 50Hz, it draws 0.05A of current and consumes 15W of power, delivering 39 CFM (1.104 m³/min) of airflow at 2300 RPM with a static pressure of 0.21 Inch-H2O and a noise level of 34 dBA. At 60Hz, it draws 0.04A and consumes 12W, providing 46 CFM (1.303 m³/min) of airflow at 2700 RPM with a static pressure of 0.29 Inch-H2O and a noise level of 38 dBA. Weighing 350g and featuring a 2-wire lead for connection, this fan is suitable for various electronic and industrial cooling applications.
M088BA2H Fan Parameters
Model: M088BA2H
Manufacturer: MUTUAL MOTOR
Type: AC Axial Fan
Dimensions: 92 x 92 x 38 mm
Rated Voltage: 230 V
Operating Voltage Range: 200 V – 240 V
Frequency: 50/60 Hz
Current Draw: 0.05 A (50Hz), 0.04 A (60Hz)
Power Input: 15 W (50Hz), 12 W (60Hz)
Fan Speed: 2300 RPM (50Hz), 2700 RPM (60Hz)
Airflow: 39 CFM (1.104 m³/min) (50Hz), 46 CFM (1.303 m³/min) (60Hz)
Static Pressure: 0.21 Inch-H2O (50Hz), 0.29 Inch-H2O (60Hz)
Noise Level: 34 dB(A) (50Hz), 38 dB(A) (60Hz)
Weight: 350 g
Termination: 2-wire lead
Application: Electronic cooling, Industrial equipment, Control cabinets
