Description

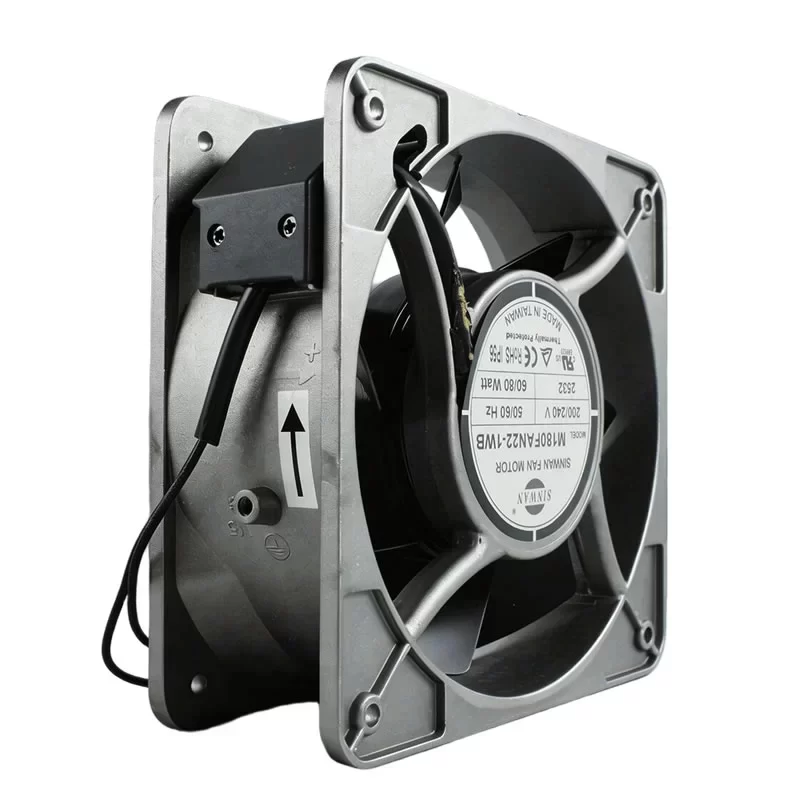

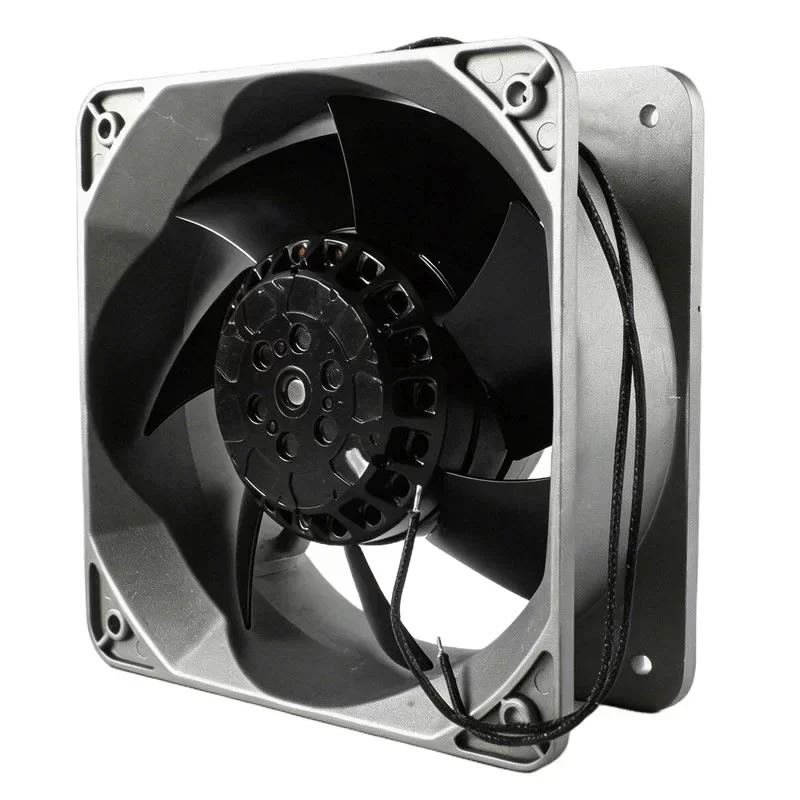

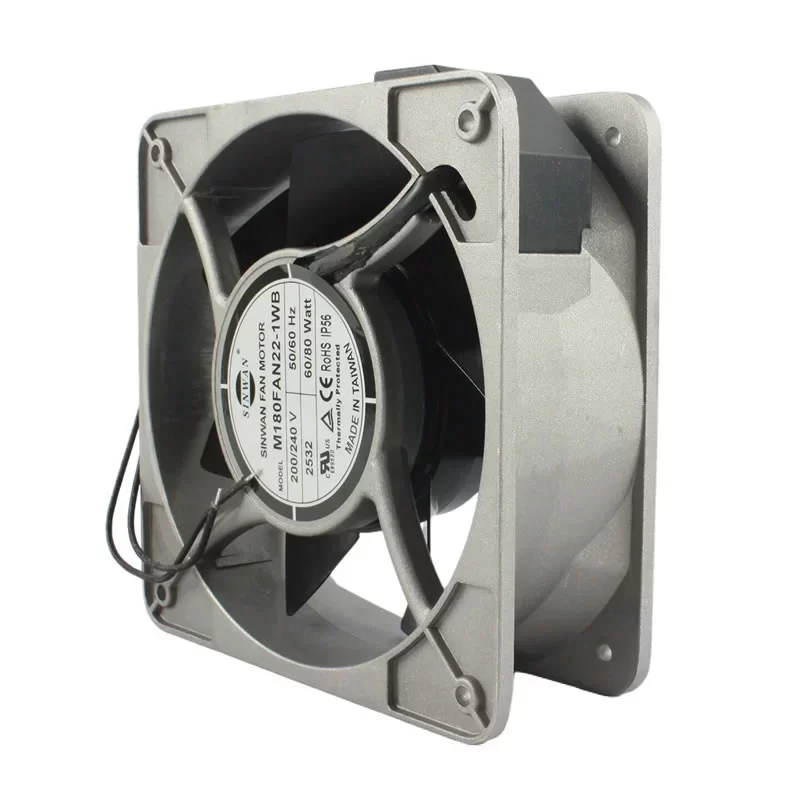

The Sinwan M180FAN22-1WB is a high-performance 200/240 VAC AC Axial Fan with dimensions of 180 x 180 x 65 mm, specifically engineered for extreme thermal management in large-scale industrial frequency converters and high-power electrical control cabinets. Driven by a robust Capacitor induction outer rotor motor with integrated thermal protection, this unit provides a substantial power consumption of 60.0 W at 50 Hz and up to 80.0 W at 60 Hz, operating at a rated speed of 3250 RPM to deliver an extraordinary airflow for critical heat extraction. Constructed with a natural die-cast aluminum frame and a precision-engineered 5-blade all-metal impeller featuring dual ball bearings, this 1800 g unit provides a heavy-duty air-moving solution with a noise level of 65.0 dB(A) and IP56 protection, ensuring maximum cooling performance and long-term mechanical stability for high-power inverters, variable frequency drives (VFD), and industrial switchgear systems in harsh environments at the end.
M180FAN22-1WB Fan Parameters
Model Number: M180FAN22-1WB
Manufacturer: Sinwan
Motor Type: Capacitor induction, outer rotor
Type: AC Axial Fan
Dimensions: 180.0 x 180.0 x 65.0 mm
Weight: 1800 g (3.96 lbs)
Bearing Type: Two ball bearings
Nominal Voltage: 200 / 240 VAC
Frequency: 50 / 60 Hz
Max. Power Consumption: 60.0 W (50 Hz) / 80.0 W (60 Hz)
Max. Current Draw: 0.35 A (50 Hz) / 0.45 A (60 Hz)
Rated Speed: 2750 RPM (50 Hz) / 3250 RPM (60 Hz)
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Working Air Flow: 9.3 m³/min (330.0 CFM) / 11.3 m³/min (400.0 CFM)
Static Pressure Increase: 19.05 mmH₂O (0.75 inH₂O) / 20.32 mmH₂O (0.80 inH₂O)
Burnout Protection: Thermally protected
Insulation Resistance: Over 100 MΩ at 500 VDC
Dielectric Strength: 1,500 VAC/min, 0.5 mA, 50/60 Hz
Electrical Hookup: 2 lead wires
Number of Blades: 5
Direction of Rotation: Counter-clockwise (viewed toward rotor)
Airflow Direction: Exhaust over struts
Frame Material: Die-cast aluminum, Natural (AN)
Impeller Material: All metal
Operation Mode: S1 (Continuous operation)
Sound Pressure Level: 65.0 dB(A)
Service Life (L10): 50,000 h at 55 °C
Operating Temperature: -30 – +80 °C
Storage Temperature: -40 – +100 °C (at 65% RH)
Degree of Protection: IP56
Standard Compliance: EN 60950-1; CE
Approval Agency: UL; CUL; TUV
Application
The Sinwan M180FAN22-1WB AC fan is primarily utilized in large-scale industrial frequency converters, high-power inverters, and electrical control cabinet heat dissipation systems for efficient exhaust and cooling in harsh environments.
