Description

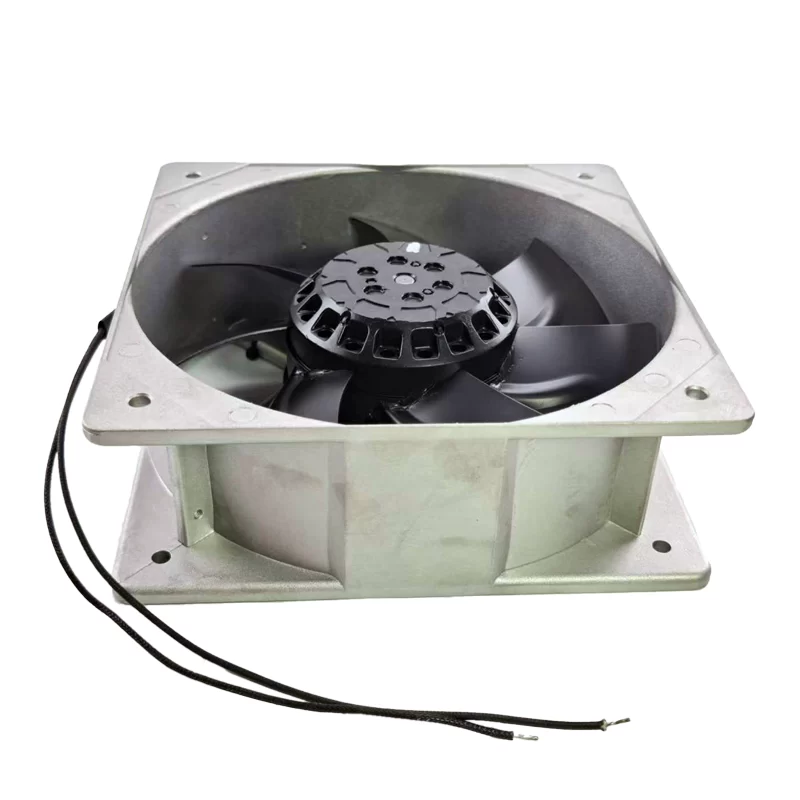

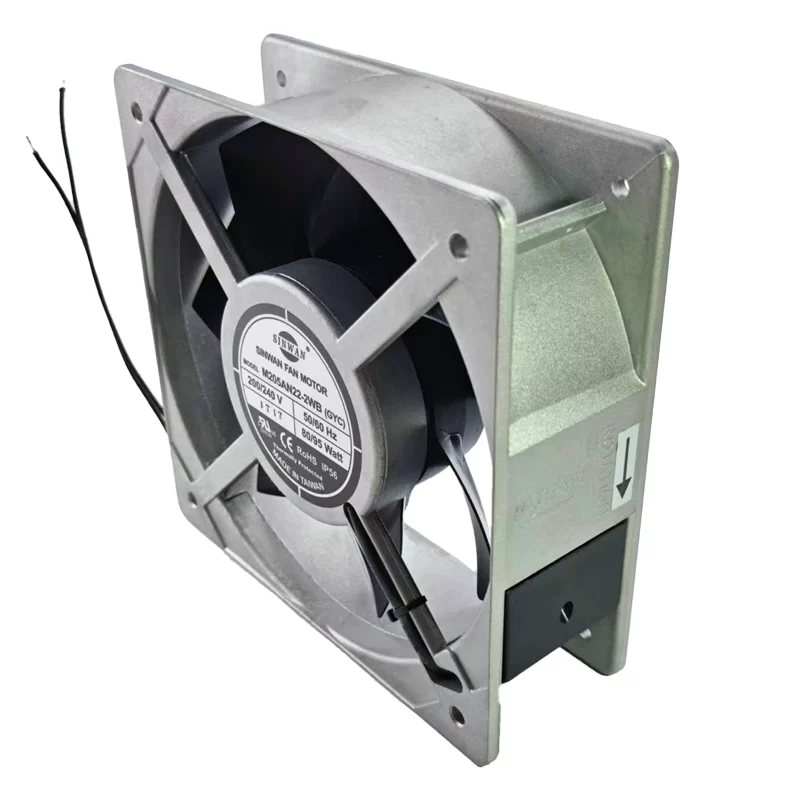

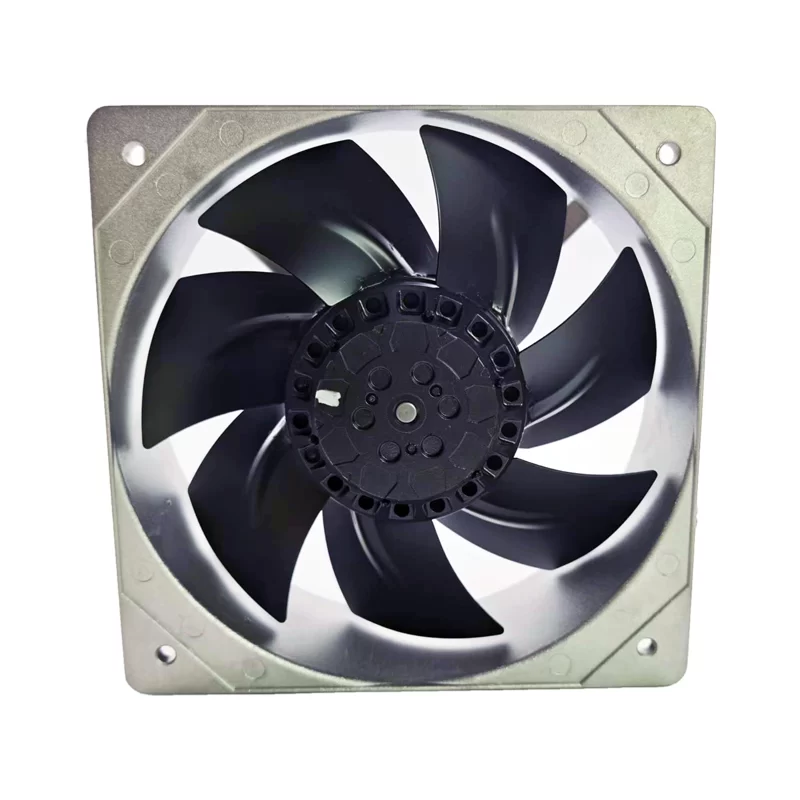

The SINWAN M205AN22-2WB is an AC Axial Fan with dimensions of 205x205x72mm. It operates across a nominal voltage range of 220-240V and offers performance at both 50Hz and 60Hz frequencies. At 50Hz, it has a power consumption of 80W, delivering an airflow of 460CFM at 2300RPM, with a static pressure of 0.39inH2O. At 60Hz, its power consumption is 95W, providing an airflow of 465CFM at 2250RPM, with a static pressure of 0.52inH2O. The fan has a noise level of 58dBA, utilizes a ball bearing, features 2 wire leads for termination, and boasts an IP56 ingress protection rating. It is suitable for robust ventilation in industrial enclosures, machinery cooling, and commercial refrigeration units, especially where protection against dust and strong jets of water is required.
M205AN22-2WB Fan Parameters
Model: M205AN22-2WB
Manufacturer: SINWAN
Type: AC Axial Fan
Dimensions: 205 x 205 x 72 mm
Nominal Voltage: 220-240 V
Frequency: 50/60 Hz
Power Consumption (50Hz): 80 W
Power Consumption (60Hz): 95 W
Airflow (50Hz): 460 CFM
Airflow (60Hz): 465 CFM
Static Pressure (50Hz): 0.39 in H2O
Static Pressure (60Hz): 0.52 in H2O
Speed (50Hz): 2300 RPM
Speed (60Hz): 2250 RPM
Noise: 58 dBA
Bearing: Ball bearing
Termination: 2 Wire Leads
IP Rating: IP56
Weight: 2400 g
Application: Industrial enclosures, machinery cooling, commercial refrigeration units.
