Description

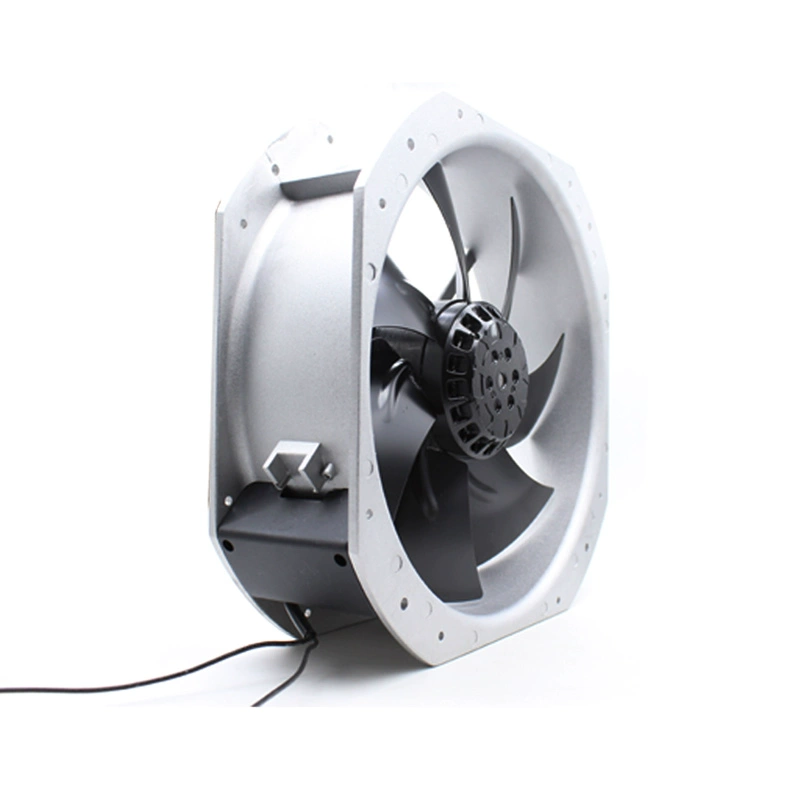

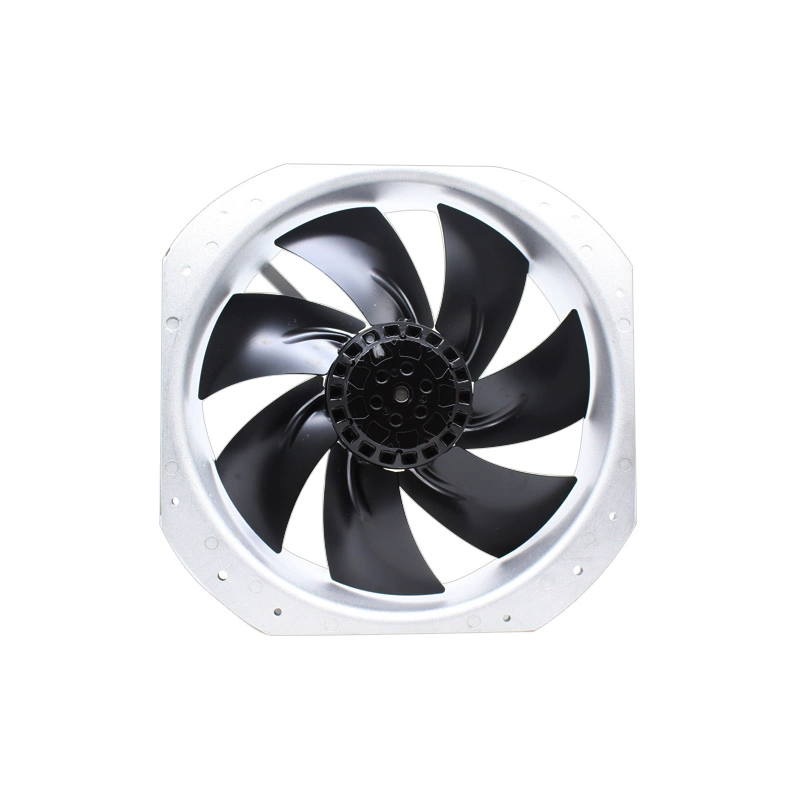

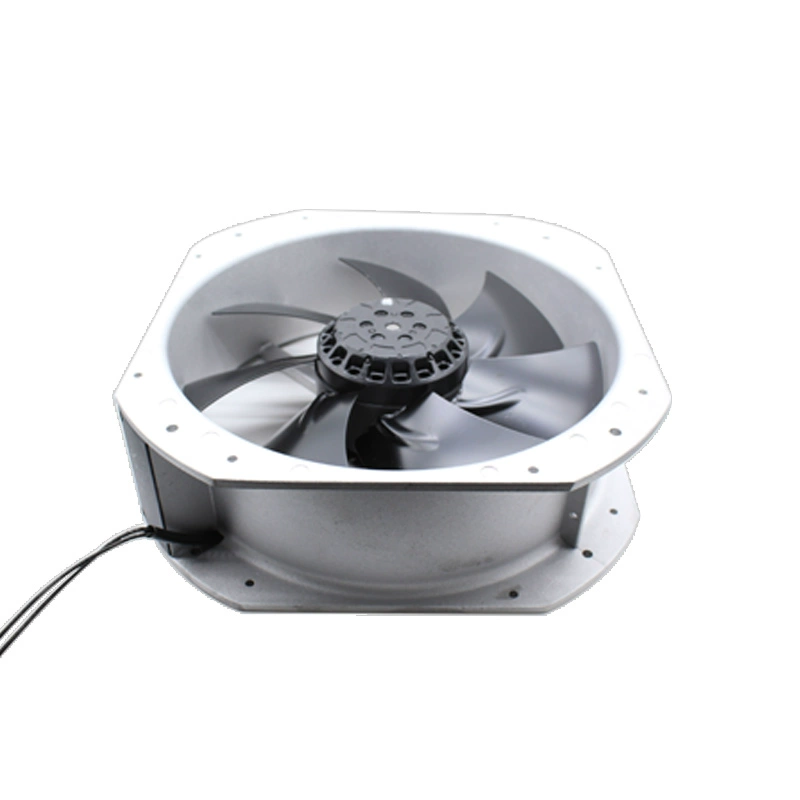

The Sinwan M280GAN22-1WB is a robust AC axial cooling fan measuring 280x280x89mm, designed for high-temperature applications. It operates on 200-240V AC at 50/60Hz, delivering airflow between 1150-1300 CFM with a noise level of 73 dB. Featuring a durable aluminum frame, all-metal impeller, and ball bearings, this fan is built for longevity with a life expectancy of 50,000 hours at 55°C.
Model: M280GAN22-1WB
Manufacturer: Sinwan
Type: Axial Cooling Fan (AC)
Size: 280 x 280 x 89mm
Voltage: 200-240V AC
Frequency: 50/60Hz
Power: 115/210W or 155/210W
Current: 60/80A
Speed: 2800/3200 RPM
Air Volume (Airflow): 1150/1300 CFM
Noise Level: 73 dB
Bearing Type: Ball bearing
Motor Type: Capacitor induction, outer rotor, 1-phase
Burnout Protection: Thermally protected
IP Protection: IP56
Frame: Aluminum die-cast
Impeller: 7 blades, all metal steel
Rotation: Counter-clockwise (CCW) when viewed from the rotor side
Connection: Wire leads
Weight: 3,400g
Operating Temperature: -30°C to +80°C (ambient non-condensing)
Life Expectancy: L10 50,000 hours at 55°C, 80,000 hours at 35°C
