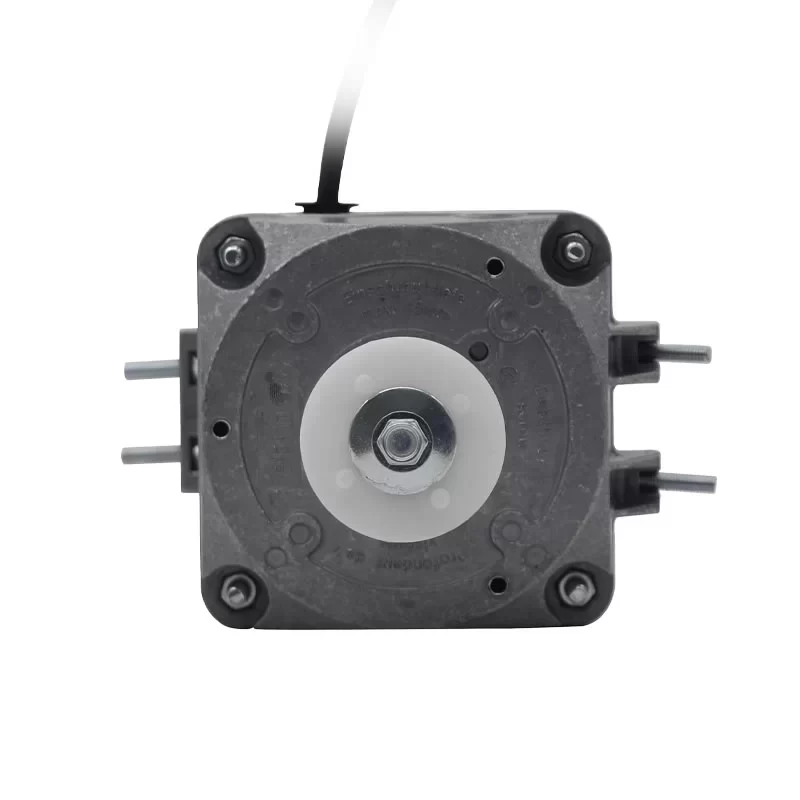

M4Q045-EF01-75 ebmpapst 230VAC Q-Motor for Refrigeration

Description

The ebmpapst M4Q045-EF01-75 is a high-torque single-phase AC shaded-pole motor from the specialized Q-motor series, engineered for heavy-duty service in commercial refrigeration and industrial ventilation. Driven by the M4Q045-EF motor core, this unit delivers a significant power output of 34 W with a nominal input of 110 W at 50 Hz, providing the necessary torque (24 Ncm) to drive large axial fan blades. The robust design features a die-cast aluminum bearing shield and maintenance-free calotte bearings, ensuring stable S1 continuous operation even in low-temperature environments down to -30 °C. For enhanced safety, the motor is equipped with an internally connected thermal overload protector (TOP) and carries a Class B insulation rating. With its versatile mounting capabilities and high starting torque, the M4Q045-EF01-75 is the definitive solution for demanding evaporator and condenser applications in the global refrigeration industry.

M4Q045-EF01-75 Fan Parameters
Model Number: M4Q045-EF01-75
Motor Number: M4Q045-EF
Manufacturer: ebmpapst
Series: Q-Motor Series
Type: AC Shaded-pole Motor
Fan Size: 45 mm
Weight: 2.3 kg
Bearing Type: Calotte bearing
Nominal Voltage: 230 VAC
Voltage Range: 220 – 240 VAC
Phase: 1~
Frequency: 50 / 60 Hz
Power Consumption: 110 W (@ 50 Hz) / 100 W (@ 60 Hz)
Power Output: 34 W
Nominal Current: 0.75 A (@ 50 Hz) / 0.65 A (@ 60 Hz)
Starting Current: 1.2 A (@ 50 Hz) / 0.95 A (@ 60 Hz)
Speed: 1300 RPM (@ 50 Hz) / 1550 RPM (@ 60 Hz)
Rated Torque: 24 Ncm (@ 50 Hz) / 20 Ncm (@ 60 Hz)
Starting Torque: 11 Ncm (@ 50 Hz) / 7.5 Ncm (@ 60 Hz)
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Motor Design: Shaded-pole motor
Motor Protection: Thermal overload protector (TOP) internally connected
Insulation Class: Class B
Electrical Hookup: Lateral cable
Number of Blades: N/A (Motor only)
Direction of Rotation: Counterclockwise, viewed toward rotor
Bearing Shield Material: Die-cast aluminum
Installation Position: Any, preferably horizontal
Condensation Drainage: None
Mode: S1
Touch Current: < 0.75 mA
Degree of Protection: IP20
Protection Class: I
Operating Temperature: -30 – +40 °C
Standard Compliance: EN 60335-1, CE
Approval Agency: VDE

Application
The ebmpapst M4Q045-EF01-75 motor is primarily utilized in commercial refrigeration condensers, cold storage evaporators, bottle coolers, industrial cooling units, and small-scale exhaust systems.
