Description

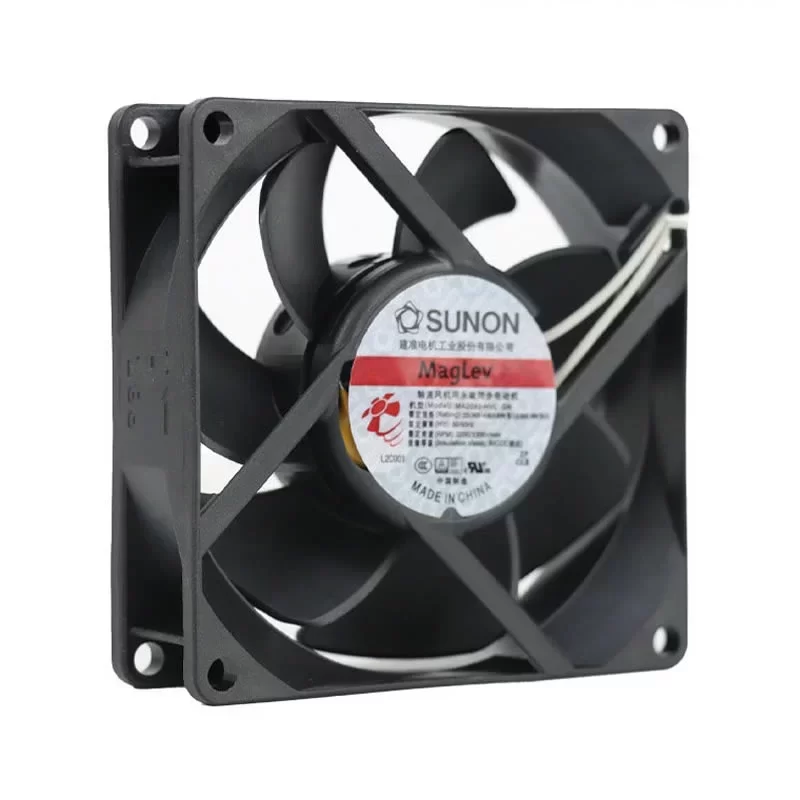

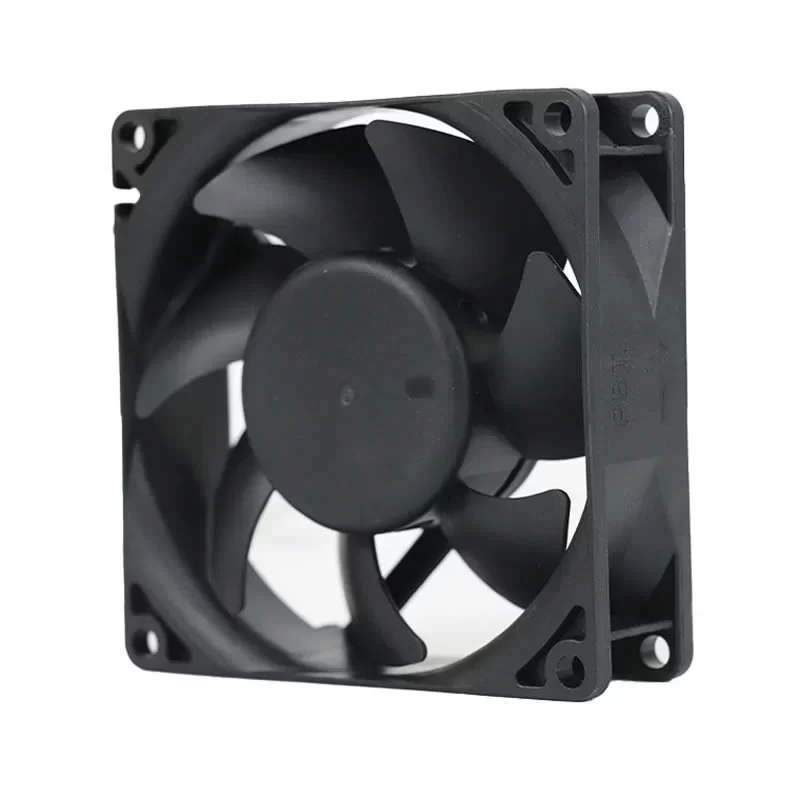

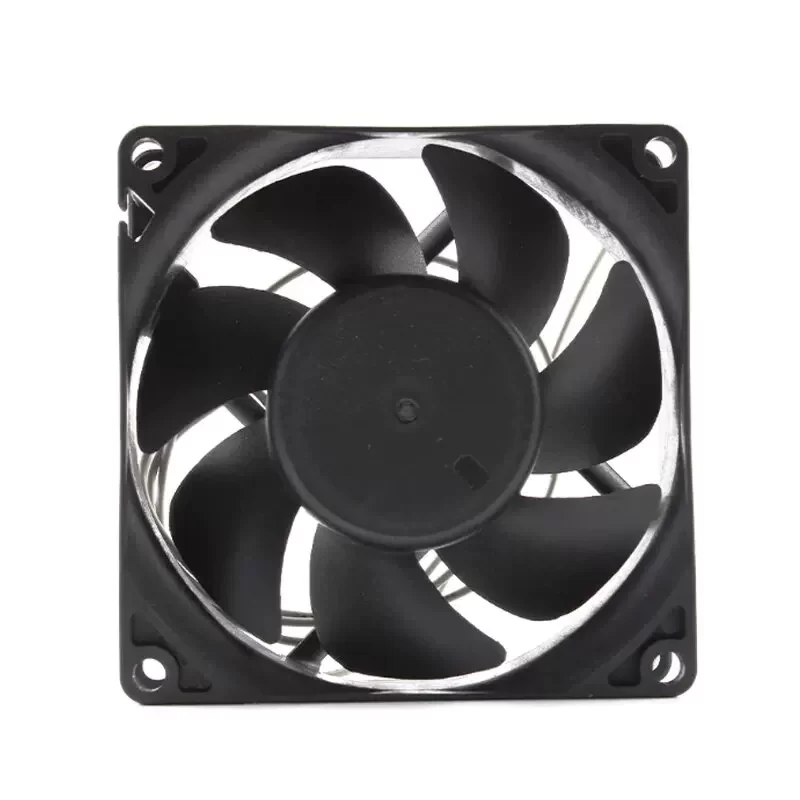

The SUNON MA2082-HVL.GN is a high-performance 230VAC single-phase AC Axial Fan with overall Dimensions of 80 x 80 x 25 mm and an Impeller Size of 76 mm. Specifically engineered for mission-critical cooling in high-density power supply units and medical instrumentation, this 80 mm unit is driven by a high-efficiency motor with maintenance-free ball bearings. Operating on a 230 VAC supply (voltage range 220 – 240 VAC), it delivers a Power Consumption of 4.6 W and a Current Draw of 0.215 A (50 Hz) / 0.225 A (60 Hz) at a rated speed of 3200 / 3300 RPM. This unit provides a Max. Air Flow of 41.0 CFM (69.7 m³/h / 1.16 m³/min) and a Max. Static Pressure of 3.81 mmH₂O (37.35 Pa / 0.15 inAq). Featuring a rugged die-cast aluminum housing and a thermoplastic PBT impeller, it ensures superior thermal management with a weight of 102.2 g and an extended service life in continuous S1 environments at the end.
MA2082-HVL.GN Fan Parameters
Model Number: MA2082-HVL.GN
Manufacturer: SUNON
Type: AC Axial Fan
Impeller Size: 76 mm
Dimensions: 80 x 80 x 25 mm
Weight: 102.2 g
Bearing Type: Ball bearing
Nominal Voltage: 230 / 230 VAC
Voltage Range: 220 – 240 VAC
Phase: 1~
Frequency: 50 / 60 Hz
Current Draw: 0.215 / 0.225 A
Power Consumption: 4.6 / 4.6 W
Rated Speed: 3200 / 3300 RPM
Max. Air Flow: 40.0 / 41.0 CFM (68.0 / 69.7 m³/h / 1.13 / 1.16 m³/min)
Max. Static Pressure: 3.56 / 3.81 mmH₂O (34.86 / 37.35 Pa / 0.14 / 0.15 inAq)
Noise Level: 32 / 33 dB(A)
Number of Blades: 7
Impeller Material: Thermoplastic PBT (UL 94V-0)
Housing Material: Die-cast aluminum alloy
Direction of Rotation: Counter-clockwise (viewed toward rotor)
Direction of Airflow: Exhaust over struts
Insulation Class: “B”
Degree of Protection: IP20
Motor Protection: Impedance protected
Connection: 2-Wire Lead Wires (AWG 24)
Mode: S1
Protection Class: I
Operating Temperature: -10 to +70 °C
Standard Compliance: UL; CE; TUV; RoHS
Application
The SUNON MA2082-HVL.GN fan is the primary cooling component for high-density server power supplies, communication modules, and precision medical equipment requiring reliable 230V AC axial airflow in a lightweight 80mm aluminum form factor.
