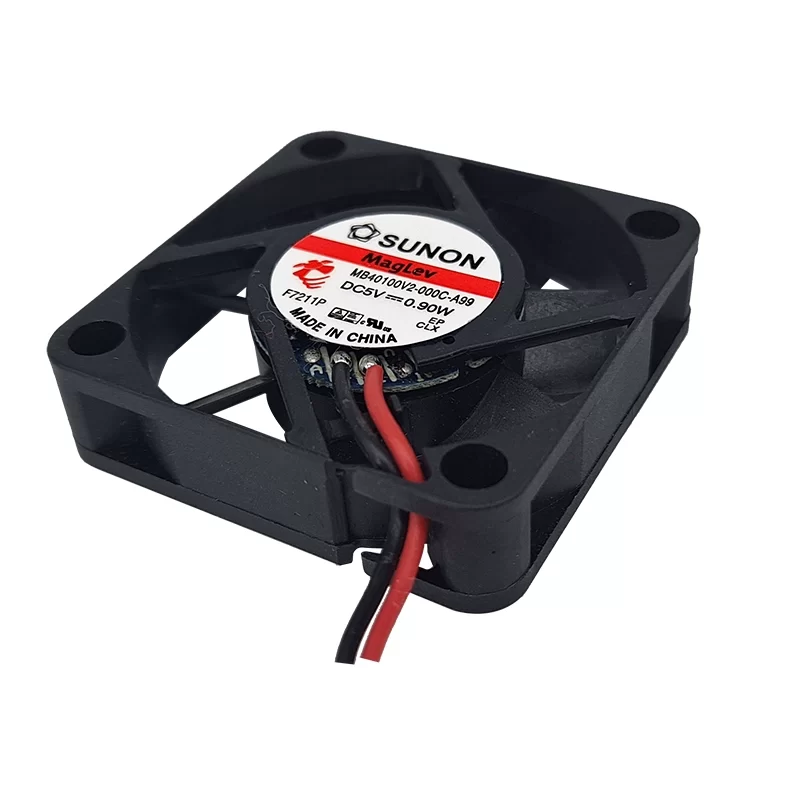

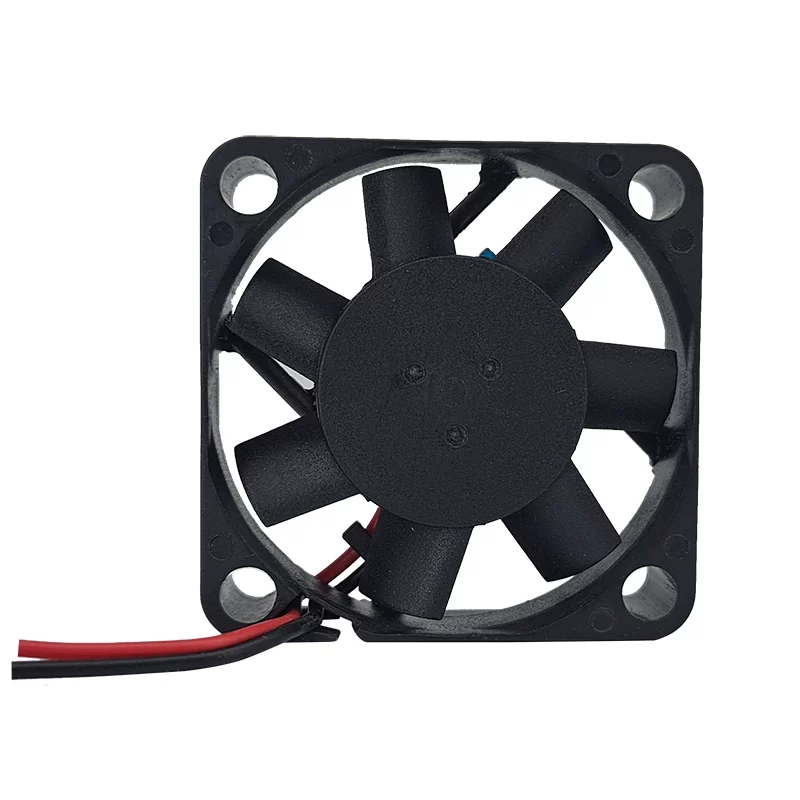

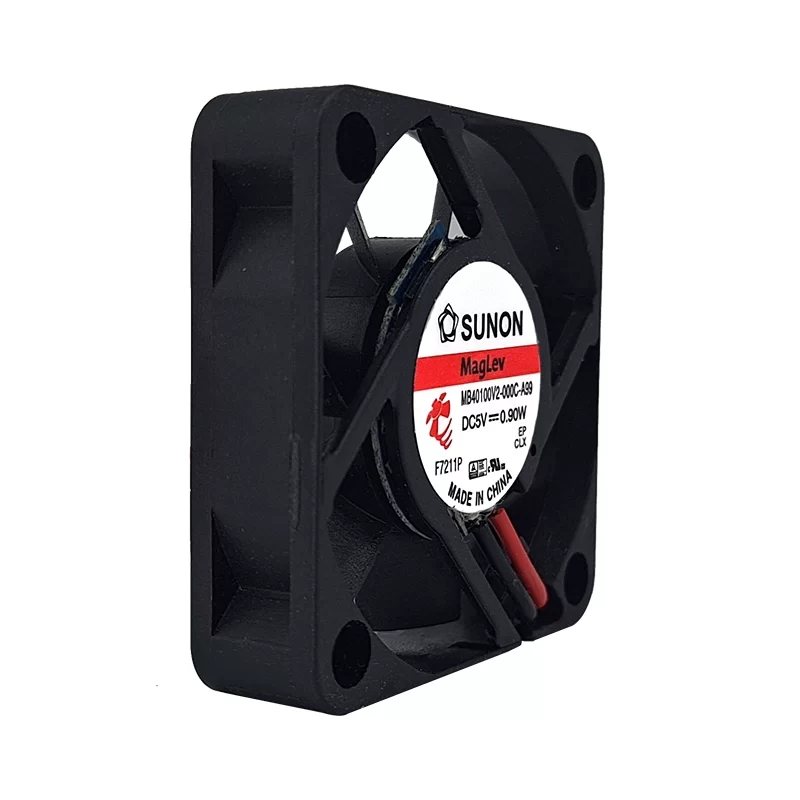

MB40100V2-000C-A99 SUNON DC5V 0.9W axial fan

Description

The SUNON MB40100V2-000C-A99 is a compact DC axial fan measuring 40x40x10mm. It operates on 5 VDC, drawing 0.18 A of current, with a power consumption of 0.9 W. This fan achieves a speed of 5800 RPM, providing an airflow of 7 CFM (approximately 11.89 m³/h). Its noise level is 27 dB(A). It features a precise Vapo bearing system (MagLev technology) for reliable, quiet operation and extended life. It connects via 2 wire leads. The frame and fan blade materials are thermoplastic PBT with a UL94V-0 flammability rating. The fan also includes automatic restart and polarity protection. It is commonly used for cooling compact electronic components, chipsets, and small enclosures that require 5V DC cooling.

MB40100V2-000C-A99 Fan Parameters
Model: MB40100V2-000C-A99
Manufacturer: SUNON
Type: DC Axial Fan
Dimensions: 40x40x10 mm
Rated Voltage: 5 VDC
Operating Voltage Range: 2.5 to 6 VDC
Rated Current: 0.18 A
Power Consumption: 0.9 W
Speed: 5800 RPM
Speed Tolerance: ±15%
Airflow: 7 CFM (11.89 m³/h)
Static Pressure: 0.11 inH2O (27.4 Pa)
Noise Level: 27 dB(A)
Bearing Type: Vapo Bearing (MagLev technology)
Termination: 2 Wire Leads (typically 250mm or 300mm length)
Frame Material: Thermoplastic PBT
Fan Blade Material: Thermoplastic PBT
Flammability Rating: UL94V-0
Insulation Class: A
Insulation Resistance: 10 MΩ minimum (at 500 VDC)
Dielectric Strength: 500 VAC for 1 minute
Operating Temperature: -10 to 70°C
Storage Temperature: -40 to 70°C
Expected Life: 50,000 hours (at 40°C, 65% humidity)
Motor Protection: Automatic Restart, Polarity Protection
Weight: 16 g
Application: Compact electronic components, chipsets, small enclosures, 5VDC systems.
