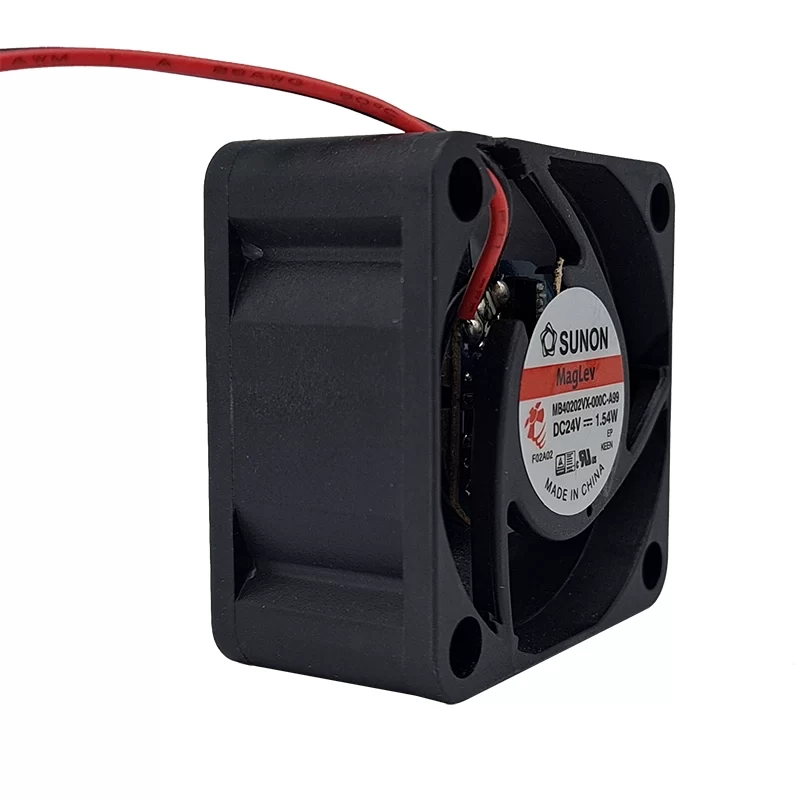

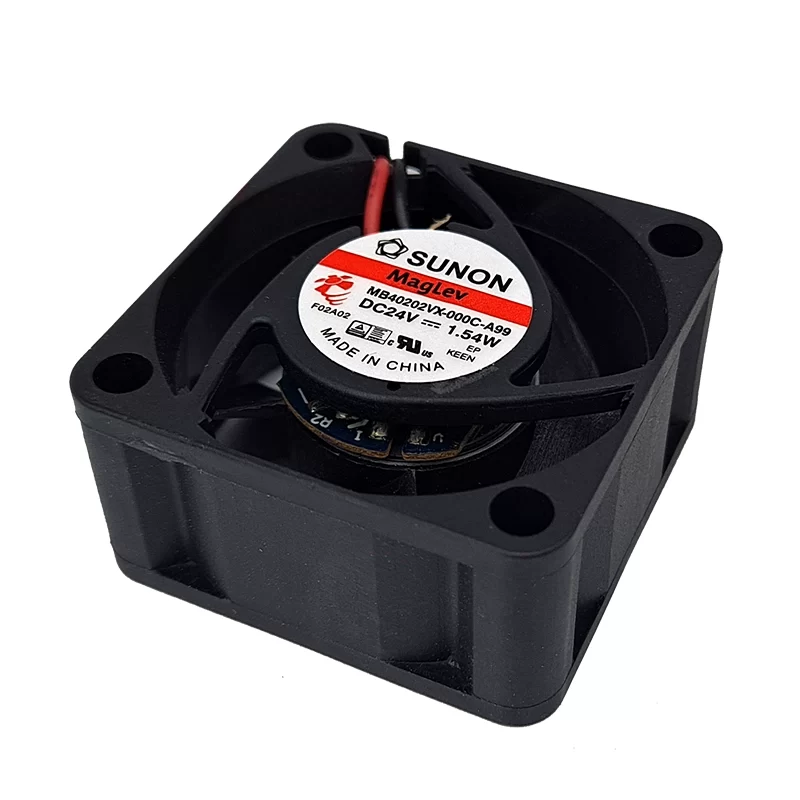

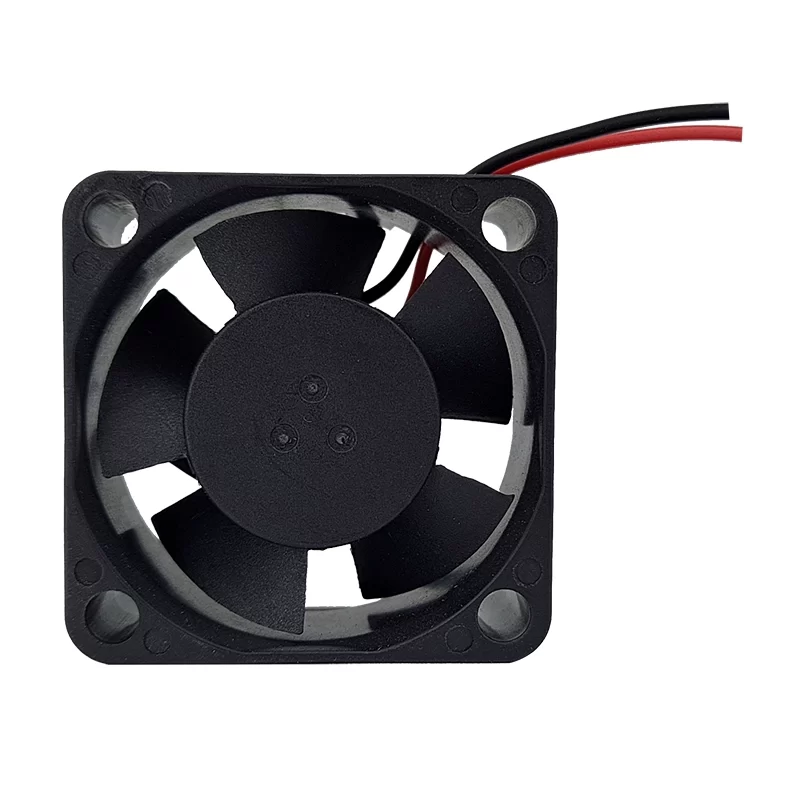

MB40202VX-000C-A99 SUNON DC24V 1.54W axial fan

Description

The SUNON MB40202VX-000C-A99 is a compact DC axial fan measuring 40x40x20mm. It operates on 24 VDC, drawing 64 mA of current, with a power consumption of 1.54 W. This fan achieves a high speed of 8200 RPM, providing an airflow of 10.8 CFM (approximately 18.35 m³/h). Its noise level is 27.5 dB(A). It features a precise Vapo bearing system (MagLev technology) for reliable, quiet operation and extended life. It connects via 2 wire leads. The frame and impeller materials are thermoplastic (PBT) with a UL94V-0 flammability rating. The fan also includes automatic restart capability and is often noted for its dust-resistant (DR) MagLev motor design, which eliminates friction between the shaft and bearing. It is commonly used for cooling electronic components, small servers, and other devices in confined spaces.

MB40202VX-000C-A99 Fan Parameters
Model: MB40202VX-000C-A99
Manufacturer: SUNON
Type: DC Axial Fan
Dimensions: 40x40x20 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 8 to 27.6 VDC
Rated Current: 64 mA
Power Consumption: 1.54 W
Speed: 8200 RPM
Speed Tolerance: ±15%
Airflow: 10.8 CFM (18.35 m³/h)
Static Pressure: 0.27 inH2O (6.86 mmH2O)
Noise Level: 27.5 dB(A)
Bearing Type: Vapo Bearing (MagLev technology)
Termination: 2 Wire Leads (typically 300mm length)
Frame Material: Thermoplastic (PBT)
Impeller Material: Thermoplastic (PBT)
Flammability Rating: UL94V-0
Insulation Class: A
Insulation Resistance: 500 MΩ minimum (at 500 VDC)
Dielectric Strength: 500 VAC for 1 minute
Operating Temperature: -10 to 70°C
Storage Temperature: -40 to 70°C
Expected Life: 70,000 hours (at 40°C)
Motor Protection: Automatic Restart, Brushless DC motor
Weight: 31 g
Application: Electronic components, small servers, general cooling in confined spaces.
