Description

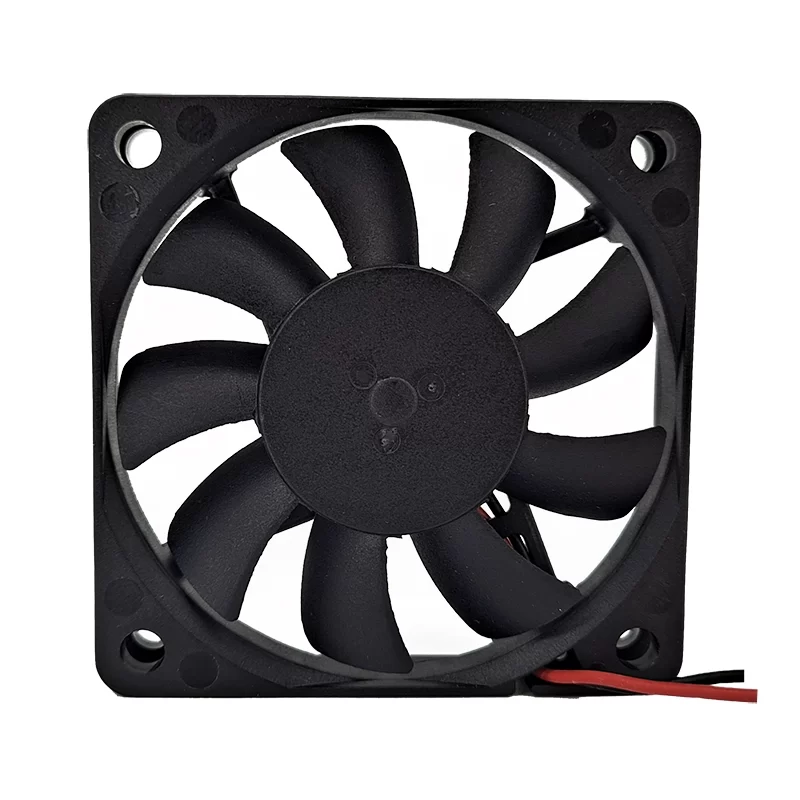

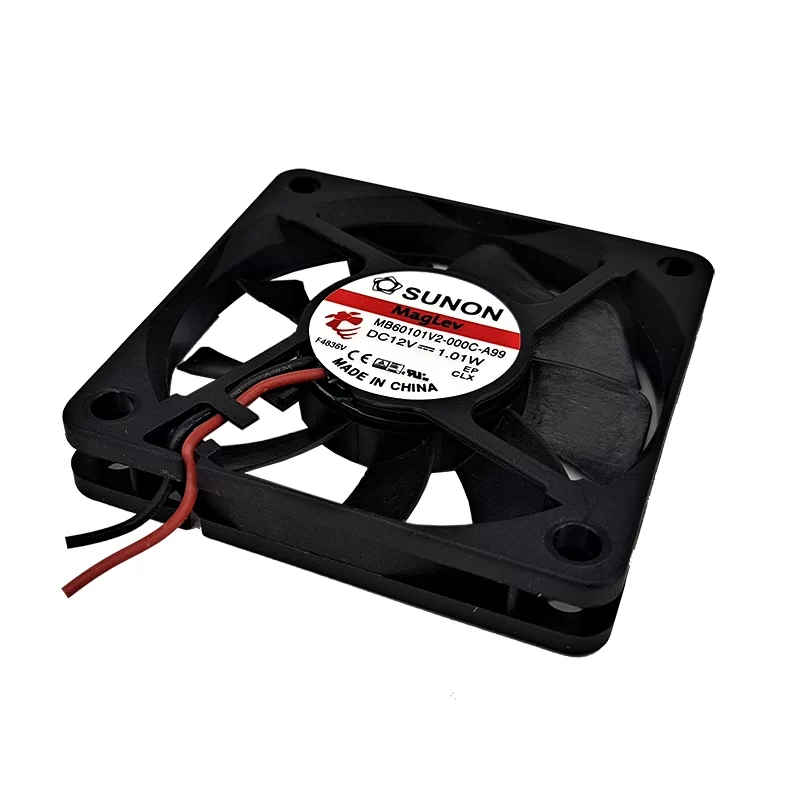

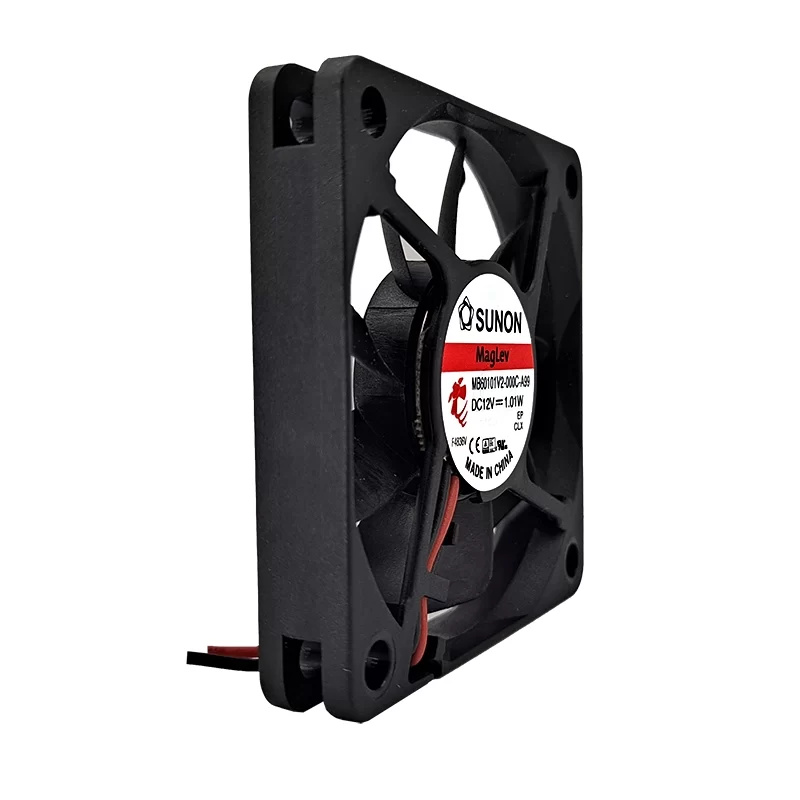

The SUNON MB60101V2-000C-A99 is a compact DC axial fan measuring 60x60x10mm. It operates on 12 VDC, drawing 84 mA of current, with a power consumption of 1.01 W. This fan achieves a speed of 3500 RPM, providing an airflow of 23 m³/h (approximately 13.6 CFM). Designed for quiet operation, its noise level is 25 dB(A). It features a Vapo bearing system (MagLev technology) for reliable performance and extended life, and connects via 2 wire leads. The housing and impeller are made of thermoplastic (PBT) with a UL94V-0 flammability rating. It includes an auto-restart function for motor protection. This fan is commonly used in various electronic devices and applications where low noise and efficient cooling are essential.
MB60101V2-000C-A99 Fan Parameters
Model: MB60101V2-000C-A99
Manufacturer: SUNON
Type: DC Axial Fan
Dimensions: 60x60x10 mm
Rated Voltage: 12 VDC
Operating Voltage: 6 to 13.8 VDC
Rated Current: 84 mA
Power Consumption: 1.01 W
Speed: 3500 RPM
Speed Tolerance: ±15%
Airflow: 23 m³/h (13.6 CFM)
Static Pressure: 2.5 mmH2O (0.1 inH2O)
Noise Level: 25 dB(A)
Bearing Type: Vapo Bearing (MagLev technology)
Termination: 2 Wire Leads
Housing Material: Thermoplastic (PBT)
Impeller Material: Thermoplastic (PBT)
Flammability Rating: UL94V-0
Insulation Class: E
Operating Temperature: -10 to 70°C
Expected Life: 70,000 hours (at 40°C)
Motor Protection: Auto Restart
Weight: 29 g
Application: Electronic devices, compact cooling solutions.
