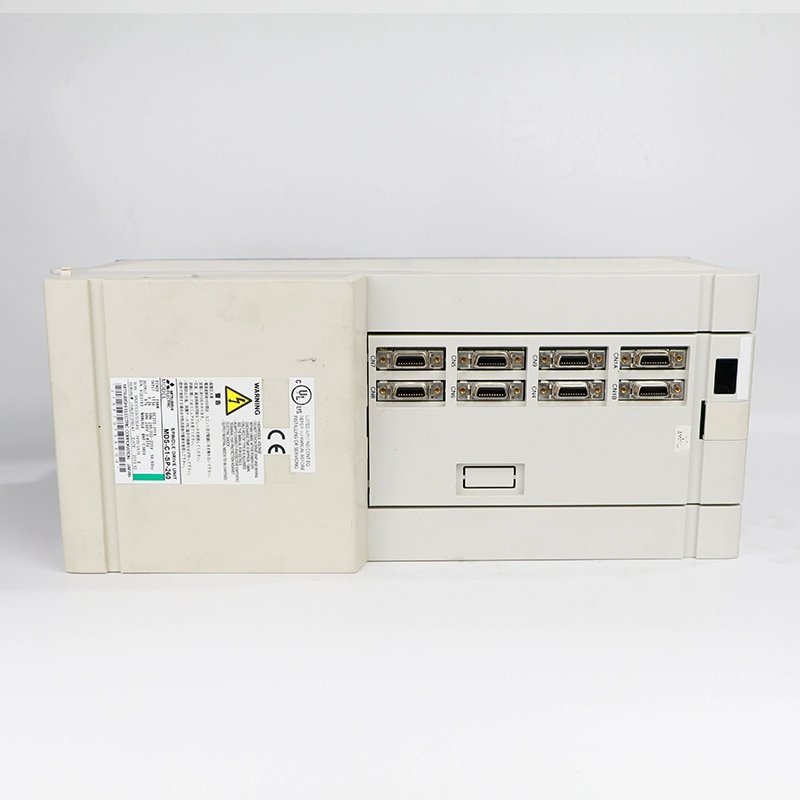

MDS-C1-SP-260 Mitsubishi servo drive

Description

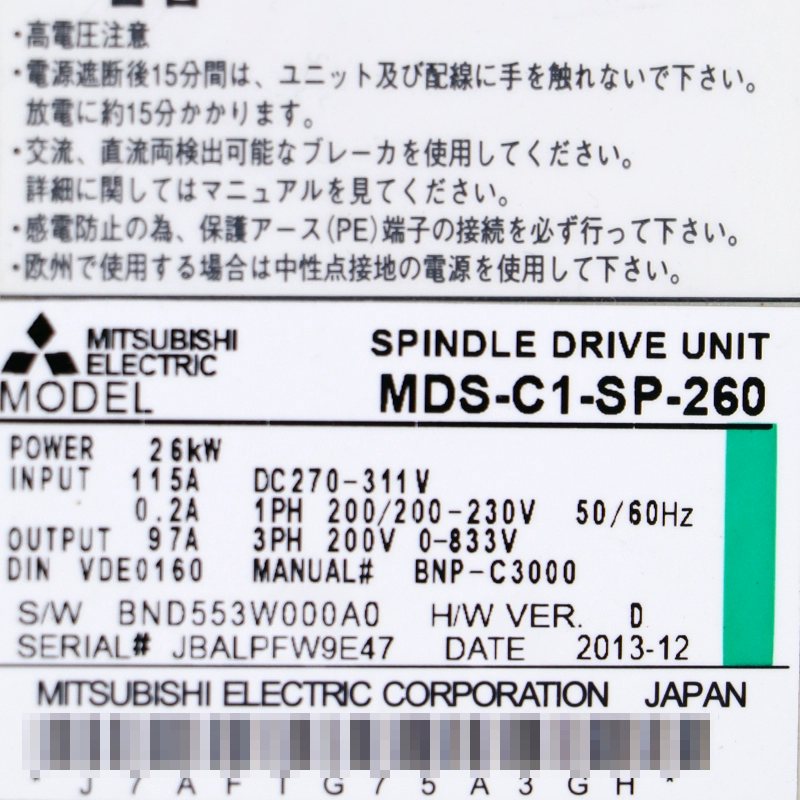

The Mitsubishi Electric MDS-C1-SP-260 is a high-performance spindle drive unit that is part of the MDS-C1 series. It is designed for spindle control applications in Computer Numerical Control (CNC) systems. With its compact design and precise control capabilities, this drive unit is widely used in various automation equipment and machine tools.

Product Series: MDS-C1 Series
Product Type: Spindle Drive Unit
Manufacturer: Mitsubishi Electric
Rated Output Power: 22 kW
Input Voltage Range: 270 V DC to 311 V DC
Rated Input Current: 115 A or 97 A
Control Power Voltage: 200 VAC to 230 VAC
Control Method: Sine wave PWM control method, Current control method
Braking Method: Regenerative braking
External Analog Output: 0 to +10V, 2 channels (Used for speed meter output, load meter output, and data for various adjustments)
Protective Structure: IP20 overall / Terminal block TE1 is IP00

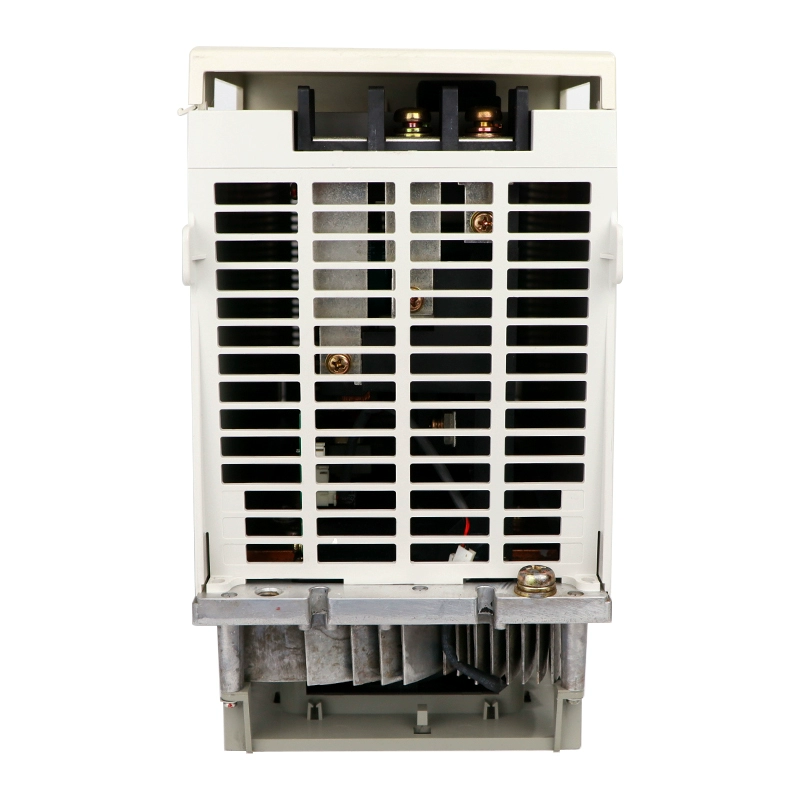

Cooling Method: Forced air cooling (Fin cooling)
Operating Ambient Temperature: 0 °C to +55 °C (without freezing)
Storage Ambient Temperature: -15 °C to +70 °C (without freezing)
Operating Ambient Humidity: 90% RH or less (without condensation)
Storage Ambient Humidity: 90% RH or less (without condensation)
Altitude: Operation/Storage: 1000 meters or less above sea level
Noise: Less than 55 dB
