Description

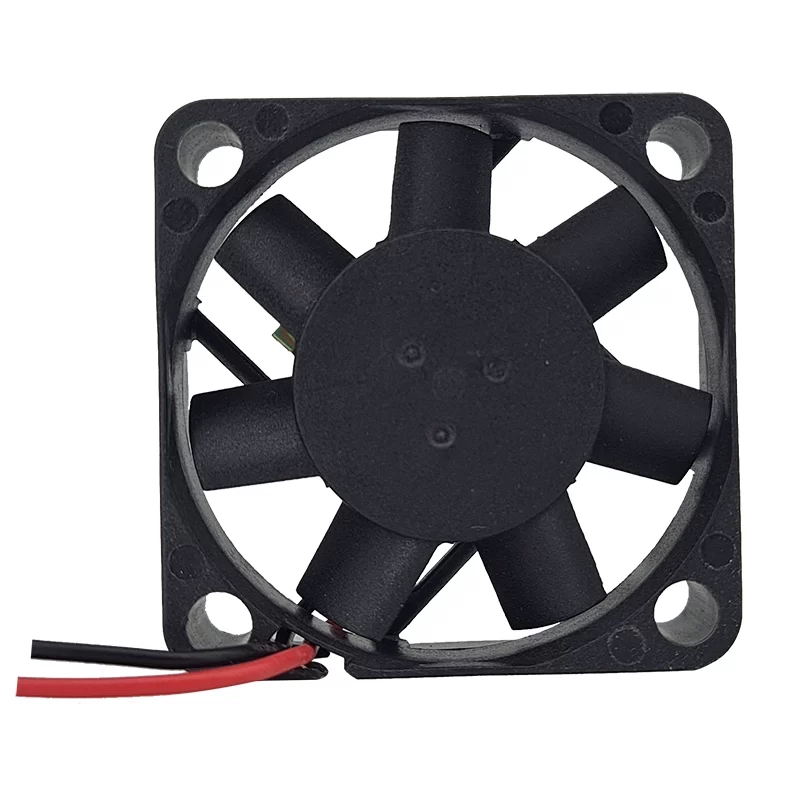

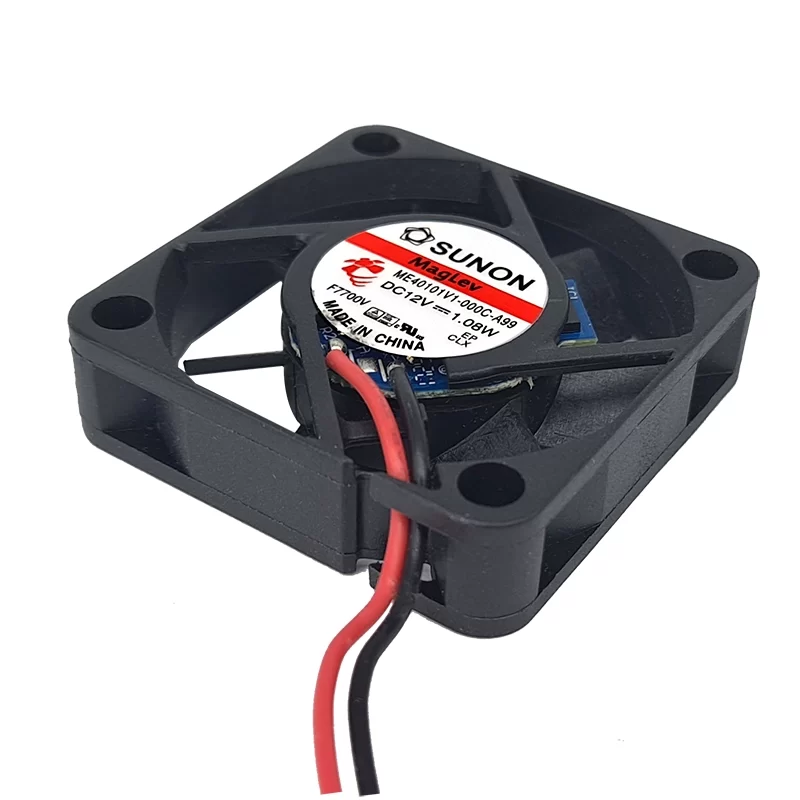

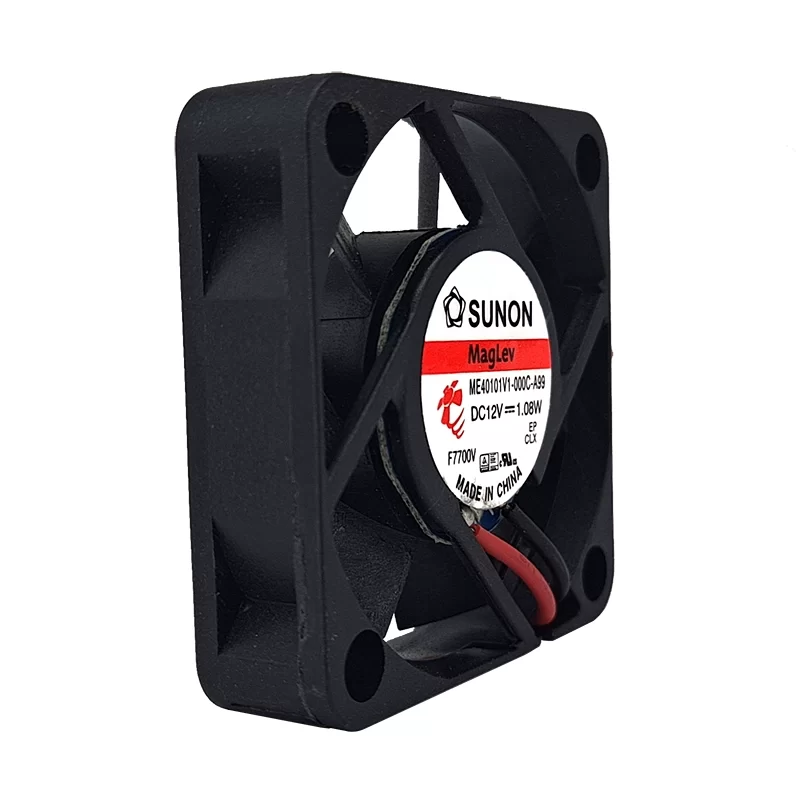

The SUNON ME40101V1-000C-A99 is a compact DC axial fan measuring 40x40x10mm. It operates on 12 VDC, drawing 0.09 A of current, with a power consumption of 1.08 W. This fan achieves a speed of 7000 RPM, providing an airflow of 8 CFM (approximately 13.6 m³/h). Its noise level is 32 dB(A). It features a precise Vapo bearing system (MagLev technology) for reliable operation, low noise, and extended life. It connects via 2 wire leads. The frame and fan blade materials are thermoplastic PBT with a UL94V-0 flammability rating. The fan also includes automatic restart and polarity protection. It is commonly used for cooling compact electronic components, chipsets, and small enclosures requiring 12V DC cooling.
ME40101V1-000C-A99 Fan Parameters
Model: ME40101V1-000C-A99
Manufacturer: SUNON
Type: DC Axial Fan
Dimensions: 40x40x10 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 4.5 to 13.8 VDC
Rated Current: 0.09 A
Power Consumption: 1.08 W
Speed: 7000 RPM
Speed Tolerance: ±10% (on rated speed)
Airflow: 8 CFM (13.6 m³/h)
Static Pressure: 0.19 inH2O (47.3 Pa)
Noise Level: 32 dB(A)
Bearing Type: Vapo Bearing (MagLev technology)
Termination: 2 Wire Leads
Frame Material: Thermoplastic PBT
Fan Blade Material: Thermoplastic PBT
Flammability Rating: UL94V-0
Insulation Class: A
Insulation Resistance: 10 MΩ minimum (at 500 VDC)
Dielectric Strength: 500 VAC for 1 minute
Operating Temperature: -10 to 70°C
Storage Temperature: -40 to 70°C
Expected Life: 60,000 hours (at 40°C)
Motor Protection: Automatic Restart, Polarity Protection
Weight: 13.61 g
Application: Compact electronic components, chipsets, small enclosures, 12VDC systems.
