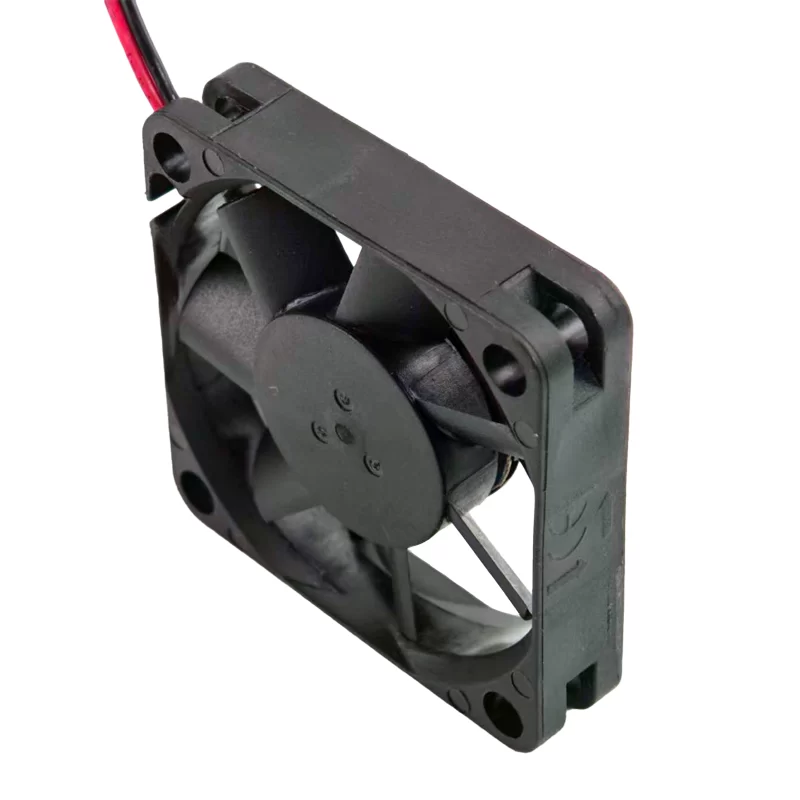

ME45101V1-000C-A99 Sunon 12V 1.32W 45mm DC Axial Fan

Description

‘
The Sunon ME45101V1-000C-A99 is a high-performance Brushless DC Axial Fan with dimensions of 45 x 45 x 10 mm. Operating at a nominal voltage of 12 VDC, this unit features a 7-blade impeller design engineered for efficient air displacement in space-constrained applications. It delivers a maximum airflow of 20.0 m³/h (11.8 CFM) at a rated speed of 6500 RPM with a power consumption of 1.32 W and a current draw of 0.11 A. With a noise profile of 32.5 dB(A) and a static pressure of 44.8 Pa (0.18 inAq), the ME45101V1-000C-A99 provides a balanced thermal management solution for compact electronic enclosures. The fan utilizes a 2-wire termination and lightweight 16 g construction, ensuring reliable cooling for modern low-profile industrial and telecommunications equipment.

ME45101V1-000C-A99 Fan Parameters
Manufacturer: Sunon
Model Number: ME45101V1-000C-A99
Type: DC Axial Fan
Motor Design: Brushless DC Motor
Number of Blades: 7
Nominal Voltage: 12 VDC
Dimensions: 45 x 45 x 10 mm
Impeller Size: 41 mm
Weight: 16 g

[Electrical Data]
Rated Speed: 6500 RPM
Rated Current: 0.11 A
Power Consumption: 1.32 W
Termination: 2 Wire Leads

[Performance & Acoustics]
Air Flow: 20.0 m³/h (11.8 CFM)
Max. Static Pressure: 44.8 Pa (0.18 inAq)
Noise Level: 32.5 dB(A)

[Materials & Construction]
Housing Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Bearing Type: Vapo Bearing (MagLev System)
Airflow Direction: Exhaust over struts
Direction of Rotation: Counterclockwise, viewed toward rotor

[Reliability & Protection]
Service Life: 60000 h at 40 °C
Min. Ambient Temperature: -10 °C
Max. Ambient Temperature: 70 °C
Motor Protection: Auto Restart; Polarity Protection
Approval: UL, TUV, CE

Application
The Sunon ME45101V1-000C-A99 Brushless DC Fan is an ideal thermal management solution for micro-electronics and compact telecommunications equipment requiring low-profile components. Its 10 mm thickness and 45 mm frame size allow it to fit into slim enclosures where traditional fans cannot. Utilizing the high-performance 6500 RPM motor and 7-blade design, it provides superior airflow for noise-sensitive environments like desktop office equipment or portable diagnostic tools. With a maximum airflow of 20.0 m³/h (11.8 CFM) and a durable PBT construction, this fan ensures long-term maintenance-free operation for modern low-power electronic systems and mission-critical 12V DC infrastructures.
